Transmission Position Sensor/Switch: Diagrams

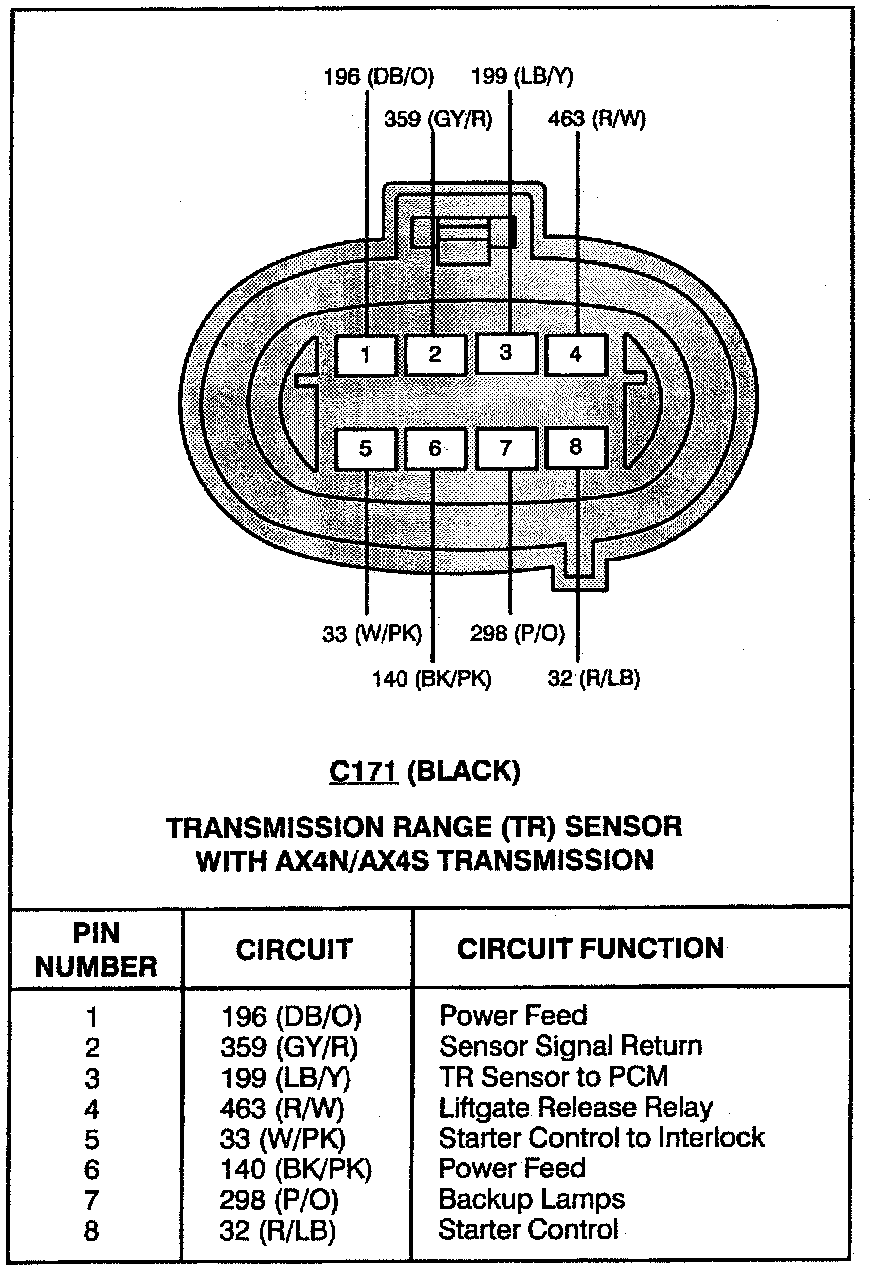

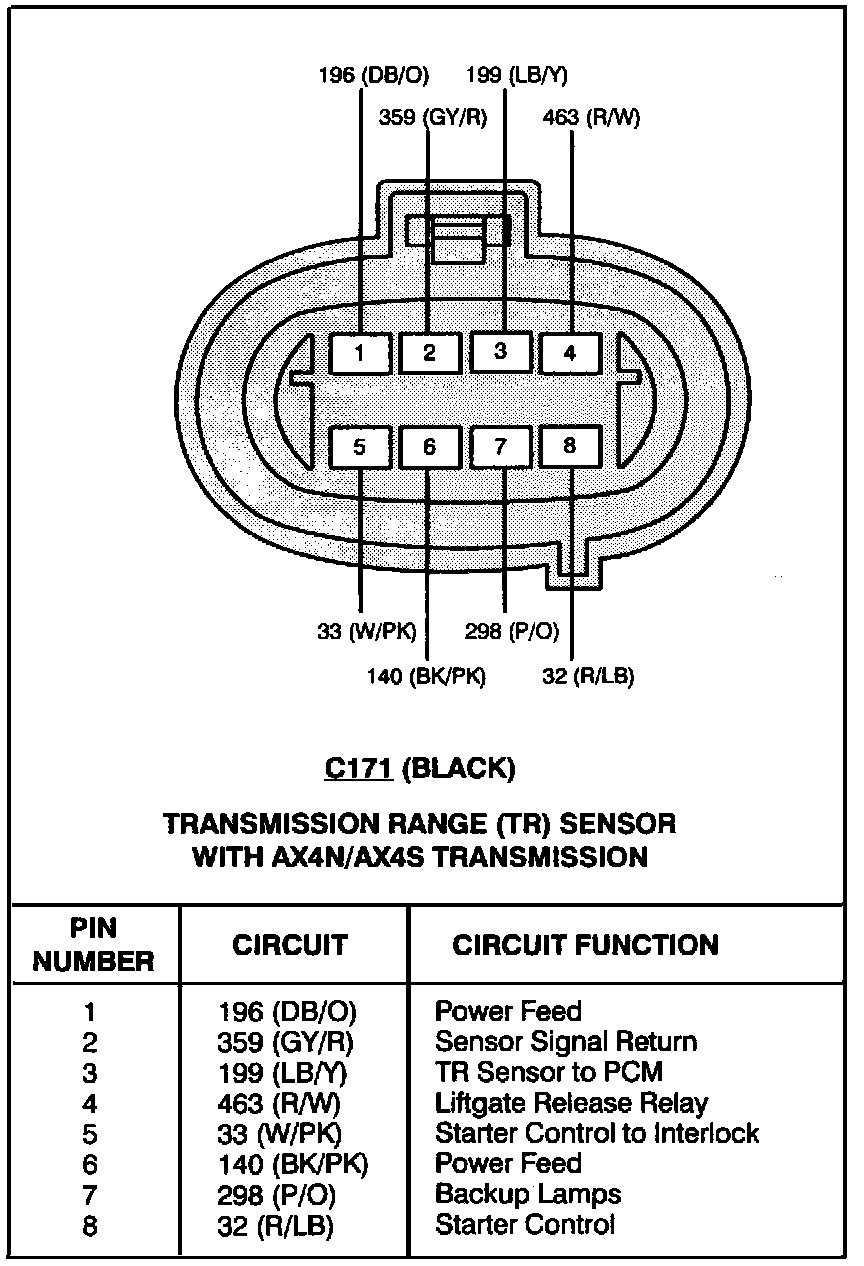

Transmission Range Sensor (With AX4N/AX4S Transmission):

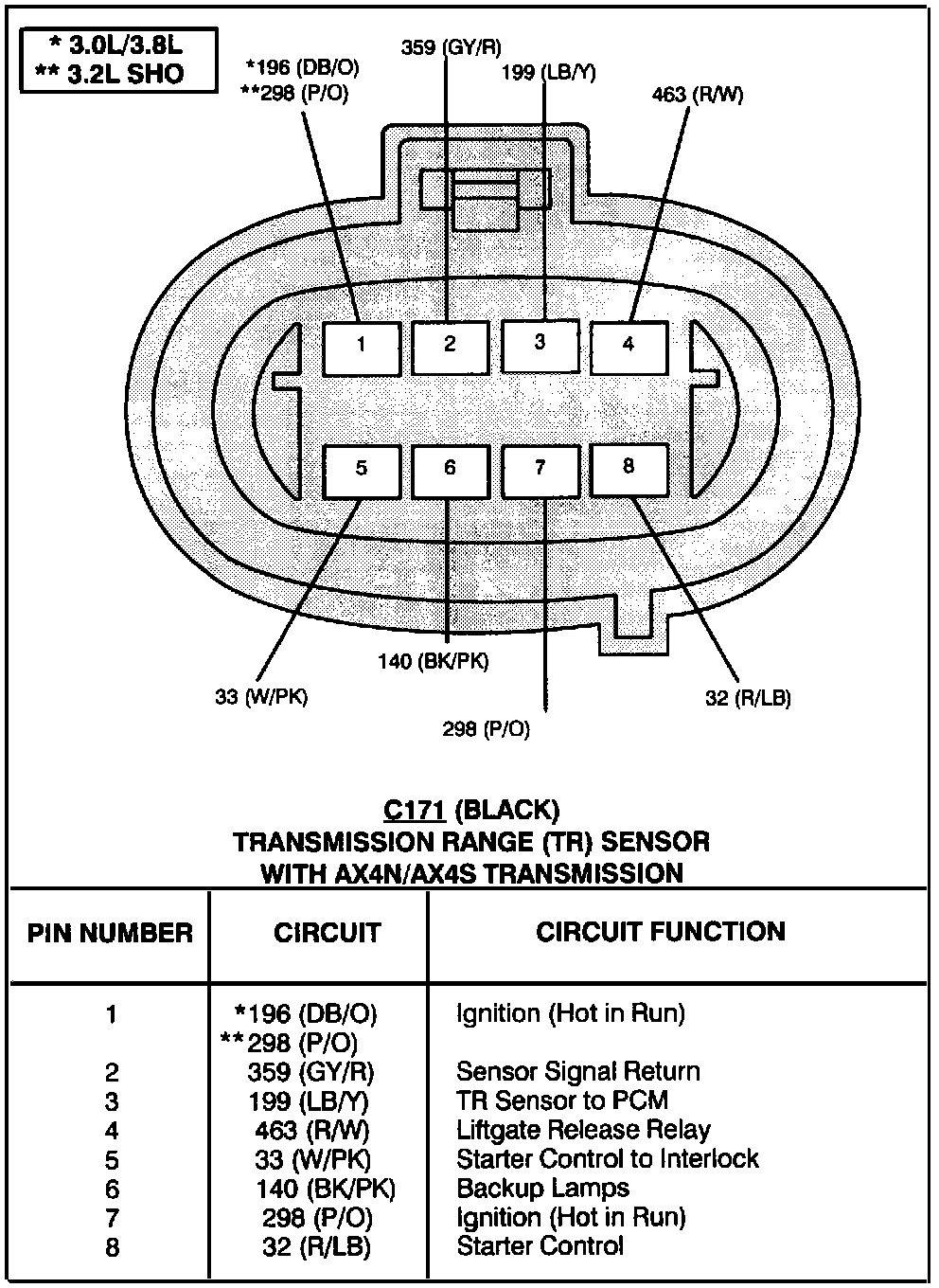

Transmission Range Sensor (With AX4N/AX4S Transmission):

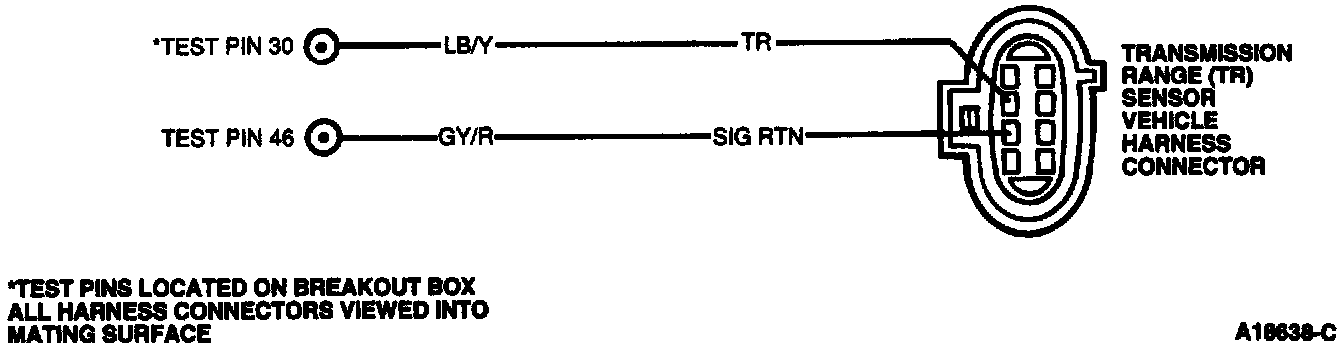

Connector View:



Connector View:
