Keyless Entry Module: Service and Repair

Control Processor, Electronic Door Lock


Removal and Installation



Sedan

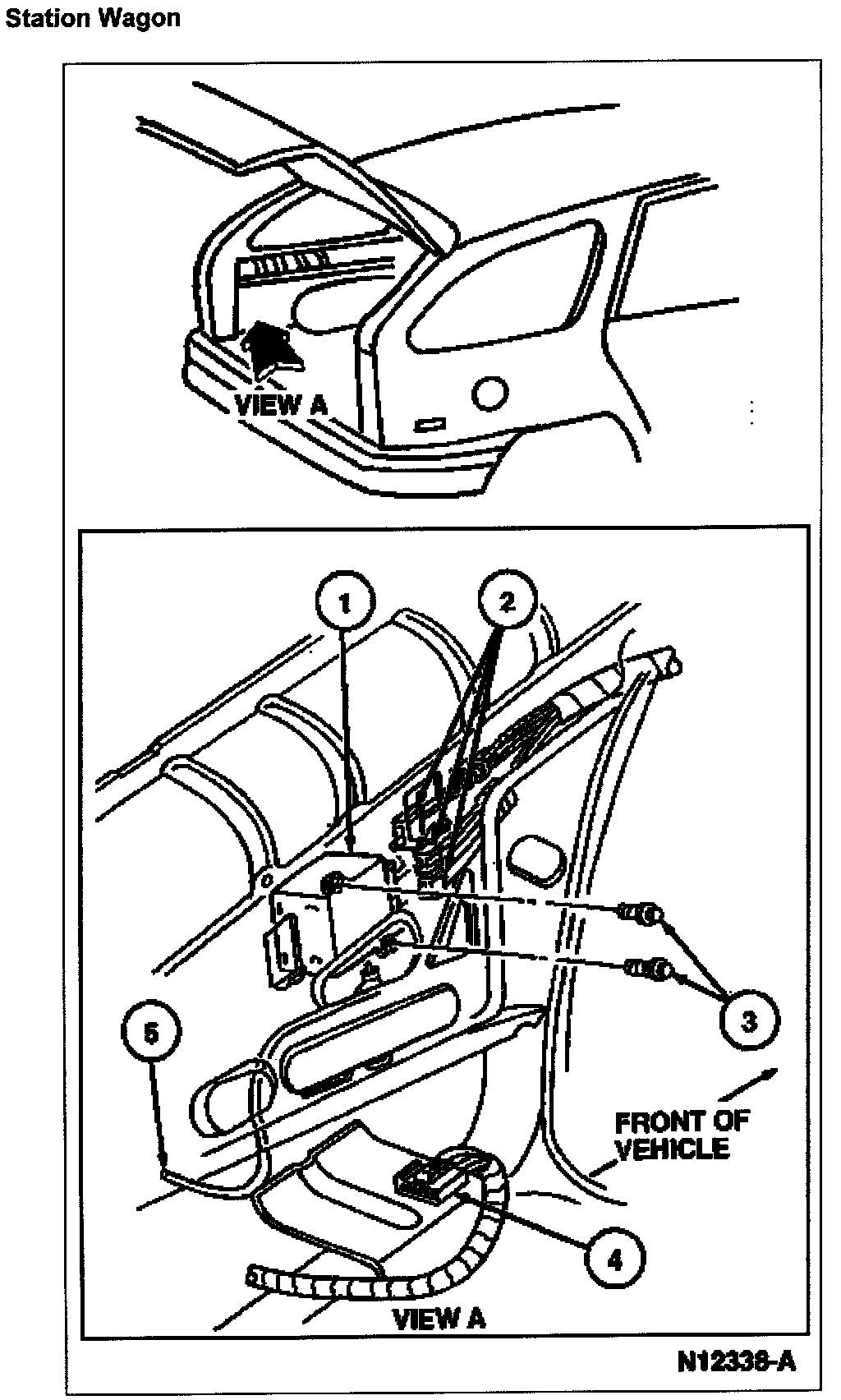

Wagon

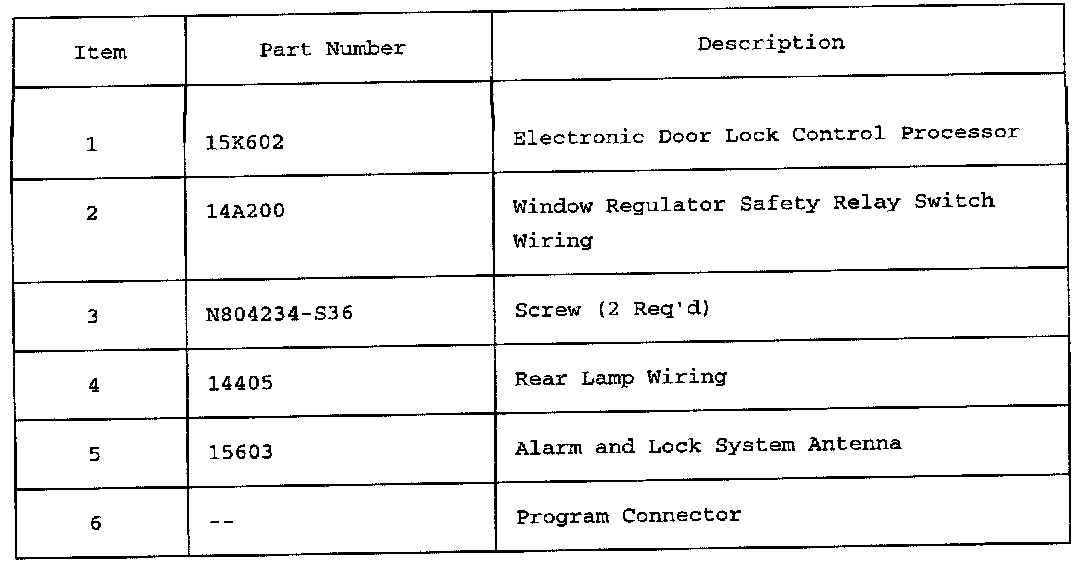

1. Access electronic door lock control processor. Refer to illustrations.

2. Remove retaining screws and lower electronic door lock control processor.

3. Disconnect three connectors and alarm and lock system antenna connector. Remove electronic door lock control processor.

4. To install, reverse Removal procedure.
