Connector Locations

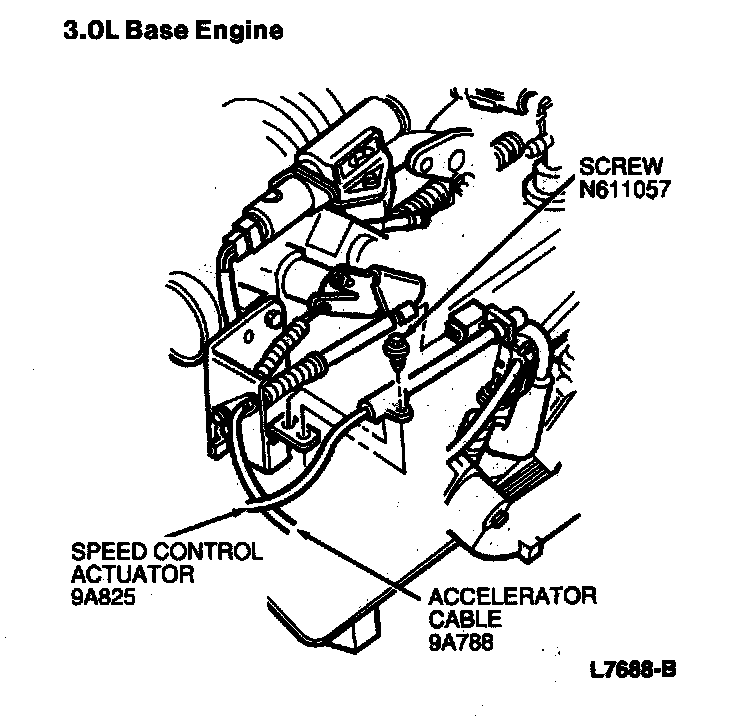

Actuator Cable

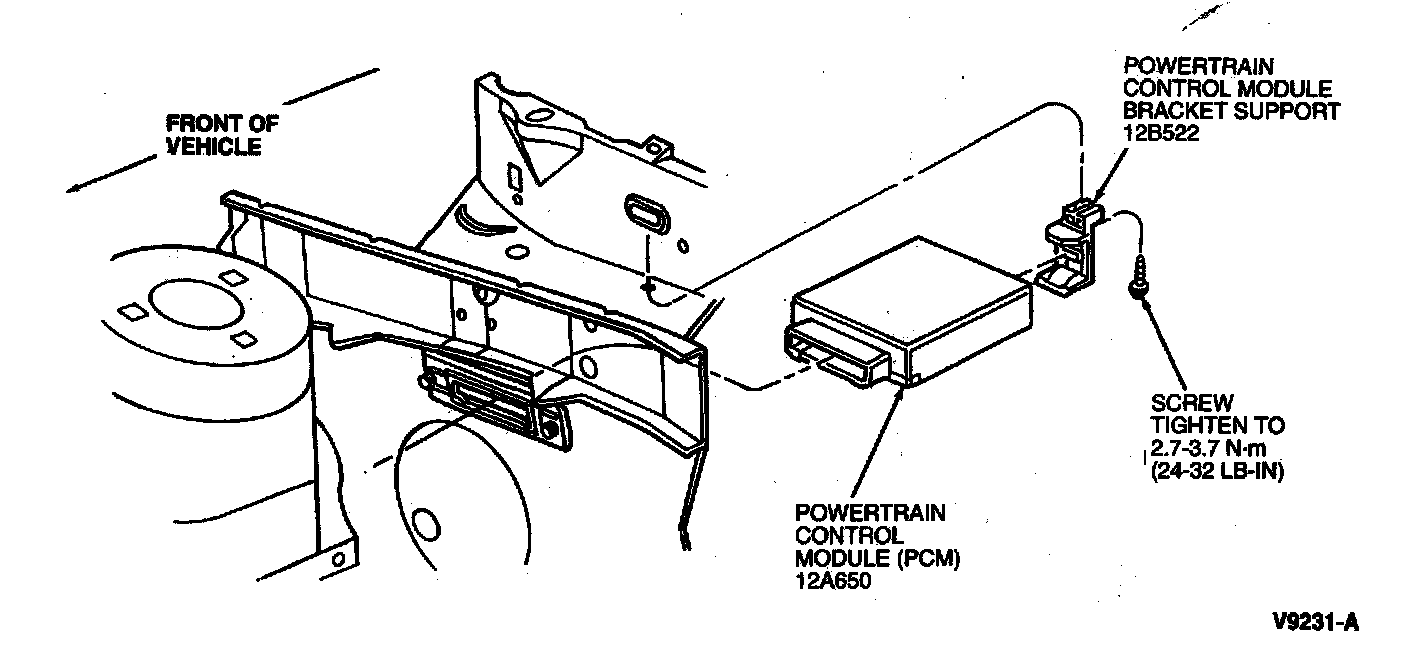

Powertrain control module:

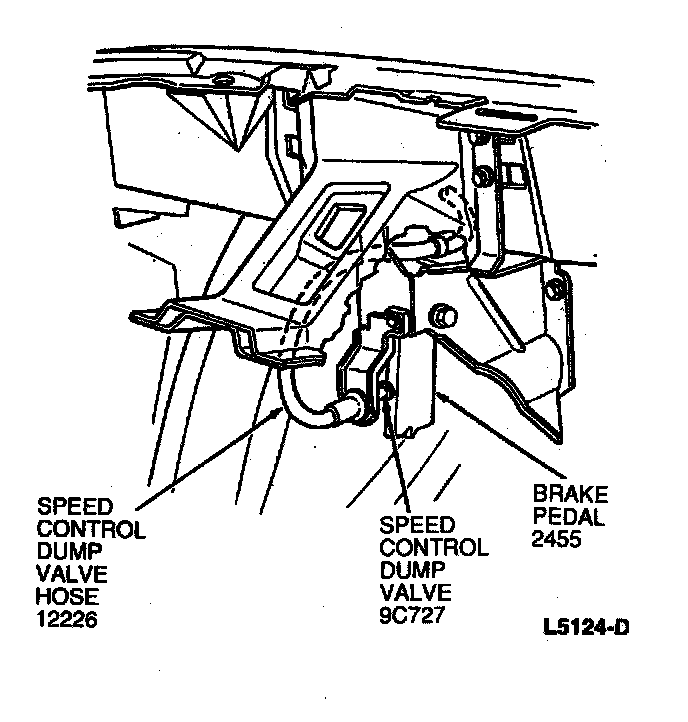

Speed Control Dump Valve

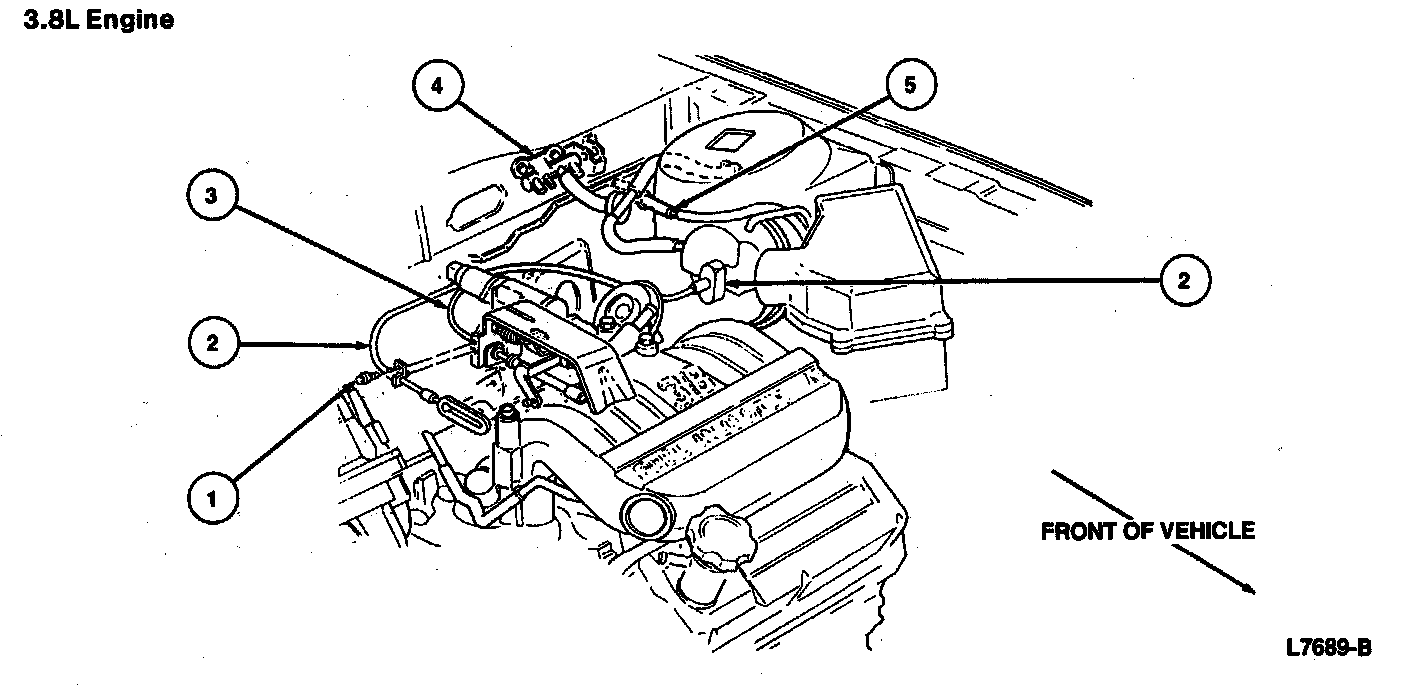

Speed Control Amplifier:
