Home >> Ford >> 1995 >> Taurus V6-232 3.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID >> Engine Compartment Fuse Box.

April 5, 2026: LEMON Manuals is launched! Read the announcement.

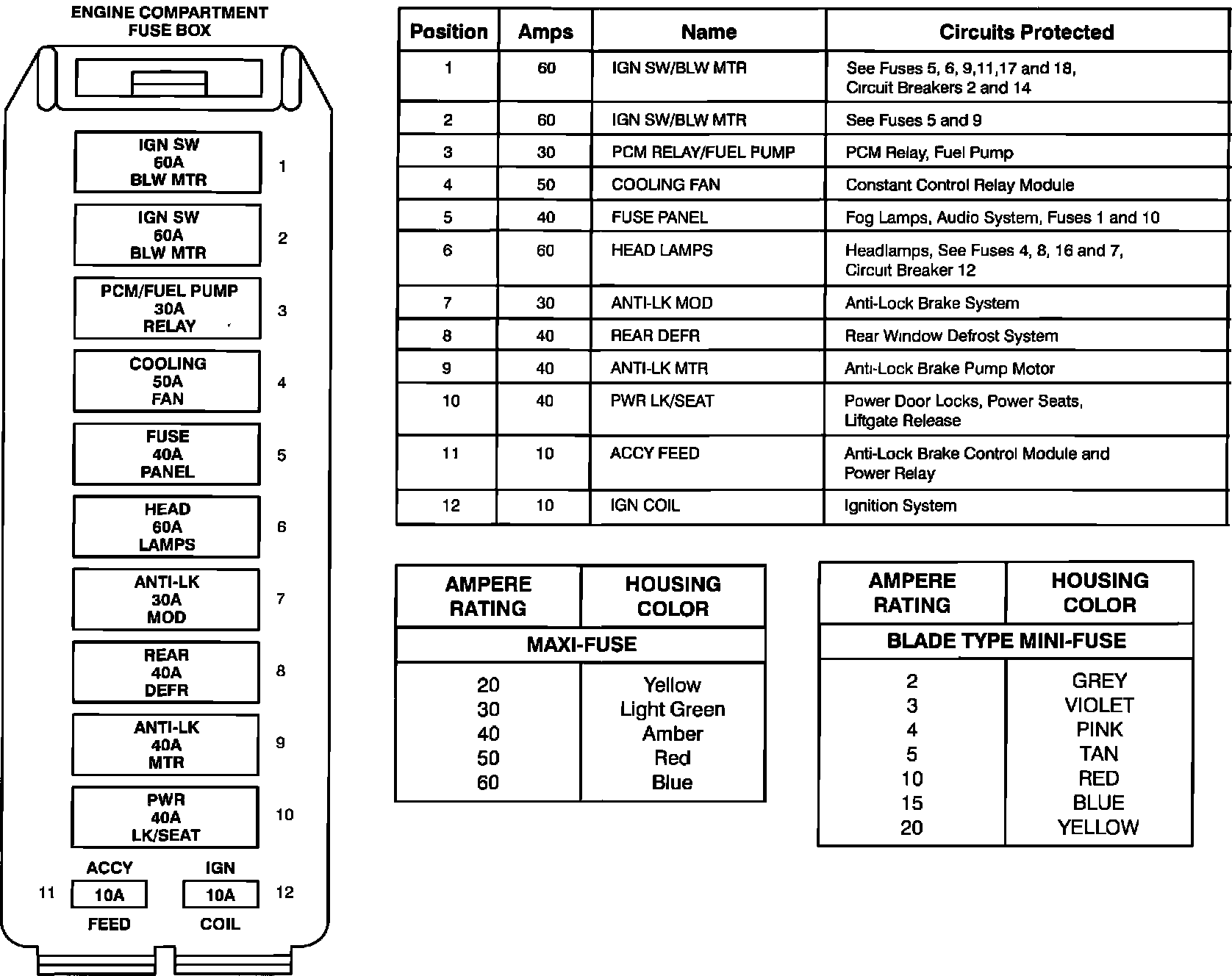

Engine Compartment Fuse Box.

Engine Compartment Fuse Box:
