Connector Views

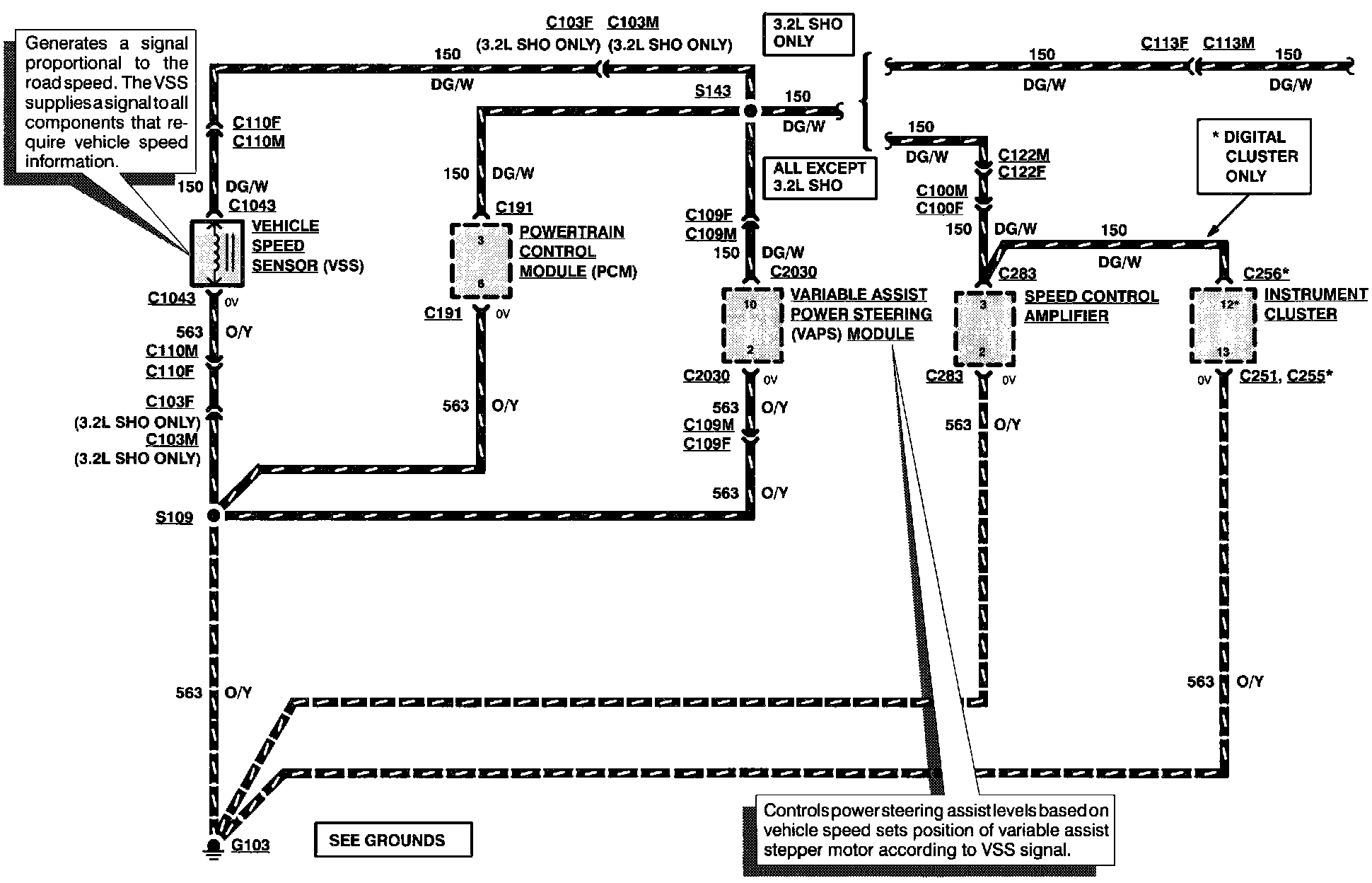

Vehicle Speed Sensor (Part 1 0f 2):

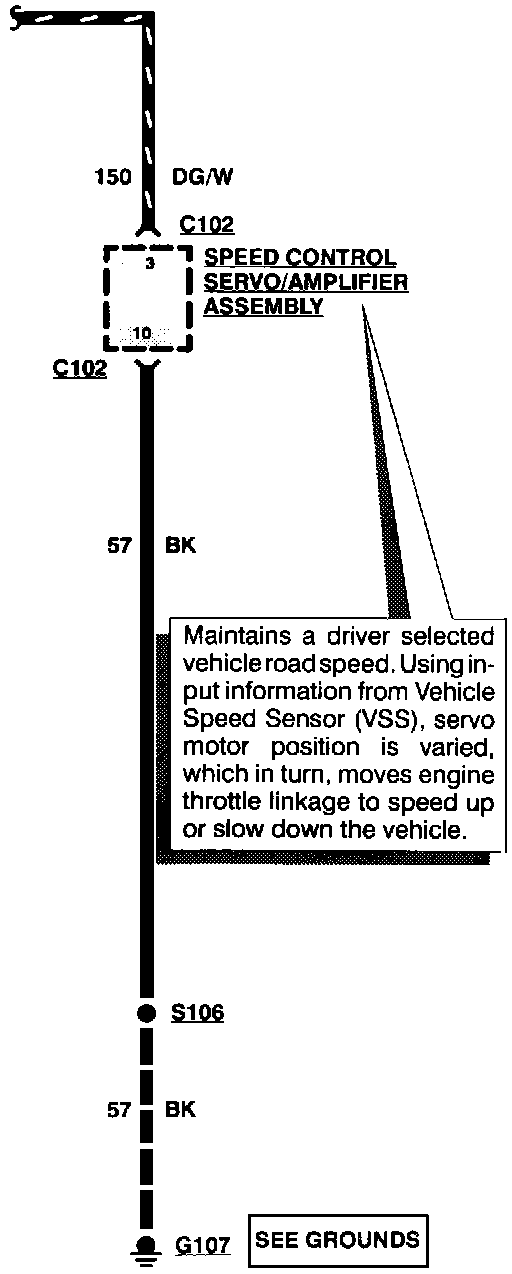

Vehicle Speed Sensor (Part 2 Of 2):

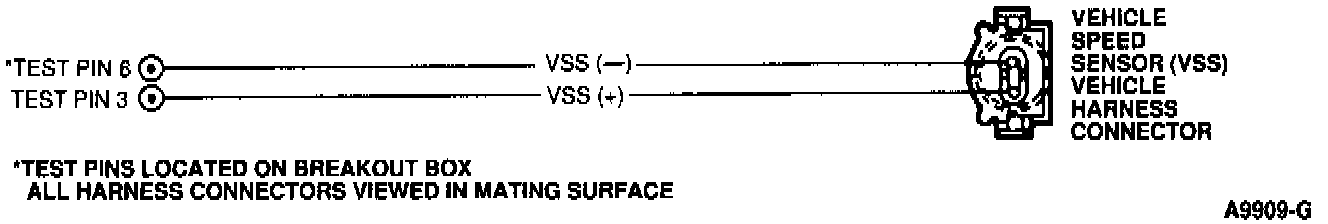

Vehicle Speed Sensor:
