Ignition Rotor: Service and Repair

REMOVAL

Distributor Rotor:

1. Remove distributor cap.
2. Pull distributor rotor upward to remove it from distributor shaft and armature.

INSTALLATION

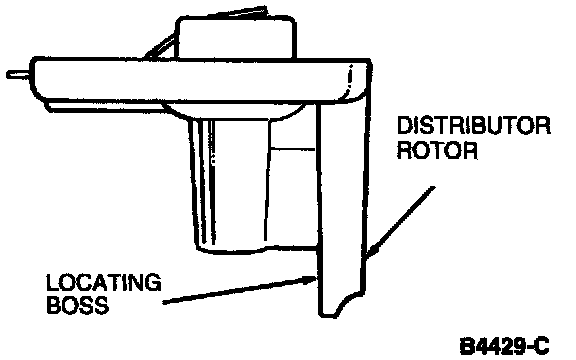

1. Align locating boss on distributor rotor with hole on armature. Fully seat distributor rotor on distributor shaft.
2. Install distributor cap.
