Electrical Diagrams

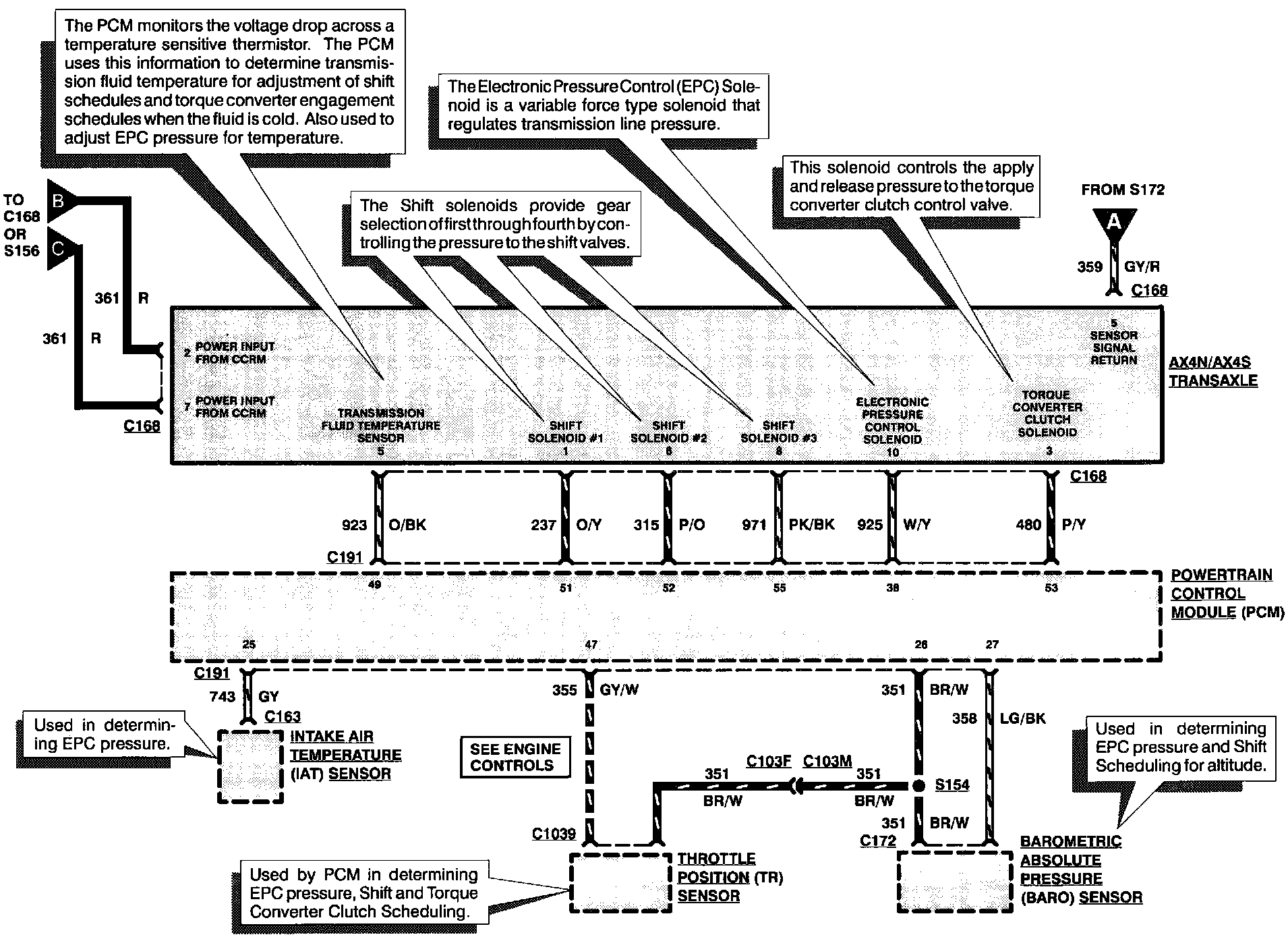

AX4N/AX4S Transaxle (Part 1 Of 3):

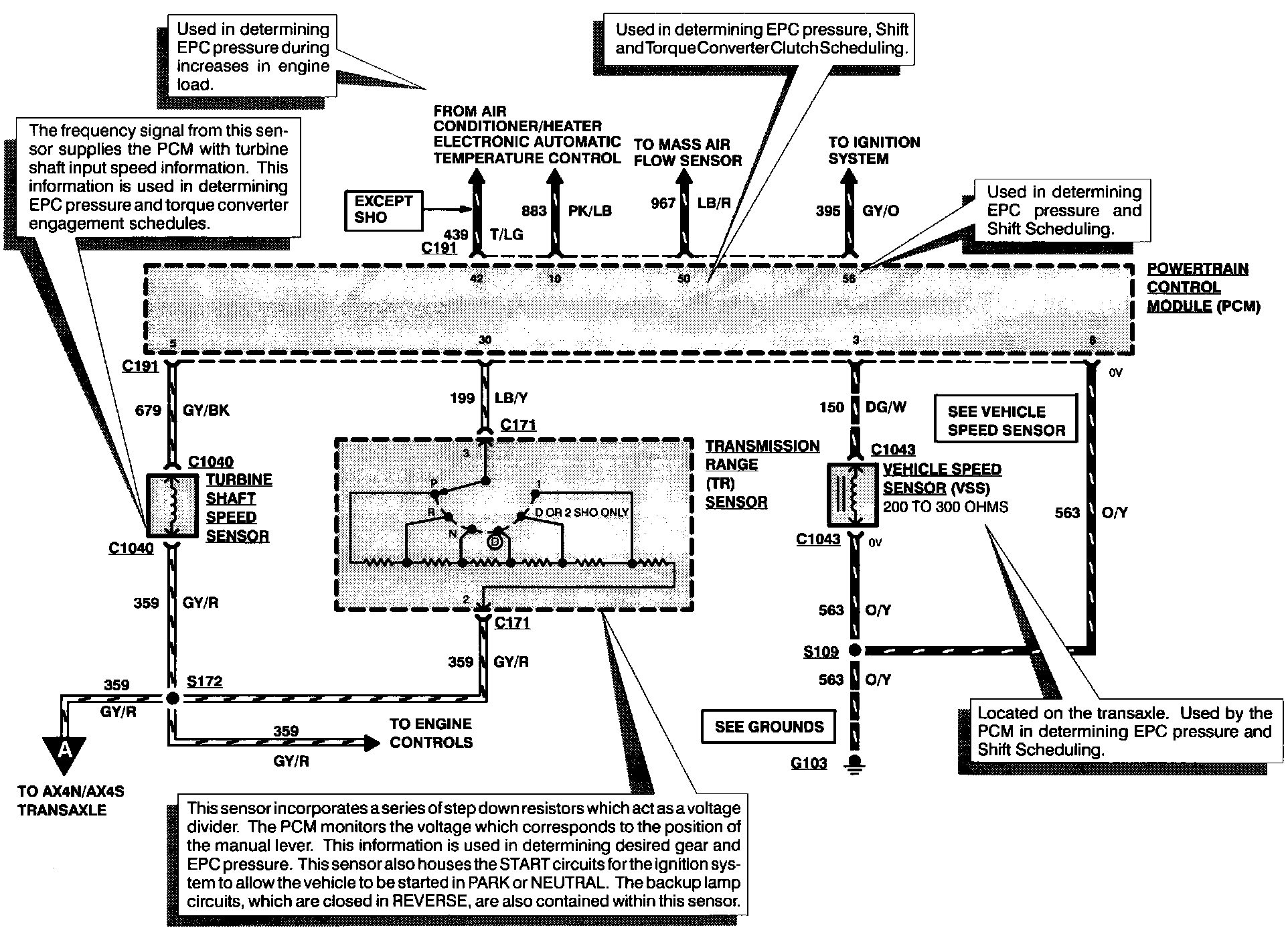

AX4N/AX4S Transaxle (Part 2 Of 3):

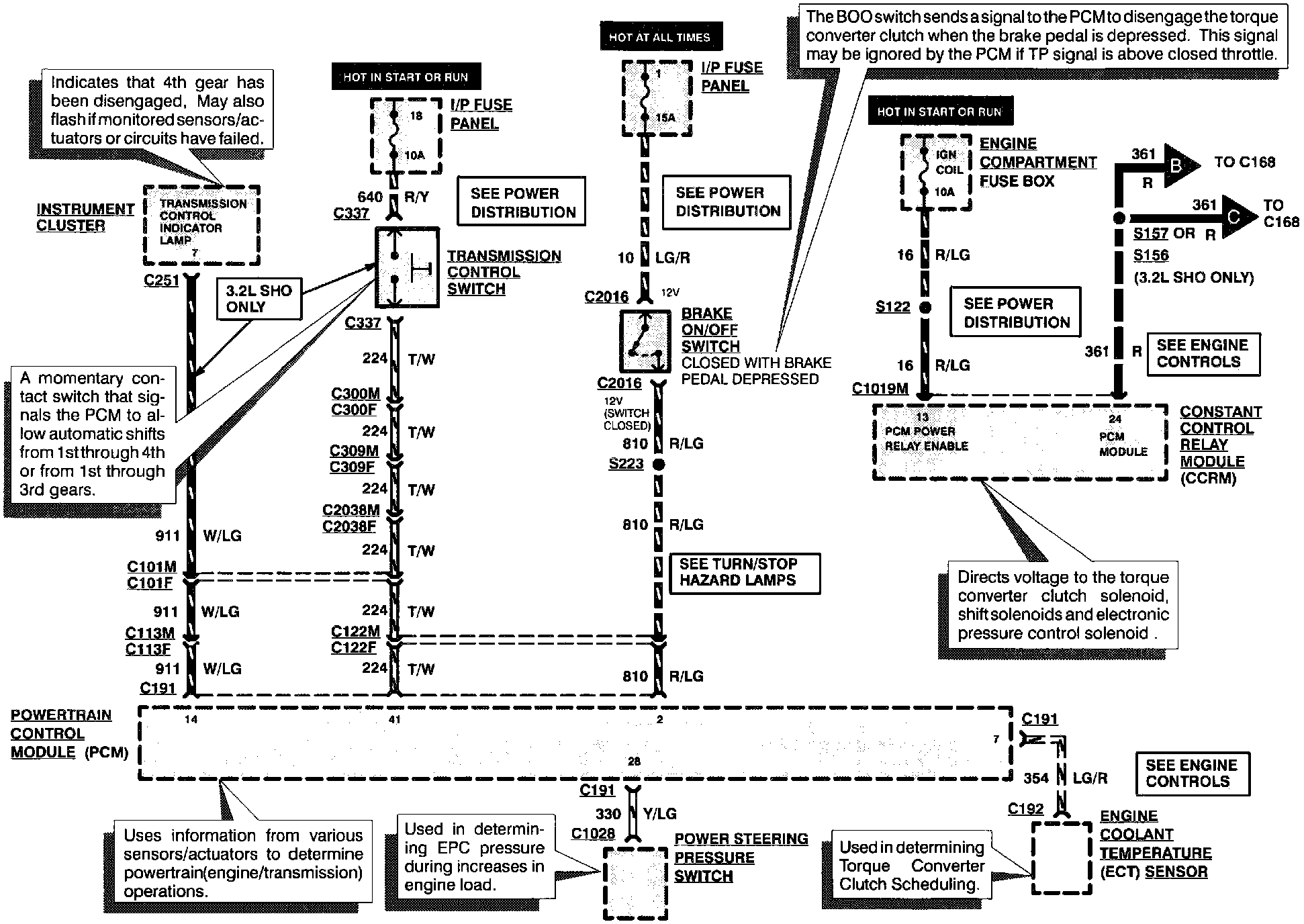

AX4N/AX4S Transaxle (Part 3 0f 3):
