Audible Warning Device Control Module: Service and Repair

REMOVAL

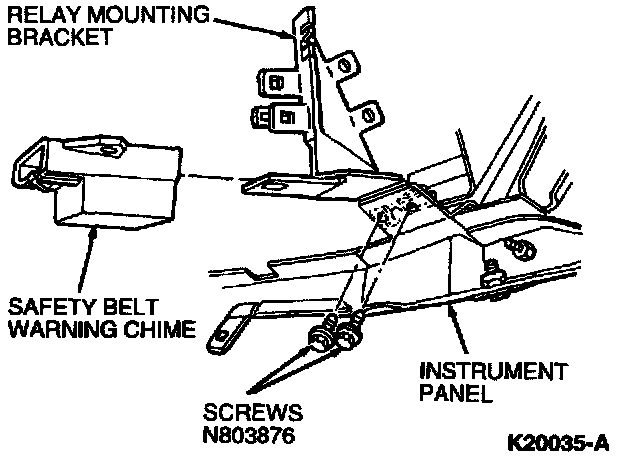

NOTE: The safety belt warning chime is mounted on a bracket to the RH side of the steering column, on the instrument panel reinforcement.

1. Disconnect battery ground cable.
2. Depress tab on safety belt warning chime and slide module off bracket.
3. Disconnect electrical connector to safety belt warning chime.






4. Remove safety belt warning chime.

INSTALLATION
1. To install, reverse Removal procedure.
