Power Window Switch: Testing and Inspection

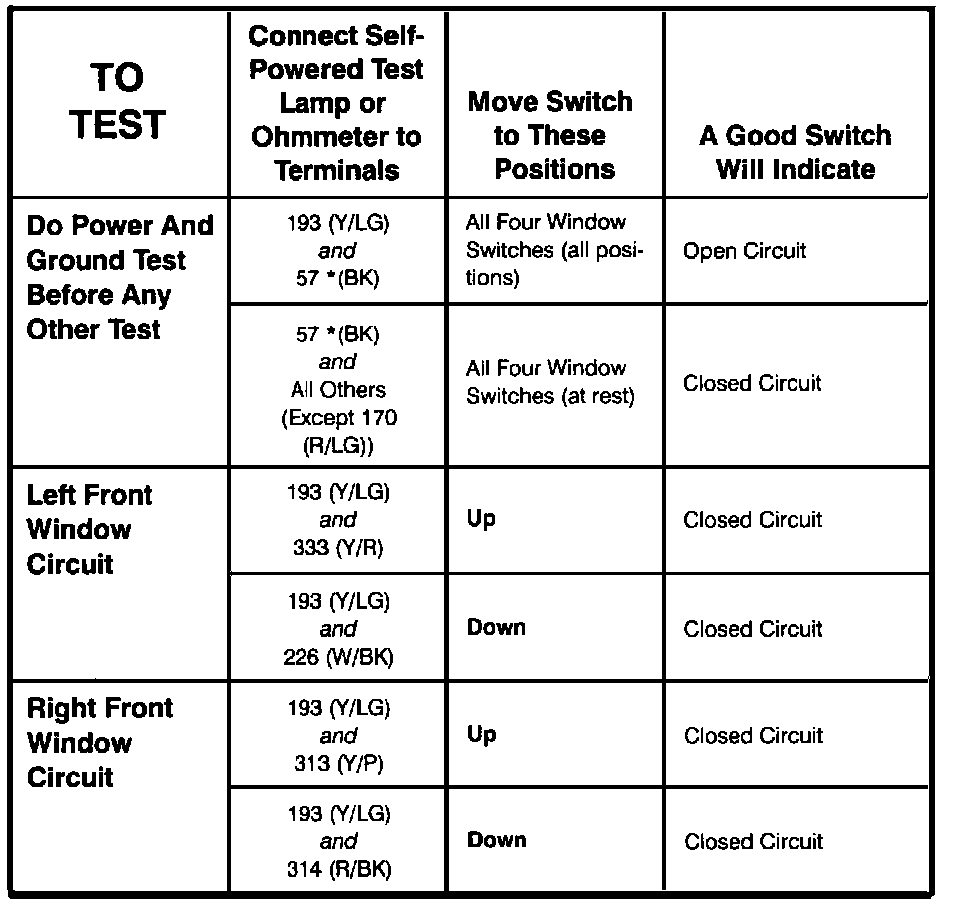

Master Window Control Switch - Component Testing Procedure (Part 1 Of 2):

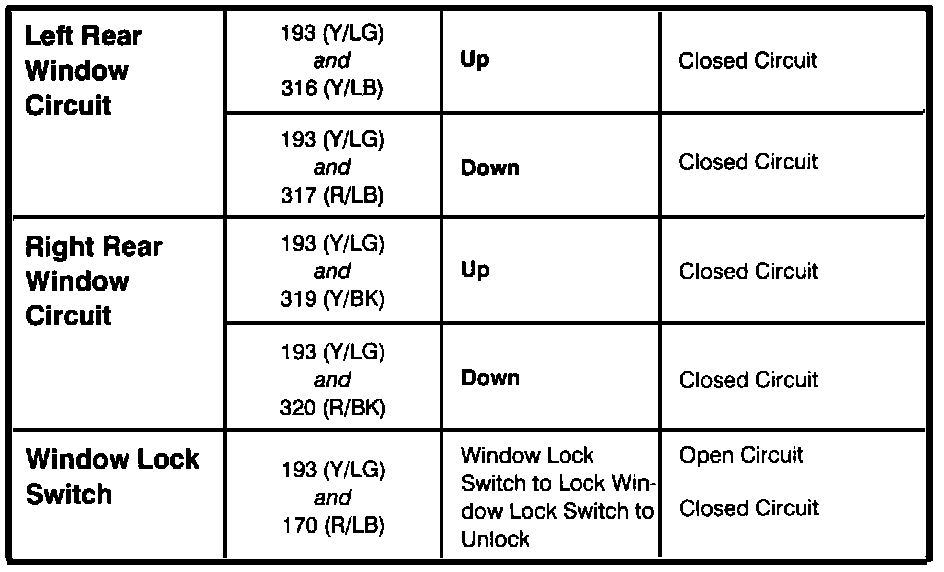

Master Window Control Switch - Component Testing Procedure (Part 2 Of 2):

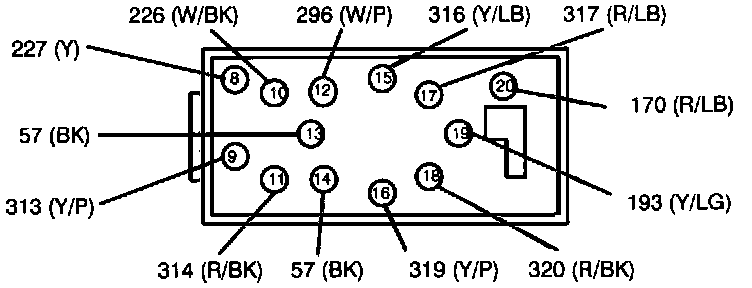

Master Window Control Switch - Terminal Locations:

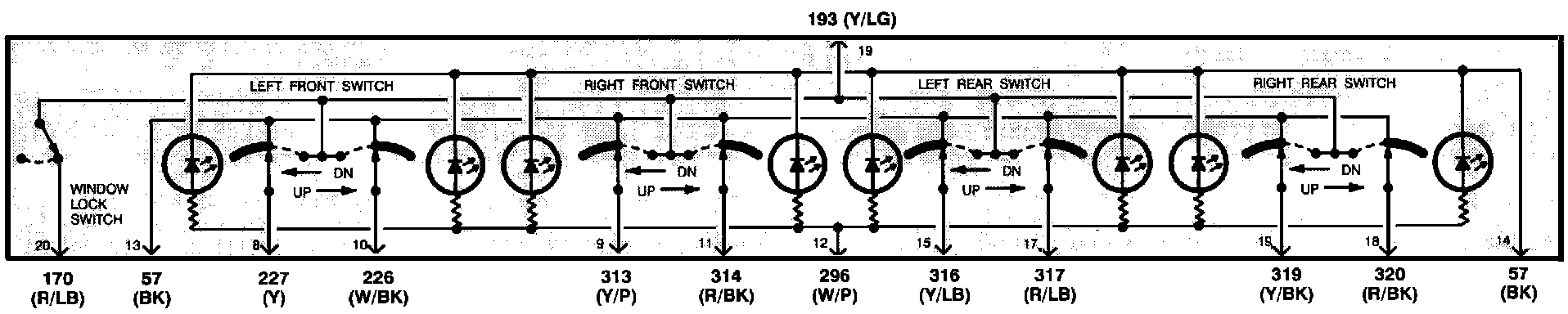

Master Window Control Switch - Schematic:
