Keyless Entry Module: Locations

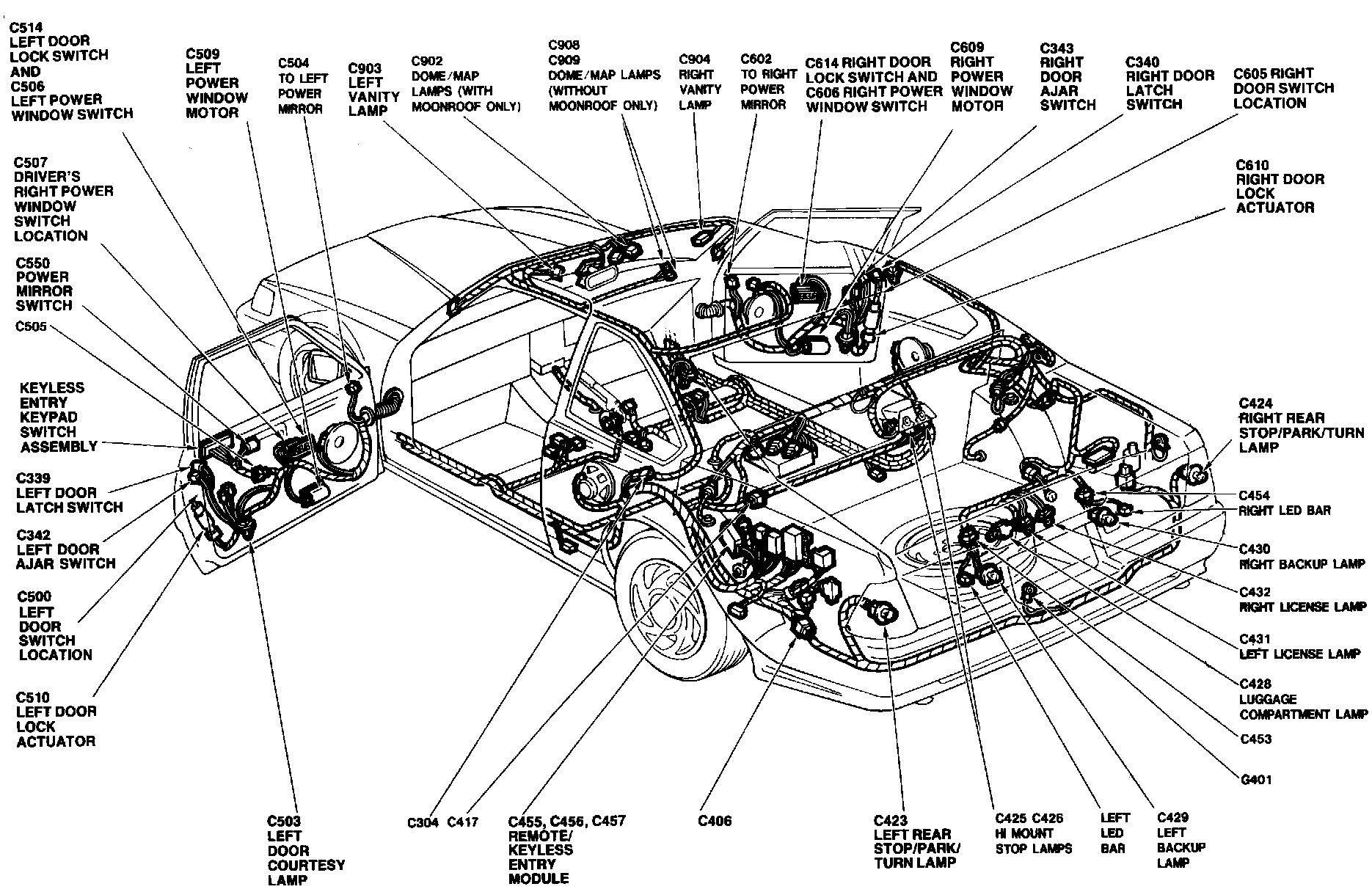

Full Body View:





The Remote/Keyless Entry Module is located at the LH side of the trunk, above wheel well, in the trim panel assembly.
