Keyless Entry Module

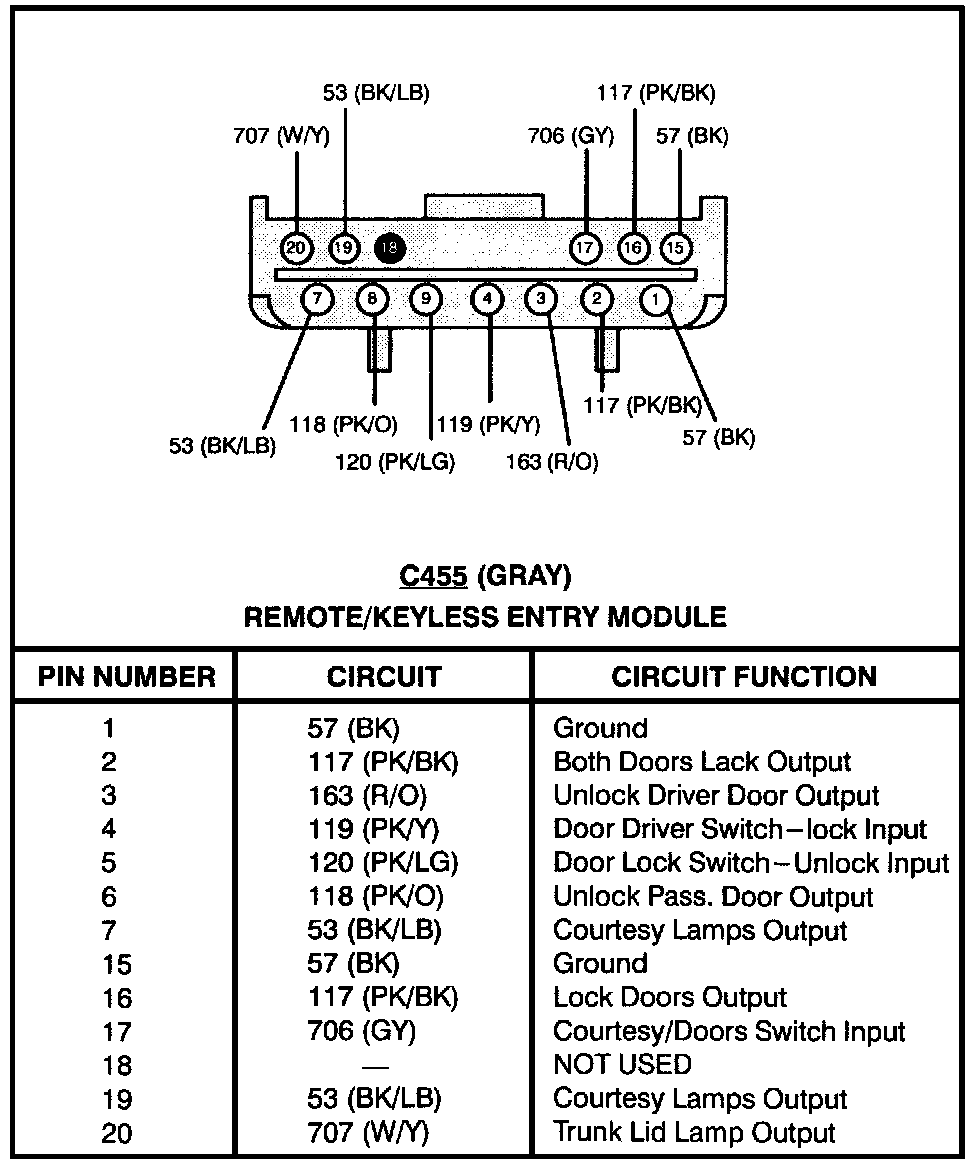

Remote/Keyless Entry Module (C455):

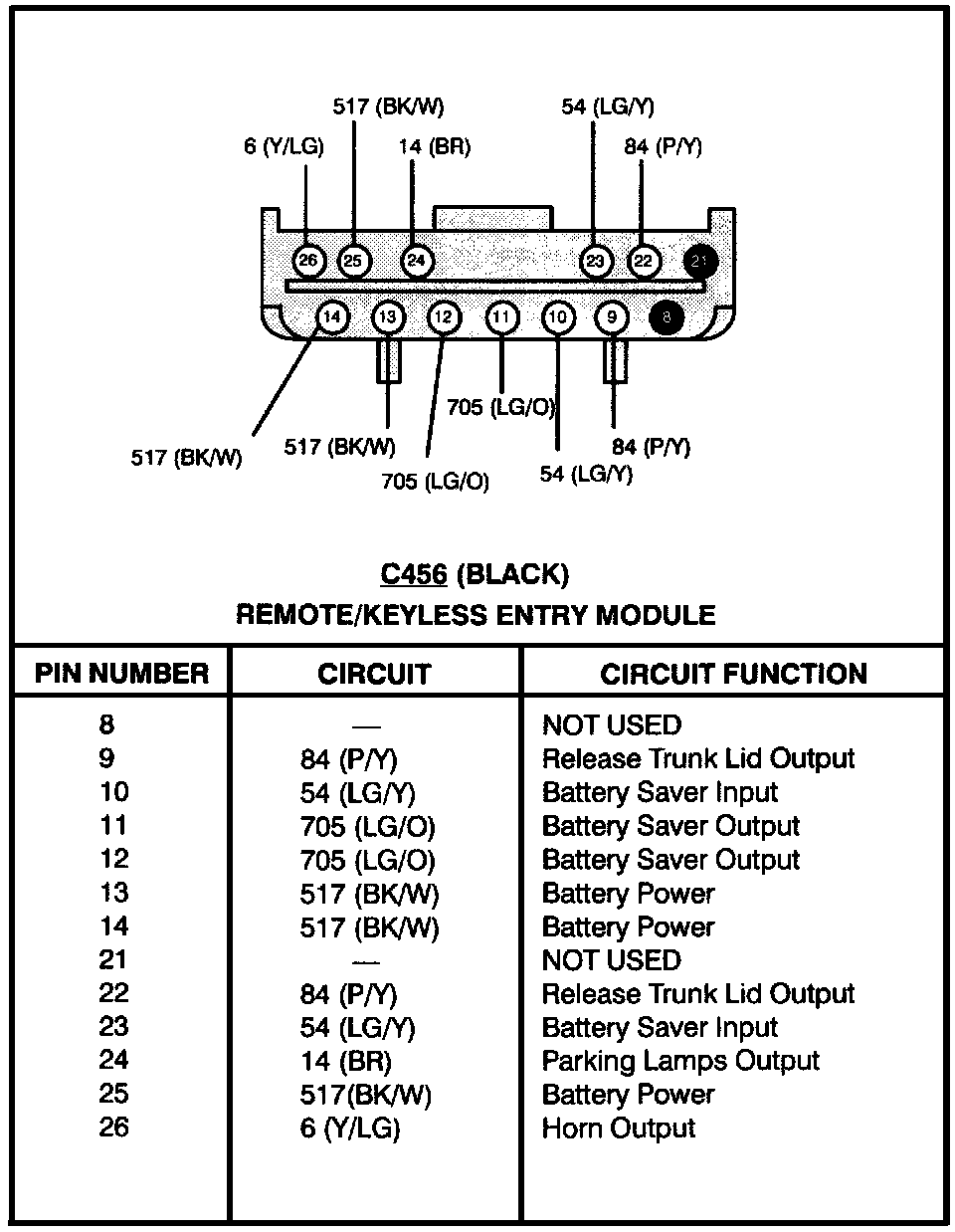

Remote/Keyless Entry Module (C456):

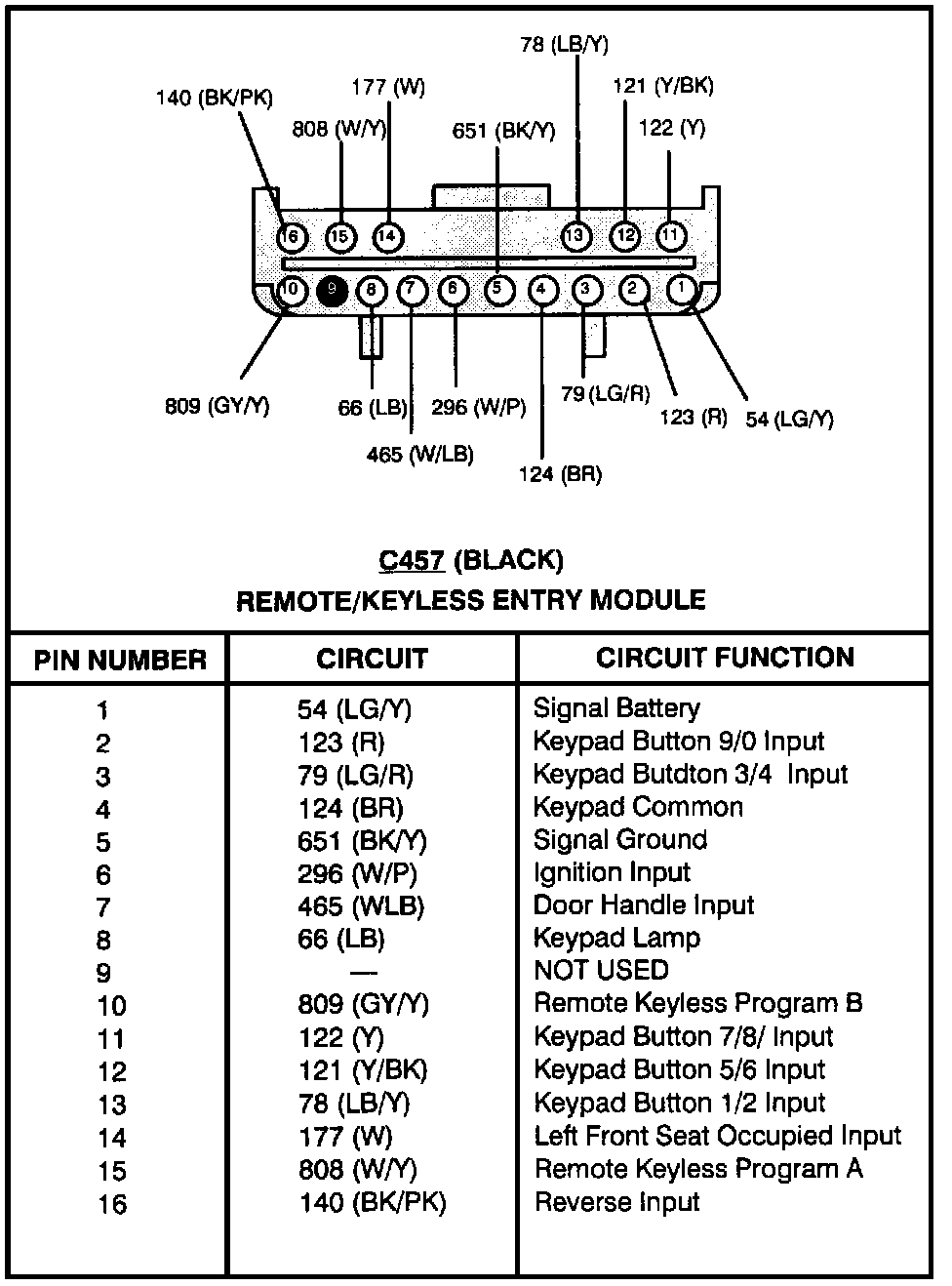

Remote/Keyless Entry Module (C457):
