Semi- Automatic Temperature Control (SATC) Module Conn.. B
>>
2 of 2
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
2 of 2

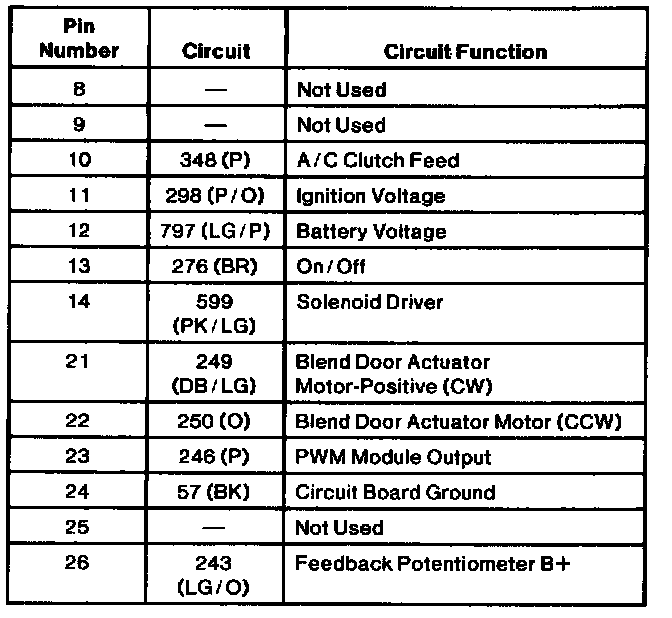

Semi- Automatic Temp Control (SATC) Module Connector B:
