Service Point Locations

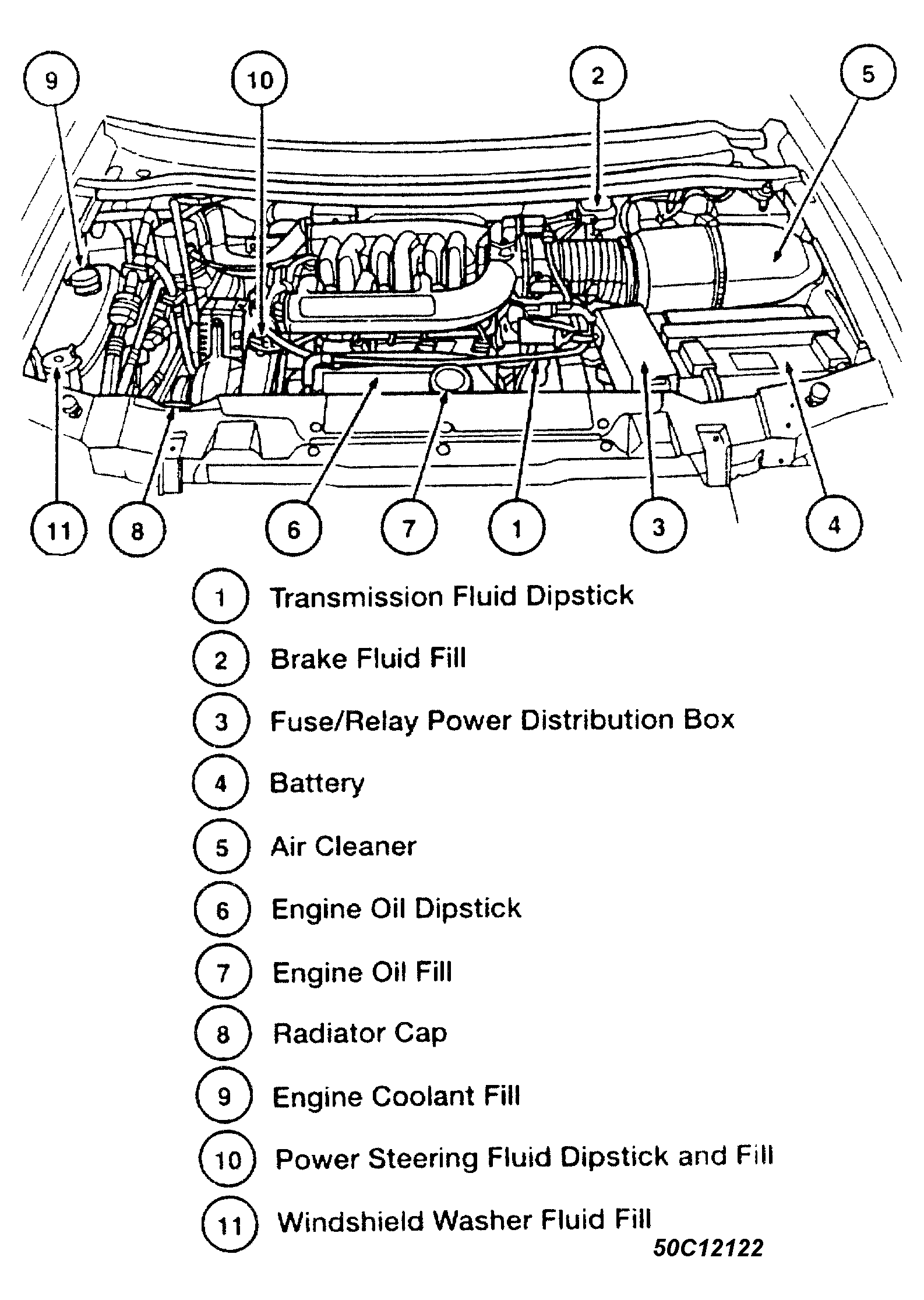

Fig 1: Service Point Locations (1995 3.8L Engine)

Courtesy of FORD MOTOR CO.

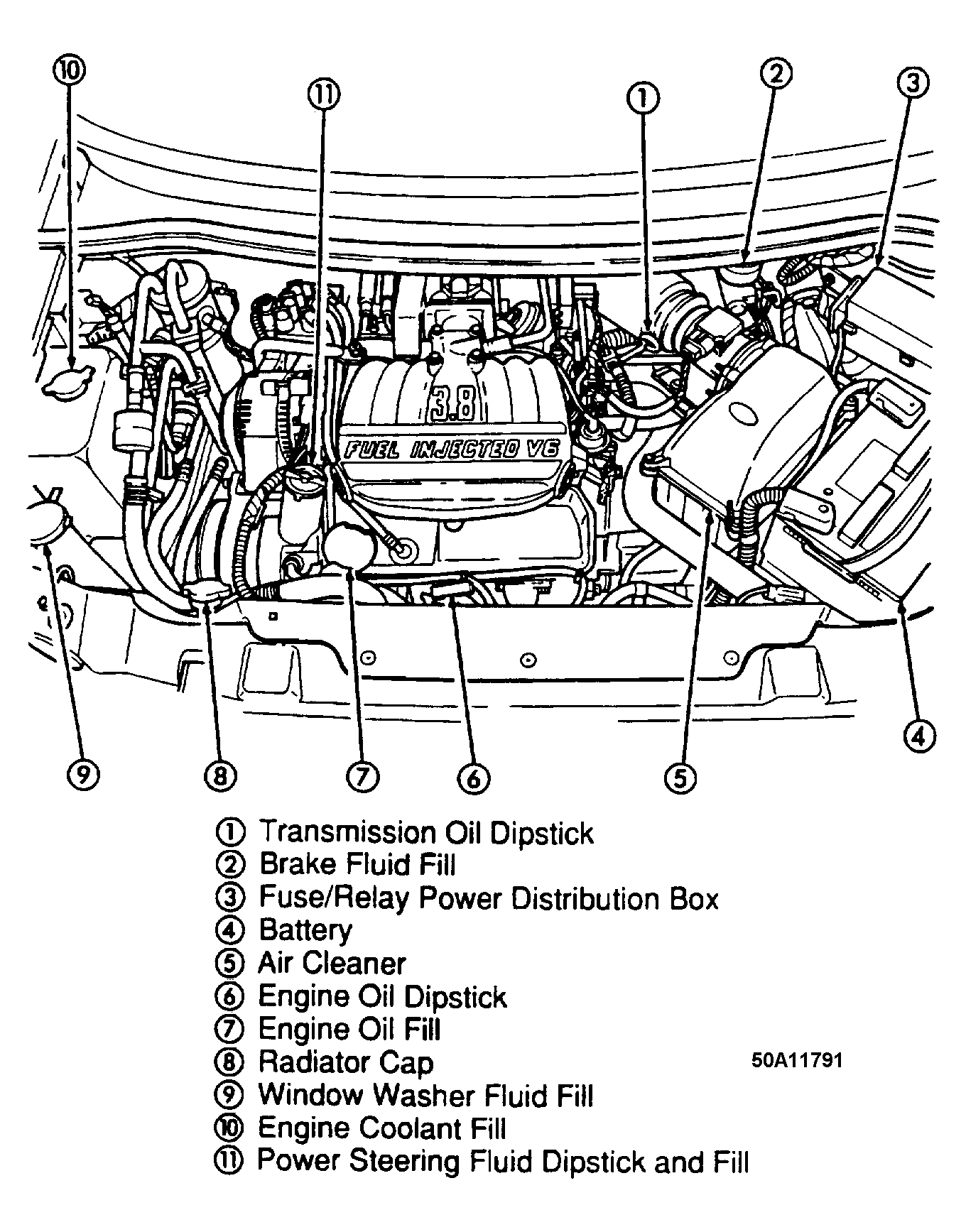

Fig 2: Service Point Locations (3.0L Engine)

Courtesy of FORD MOTOR CO.

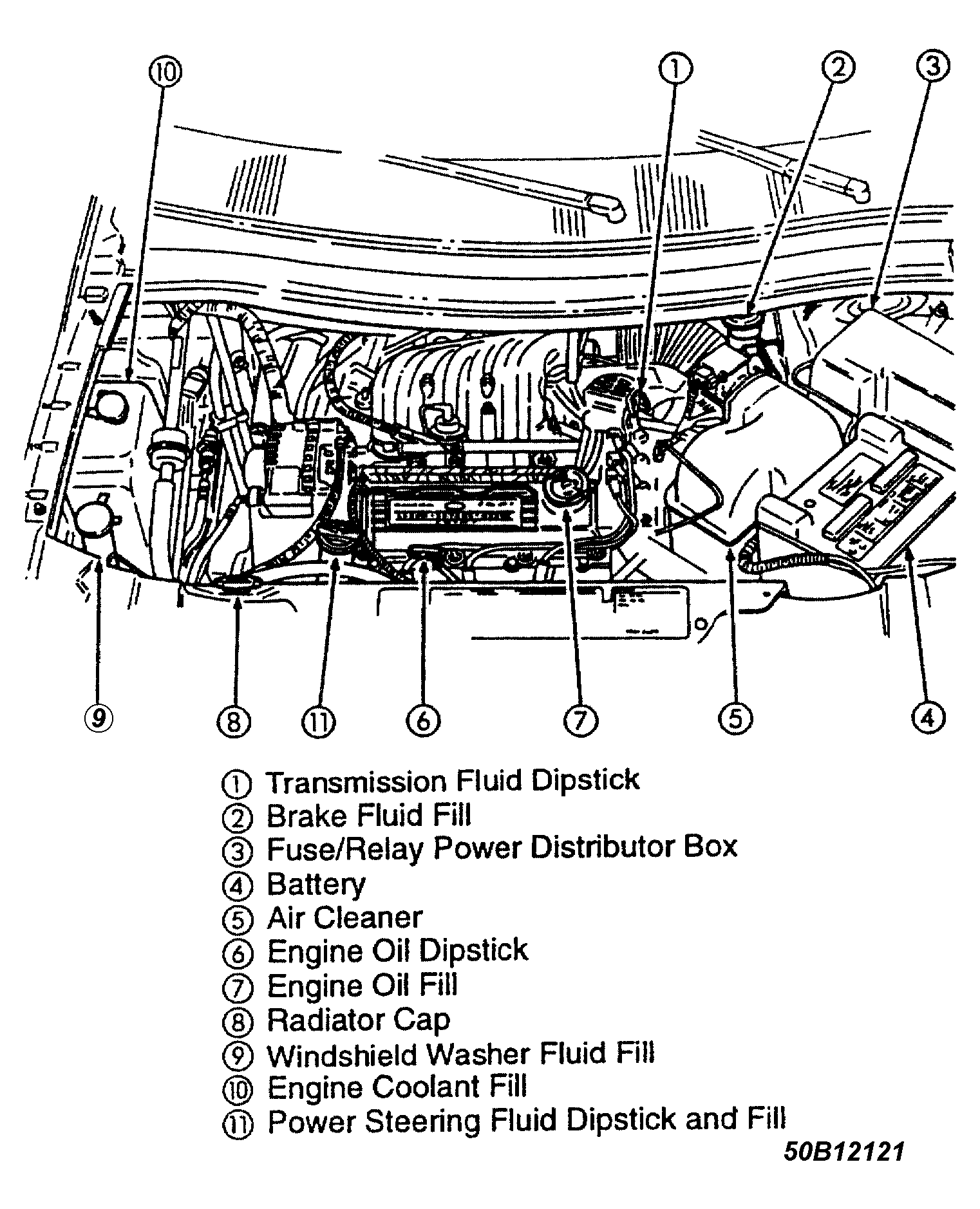

Fig 3: Service Point Locations (1996 3.8L Engine)

Courtesy of FORD MOTOR CO.

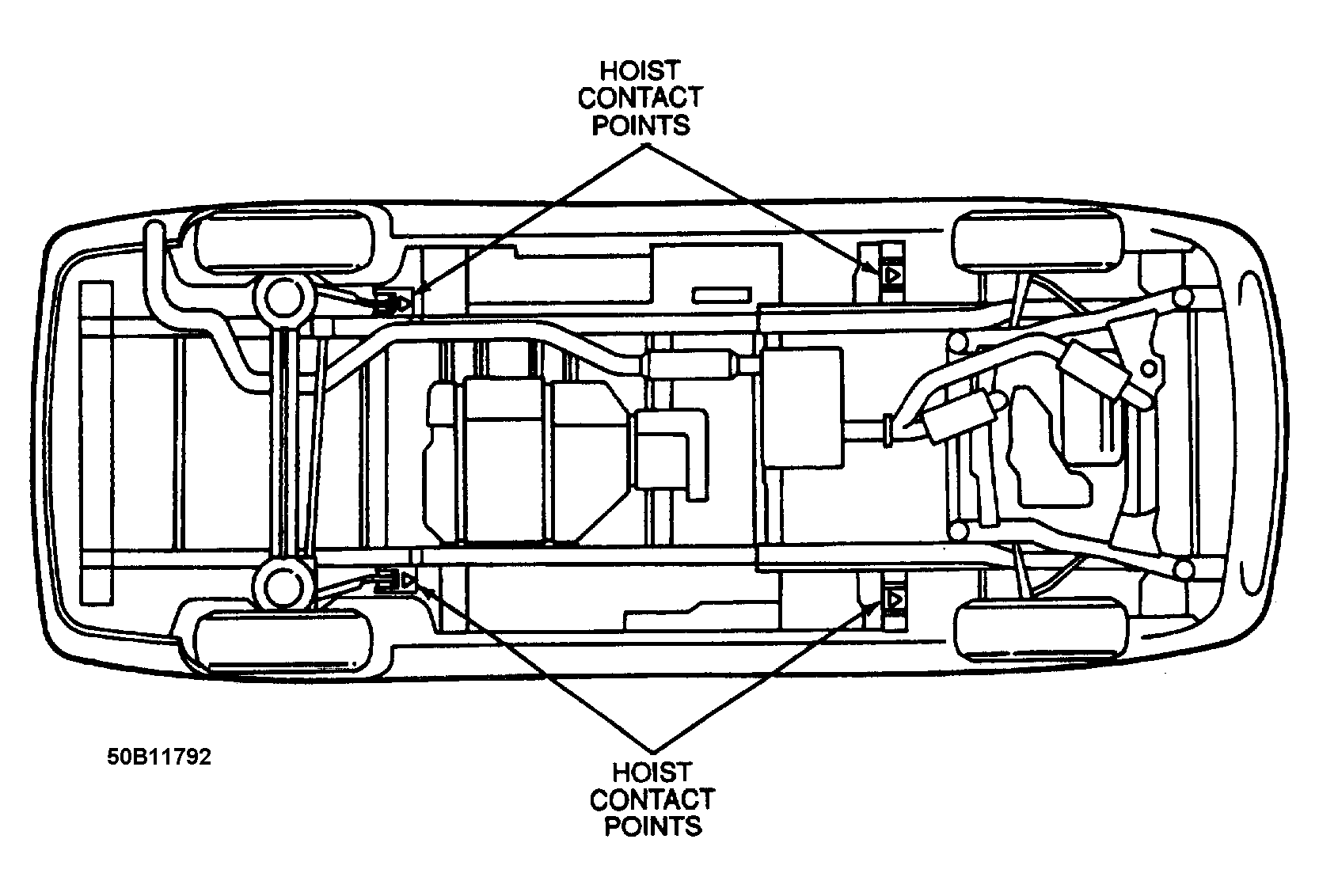

Fig 4: Hoist Point Locations

Courtesy of FORD MOTOR CO.
