Symbol Identification

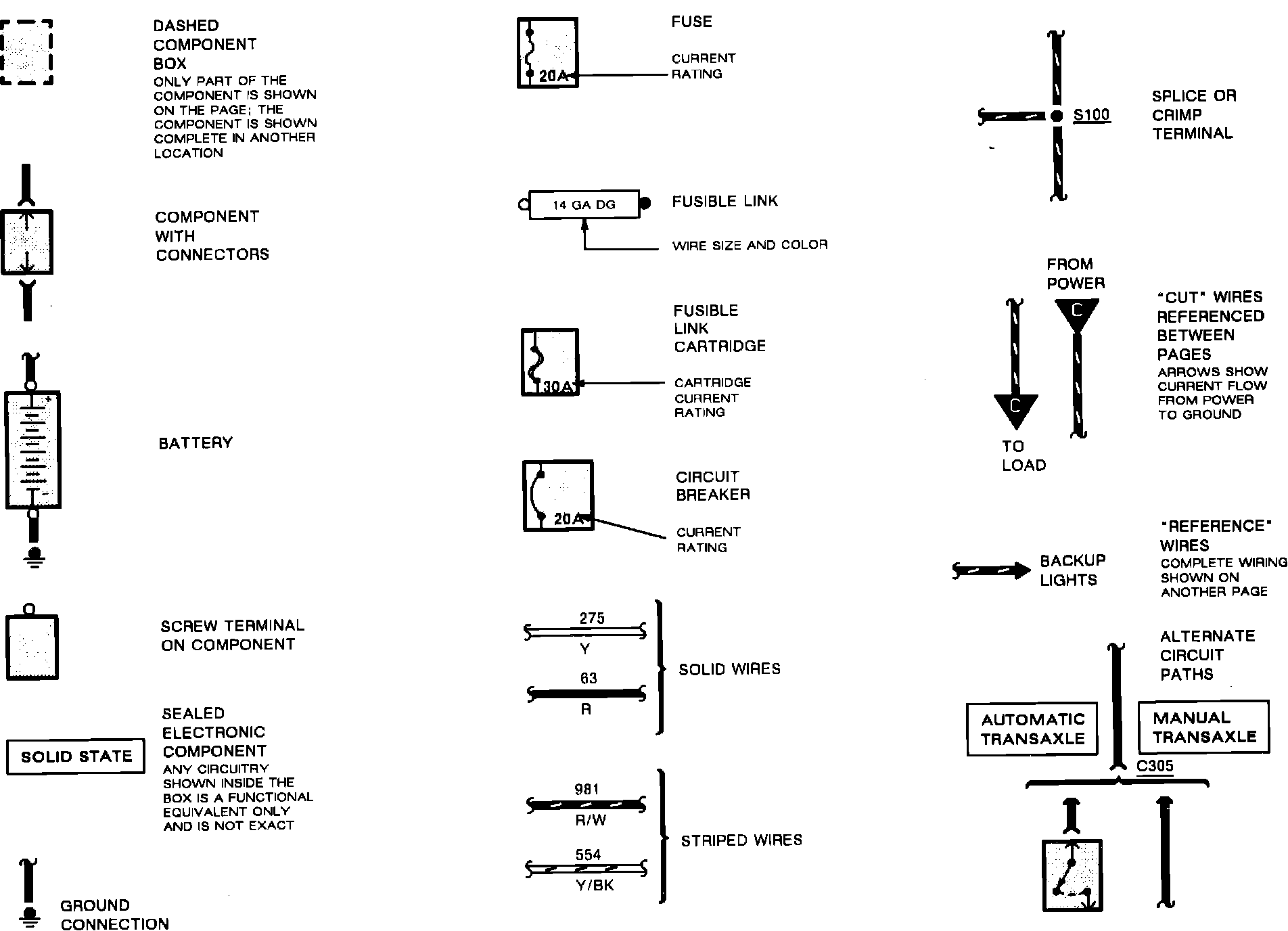

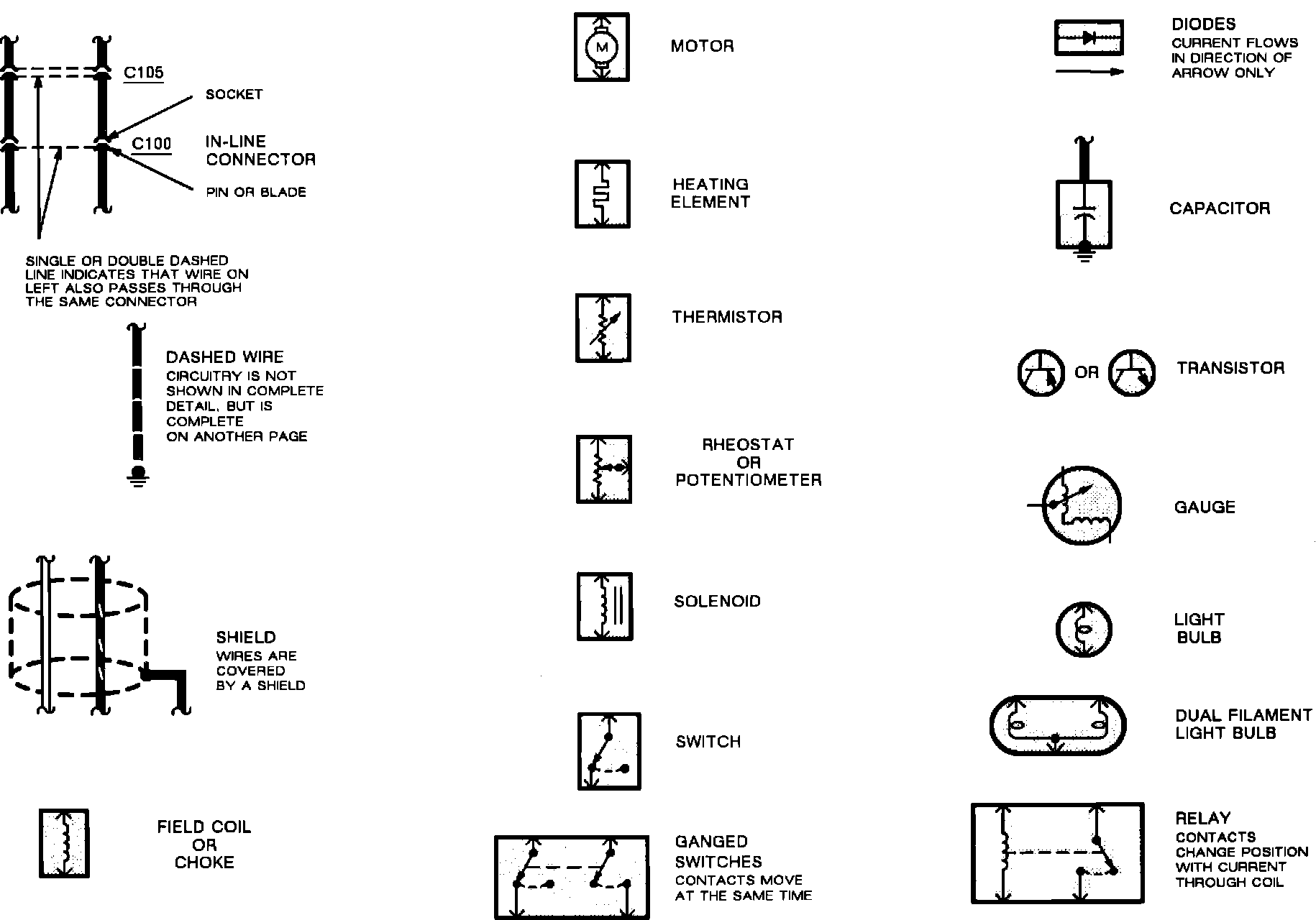

ELECTRICAL SYMBOLS

Electrical Symbols:





Electrical Symbols:

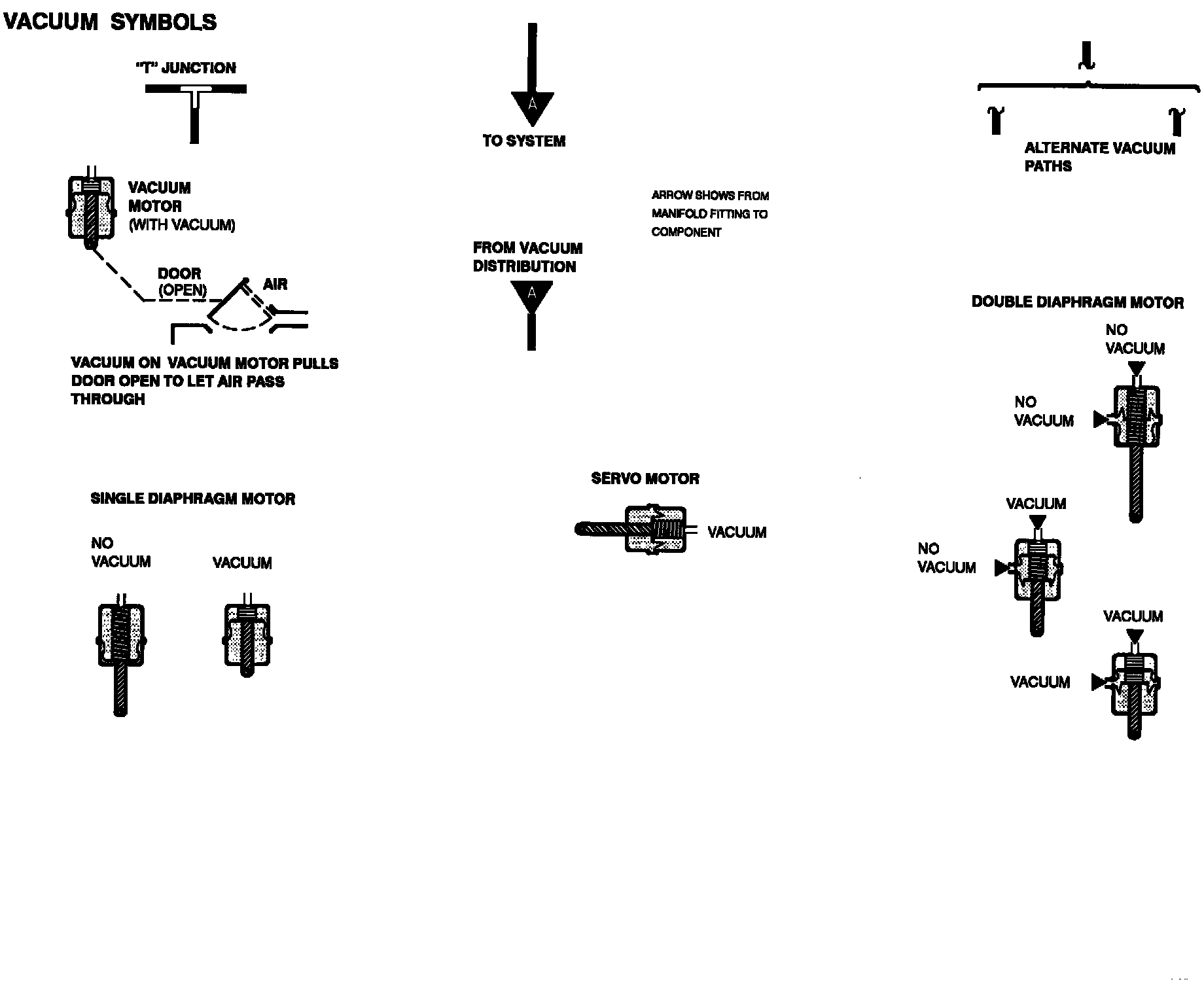

VACUUM SYMBOLS

Symbol Identification/Vacuum Symbols:
