Main Relay (Computer/Fuel System): Locations

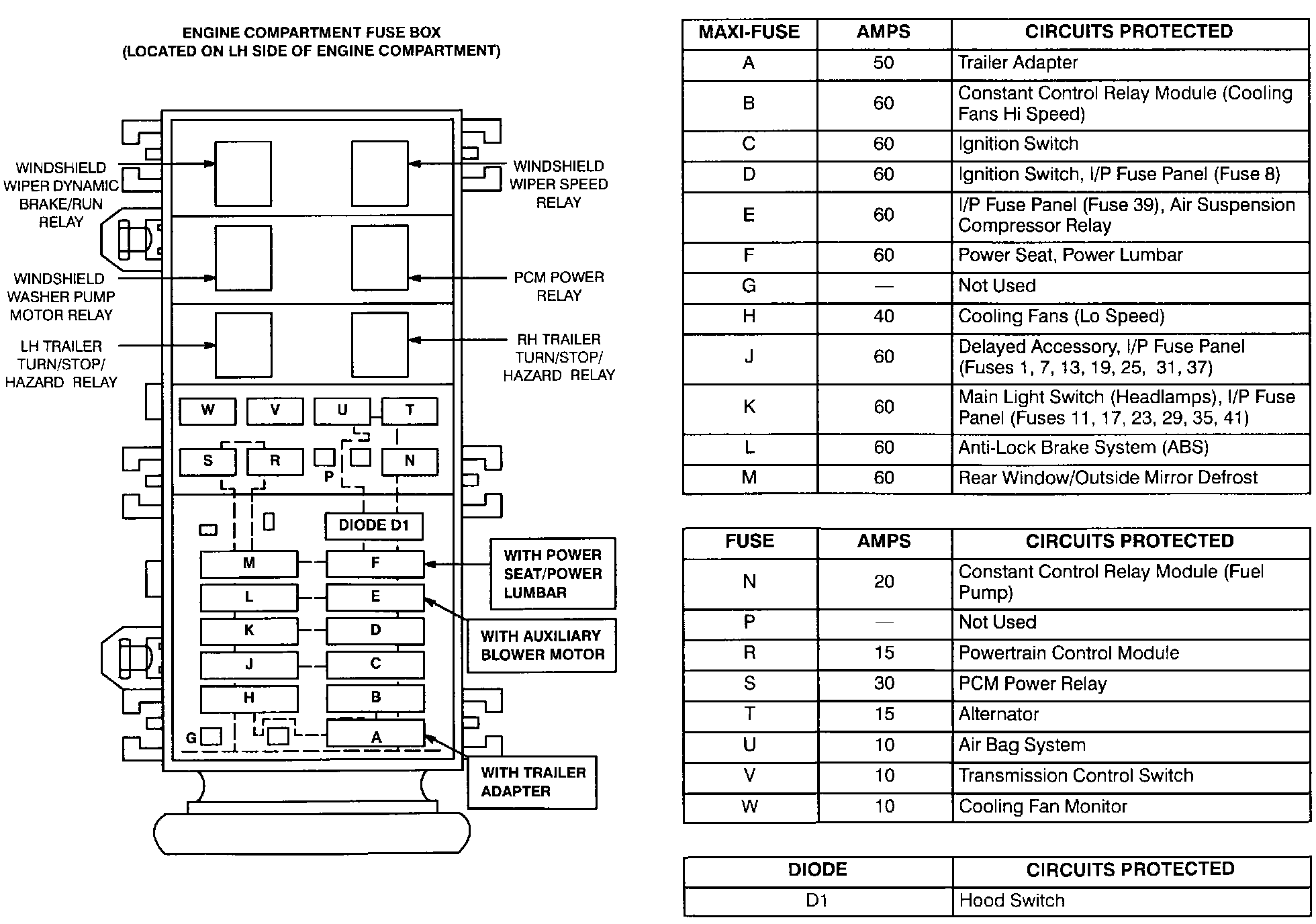

Engine Compartment Fuse Box:





Engine View:






The PCM Power Relay is located in engine compartment fuse box.
