Windshield Wiper/Washer (Multi-Function) Switch

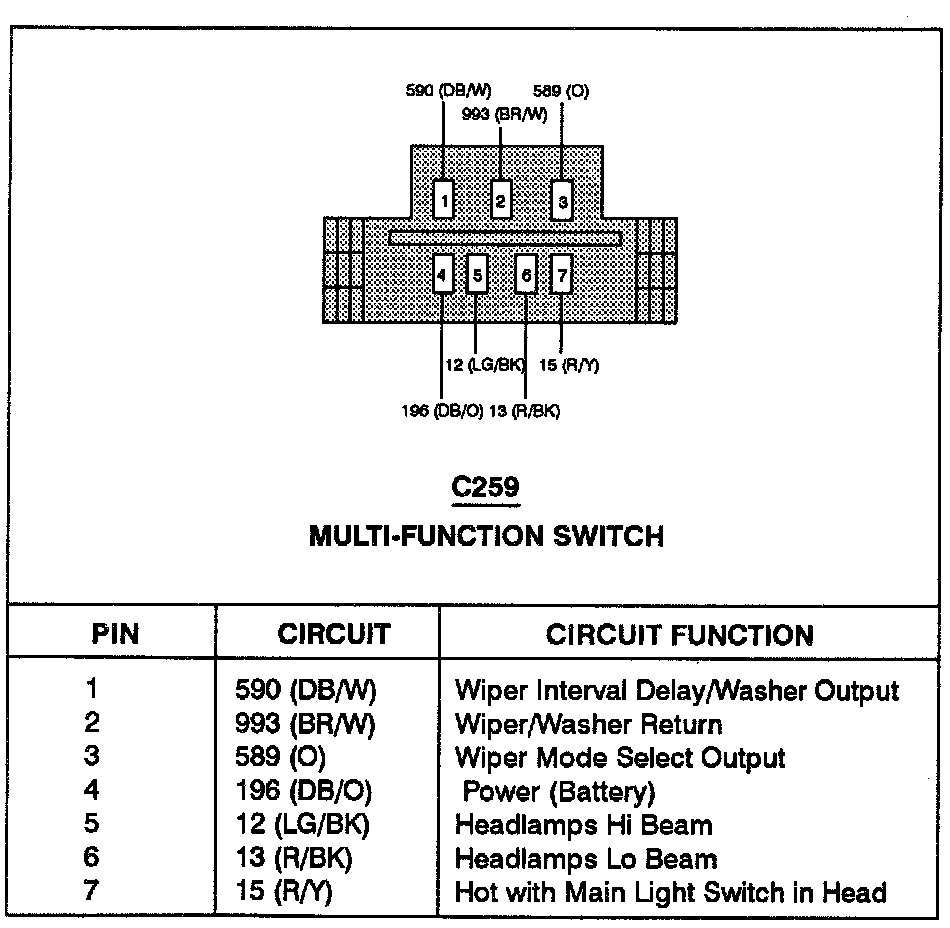

Multi-Function Switch (C259):

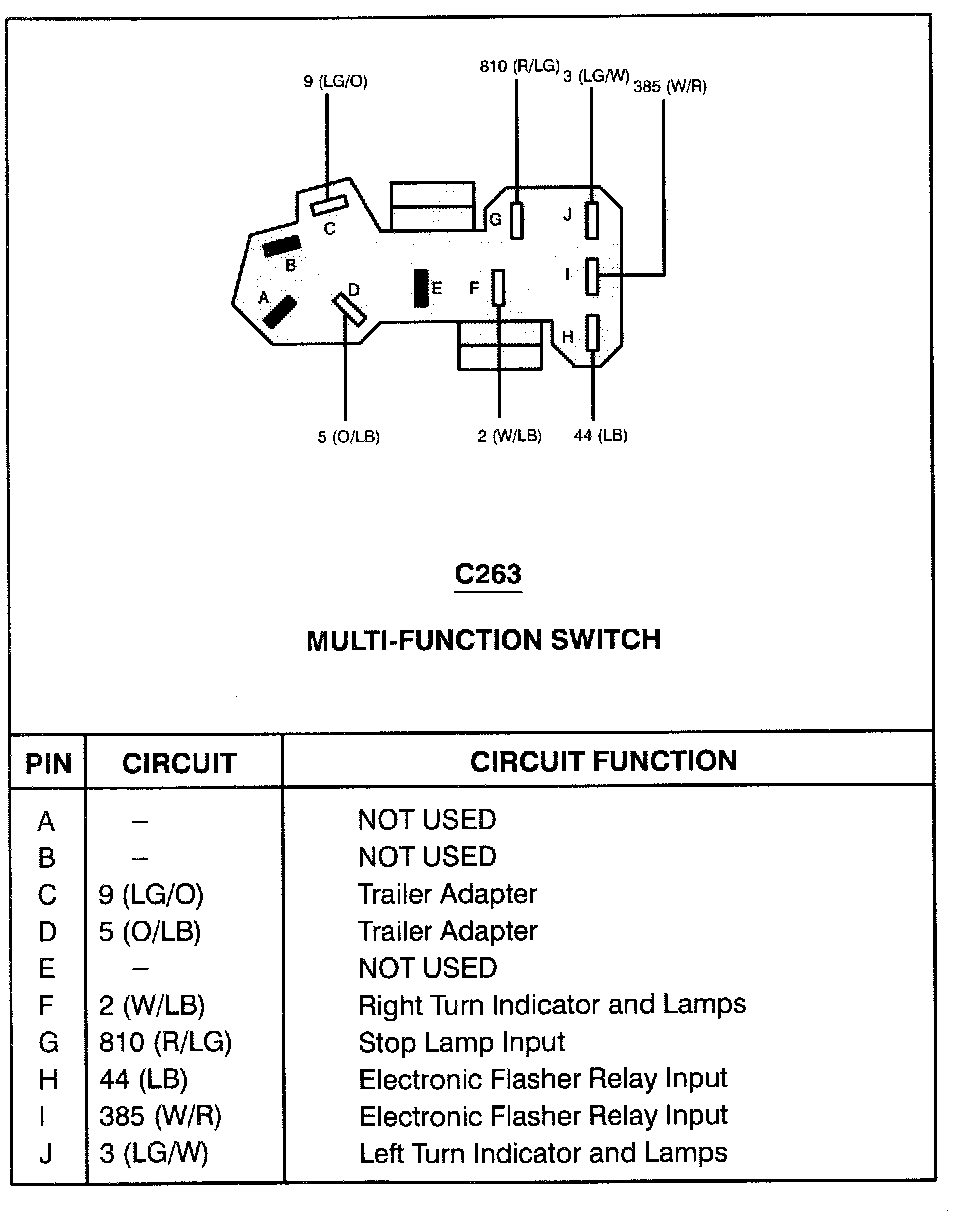

Multi-Function Switch (C263):
