General Module

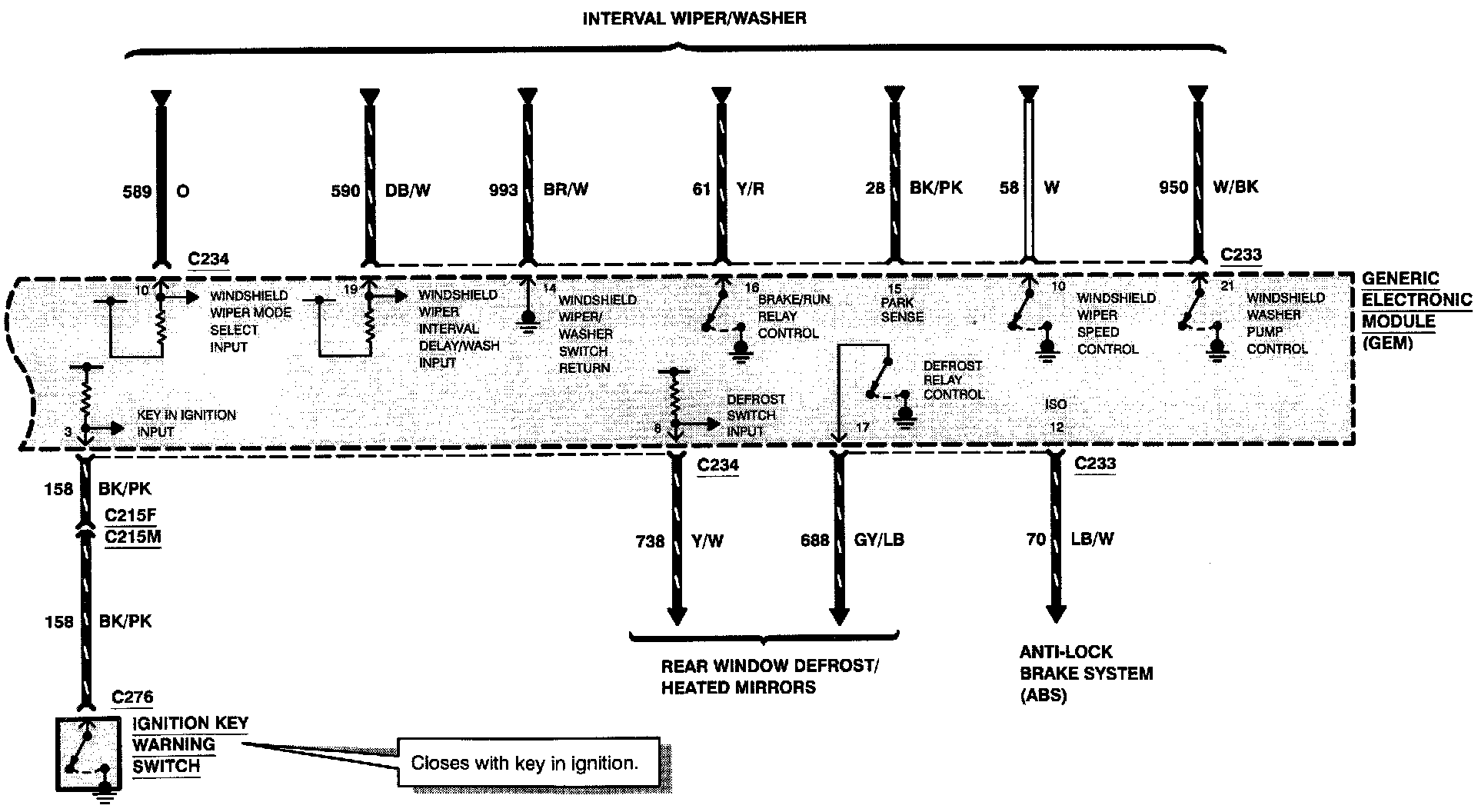

Generic Electronic Module (Part 1 Of 4):

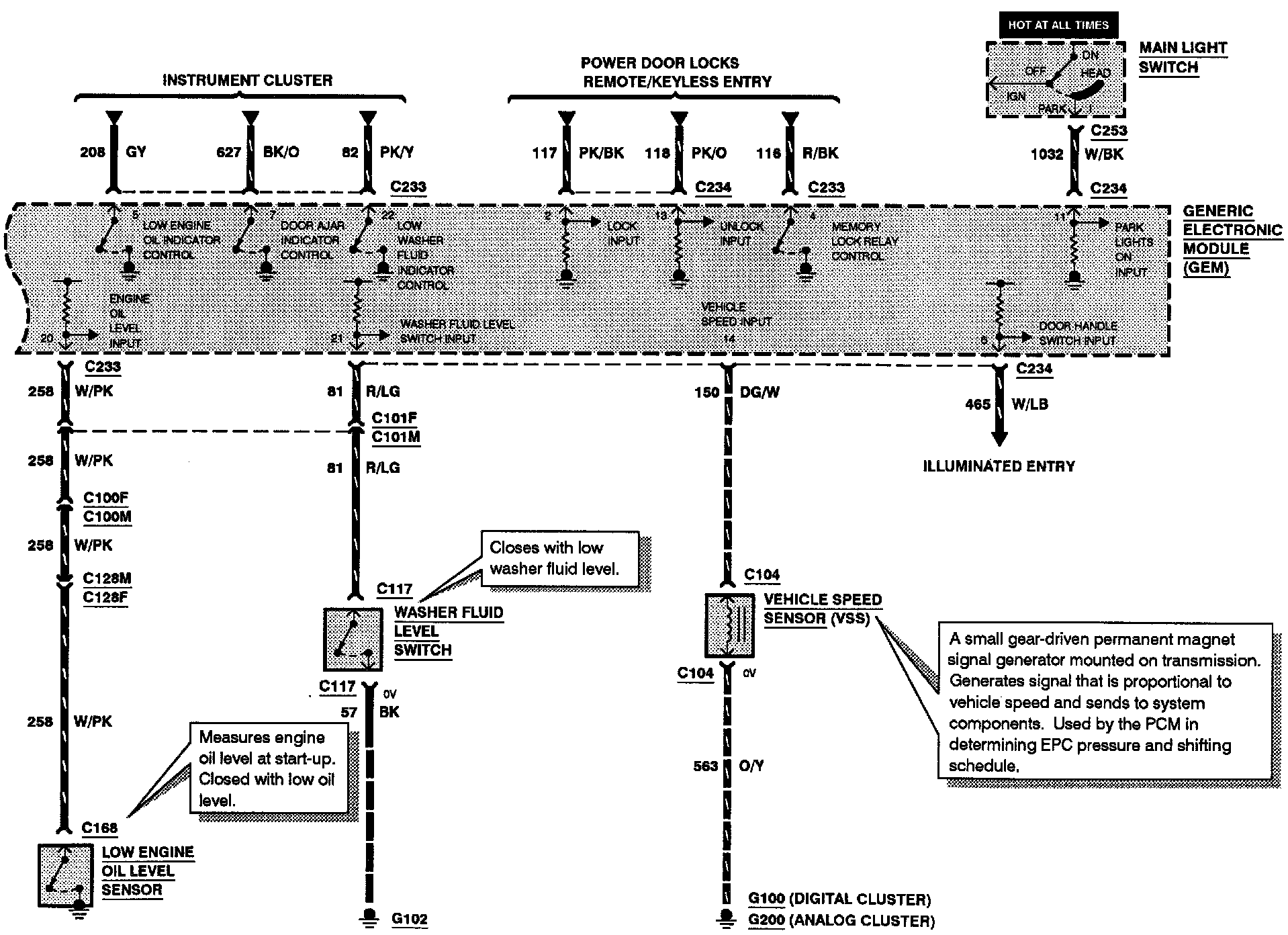

Generic Electronic Module (Part 2 Of 4):

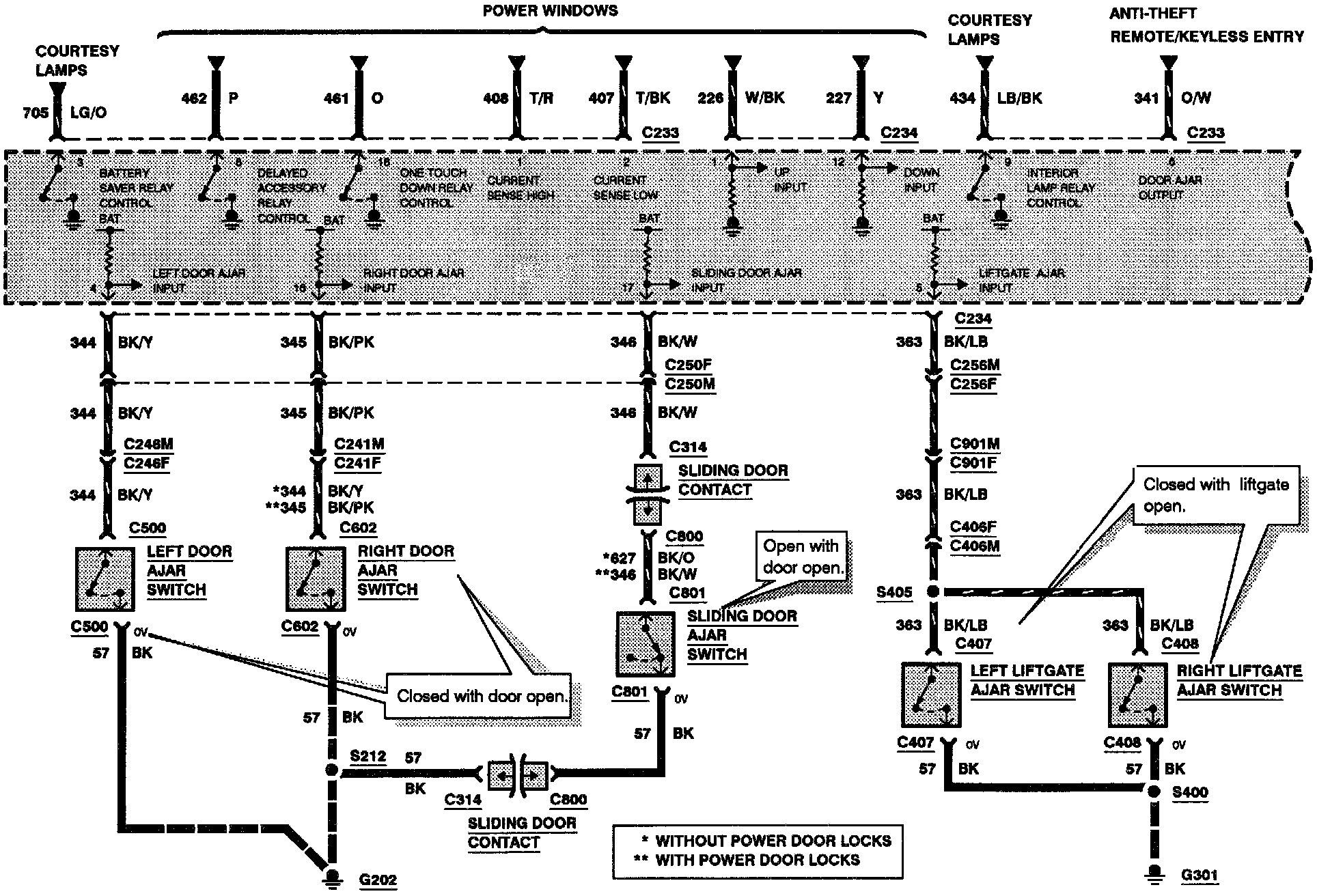

Generic Electronic Module (Part 3 Of 4):

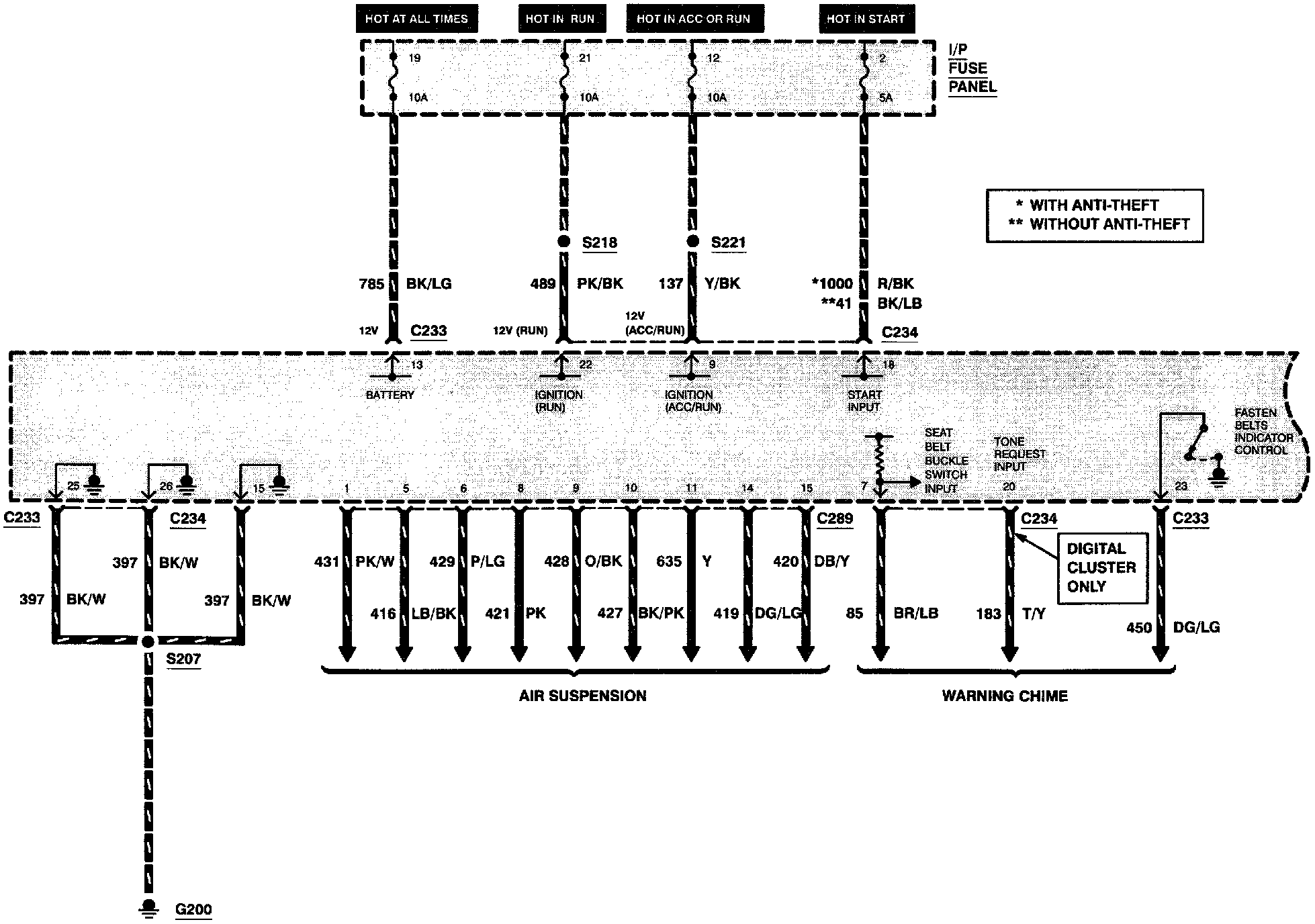

Generic Electronic Module (Part 4 Of 4):
