Test Notes

NOTE: You should enter this Pinpoint Test only when directed here.

REMEMBER
This Pinpoint Test is intended to diagnose the following:
- Ignition System
- Fuel Injectors
- Fuel Pressure
- Vacuum System
- Evaporative System
- Canister Purge Solenoid
- Base Engine

DESCRIPTION

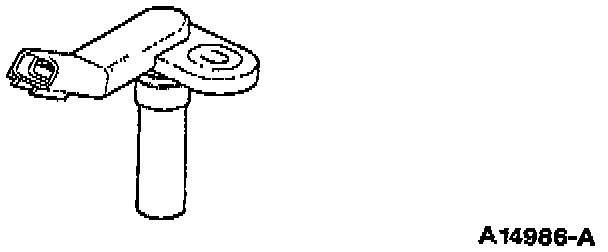

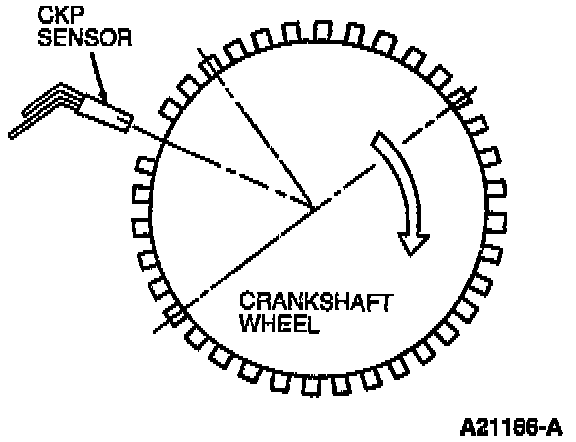

Crankshaft Position Sensor (CKP):

Crankshaft Position Sensor (Variable Reluctance)

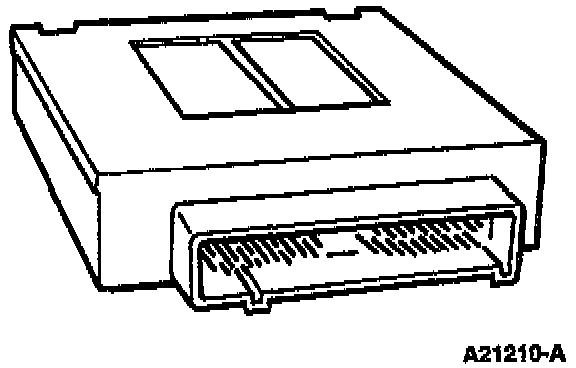

Powertrain Control Module (PCM)

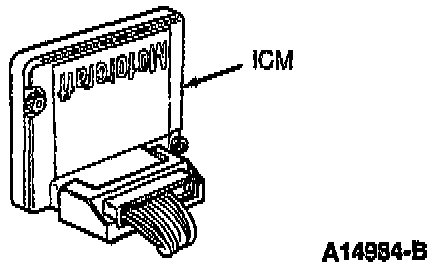

Ignition Control Module (ICM):

Ignition Control Module (ICM)

For additional information on Misfire Detection Monitor, refer to Description and Operation / On Board Diagnostics System Monitor.
