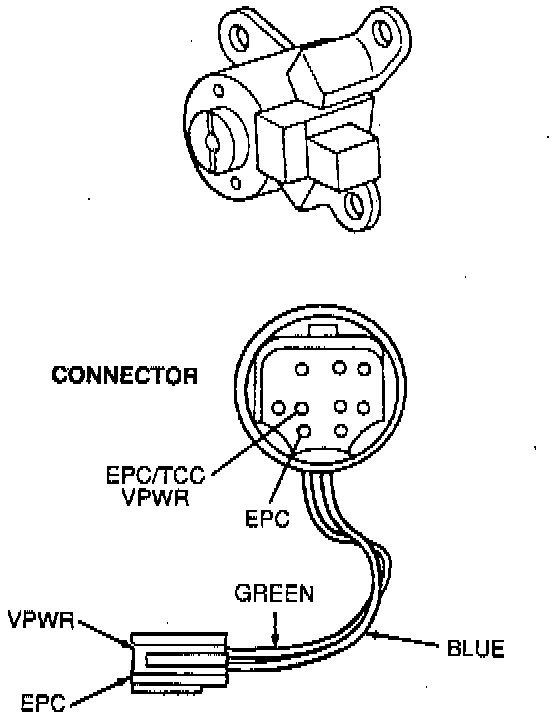

Electronic Pressure Control (EPC) Solenoid





DESCRIPTION
Regulates transaxle EPC pressure. EPC pressure is used to control line pressure and backout valve function.

SYMPTOMS
- Maximum EPC pressure, harsh engagements, harsh shifts.

DIAGNOSTIC TROUBLE CODES
P1746*, P1747*
* Output circuit check, generated only by electrical conditions.
