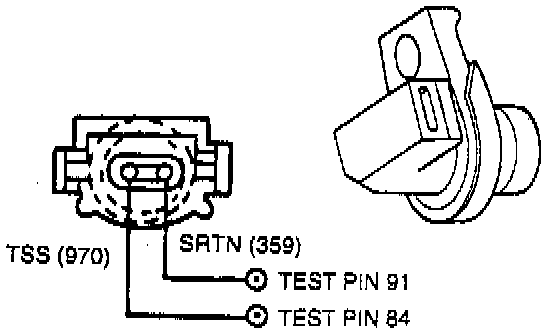

Transmission Speed Sensor (TSS)

DESCRIPTION
Is a magnetic pickup that sends a signal to the PCM that indicates transaxle turbine shaft input speed. The TSS sensor also provides converter turbine speed information for torque converter clutch (TCC) strategy. Also used in determining static pressure settings.

SYMPTOMS
Increased engine rpm on engagements, harsh shifts (converter engaged).

DIAGNOSTIC TROUBLE CODES
P0715
