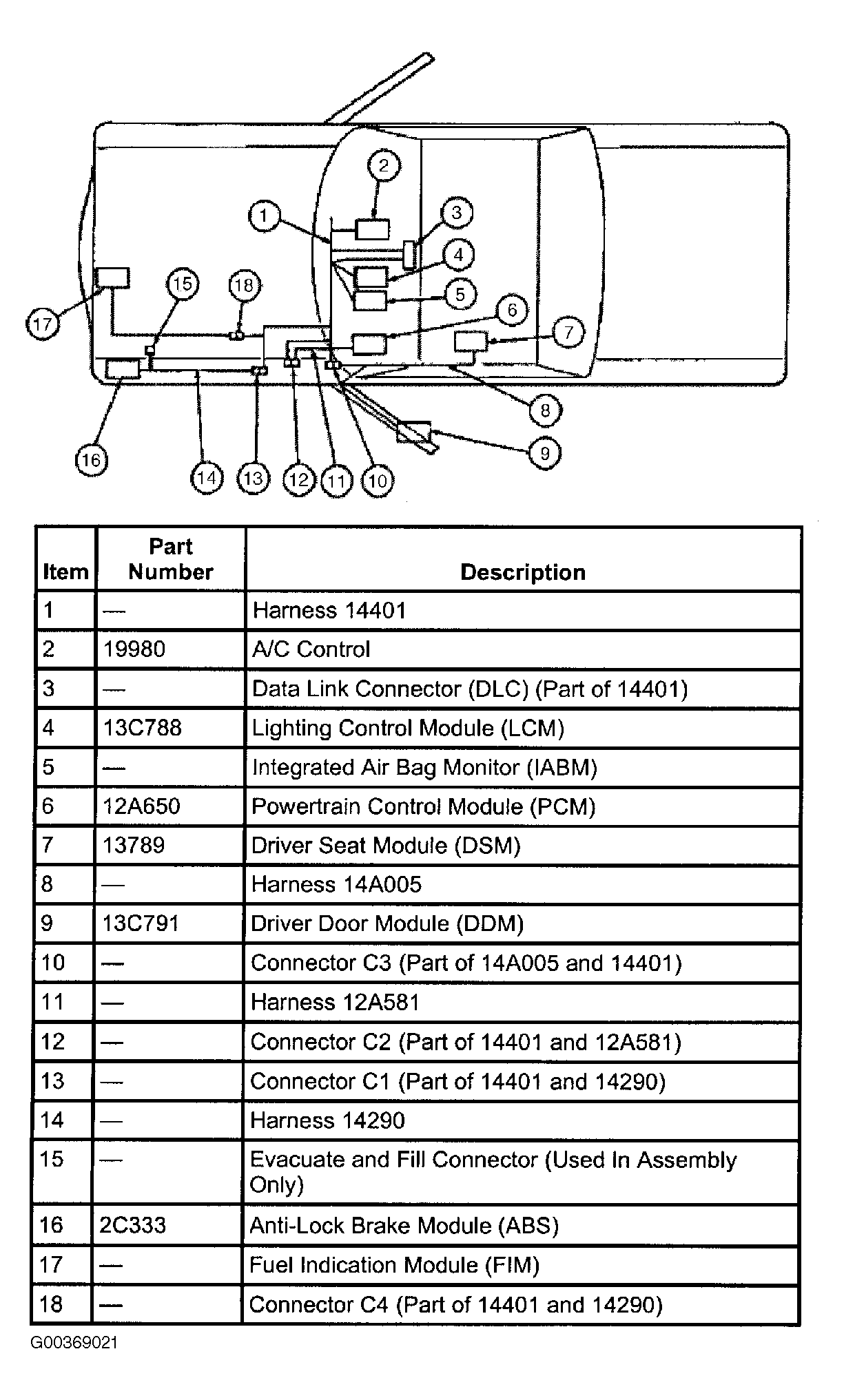

Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Anti-Lock Brake Module (ABS) | Under Battery Tray In Lower Left Engine Compartment |
| Driver's Door Module (DDM) | In Driver's Door Behind Door Trim Panel |
| Driver's Seat Module | Under Driver's Seat |
| Electronic Automatic Temperature Control Module (EATC) | On Evaporator Case In Passenger Compartment On Passenger Side Of Vehicle |
| G101 | Rear Of LH Front Fender Apron |
| Integrated Air Bag Module (IABM) | Behind Instrument Panel, To Right Of Steering Column, As Far Up As Can Be Located |
| Lighting Control Module (LCM) | Under Instrument Panel, To Right Of Steering Column |
| Powertrain Control Module (PCM) | In Engine Compartment On Passenger Side Of Vehicle On Bulkhead |
