Vehicle Calibration

Vacuum diagrams are identified by calibration code. Use the Emission Calibration Label to identify calibration. Calibration label is attached to left door or left door pillar. See Fig 1 . Use calibration code to select vacuum diagram.

NOTE: Vacuum diagrams for calibrations not shown are not available from manufacturer.

Fig 1: Identifying Emission Calibration Label

Courtesy of FORD MOTOR CO.

VACUUM DIAGRAM APPLICATIONS

Application & Calibration Codes

See

Continental

4.6L

5-38D-R15, 5-38R-R15

Fig 2

Contour & Mystique

2.0L

6-03A-R06, 6-03P-R06, 6-04A-R06, 6-04P-R06

Fig 3

2.5L

6-11B-R06, 6-11T-R06, 6-12B-R06, 6-12T-R06

Fig 4

Cougar & Thunderbird

3.8L

6-16F-R06, 6-16T-R06

Fig 5

4.6L

6-18B-R05, 6-18P-R05

Fig 6

Crown Victoria & Grand Marquis

4.6L - Except Natural Gas

6-18F-R05, ⁽¹⁾ 6-18I-R06, 6-18M-R05, 6-18N-R05

Fig 7

Crown Victoria

4.6L Natural Gas

6-18L-R06

Fig 8

Escort & Tracer

1.9L

6-07C-R05, 6-08C-R06

Fig 9

Mark VIII

4.6L

6-38K-R10, 6-38L-R10, 6-38Q-R10

Fig 10

Mustang

3.8L

6-15E-R06, 6-15P-R06, 6-16E-R06, 6-16P-R06

Fig 11

4.6L - Except Cobra

6-19A-R06, 6-19C-R06, 6-19P-R06, 6-19T-R06, 6-20A-R06, 6-20C-R06, 6-20P-R06, 6-20T-R06

Fig 12

4.6L Cobra

6-37M-R06

Fig 13

Sable & Taurus

3.0L OHV

6-10T-R05

Fig 14

3.0L DOHC

6-14S-R07

Fig 15

Taurus

3.0L Flex-Fuel

6-10C-R00

Fig 16

3.4L SHO

6-10D-R06, 6-10M-R06

Fig 17

Town Car

4.6L

6-18E-R05, 6-18J-R05, 6-18Q-R05, 6-18S-R05

Fig 7

⁽¹⁾	Crown Victoria Police Application.

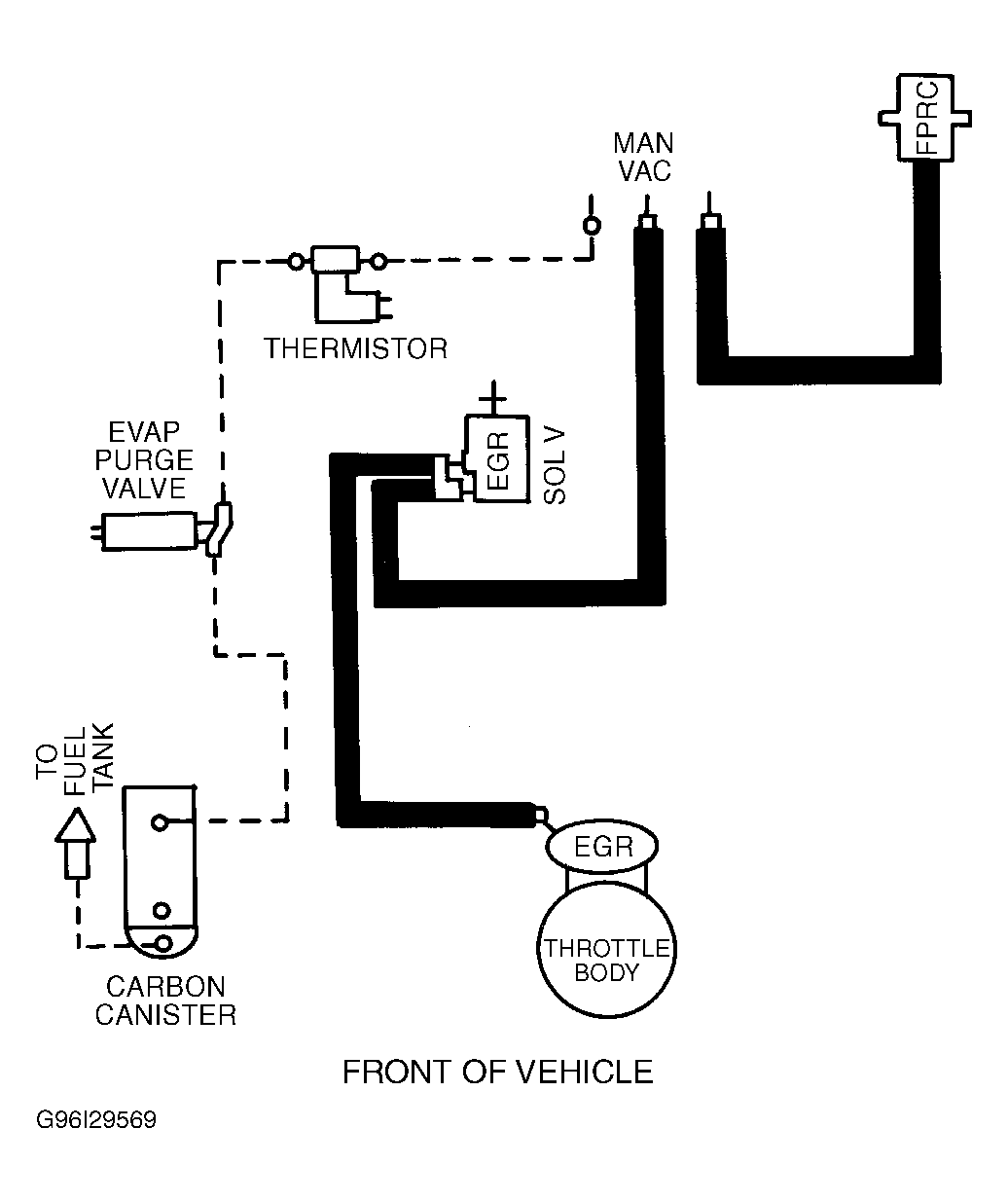

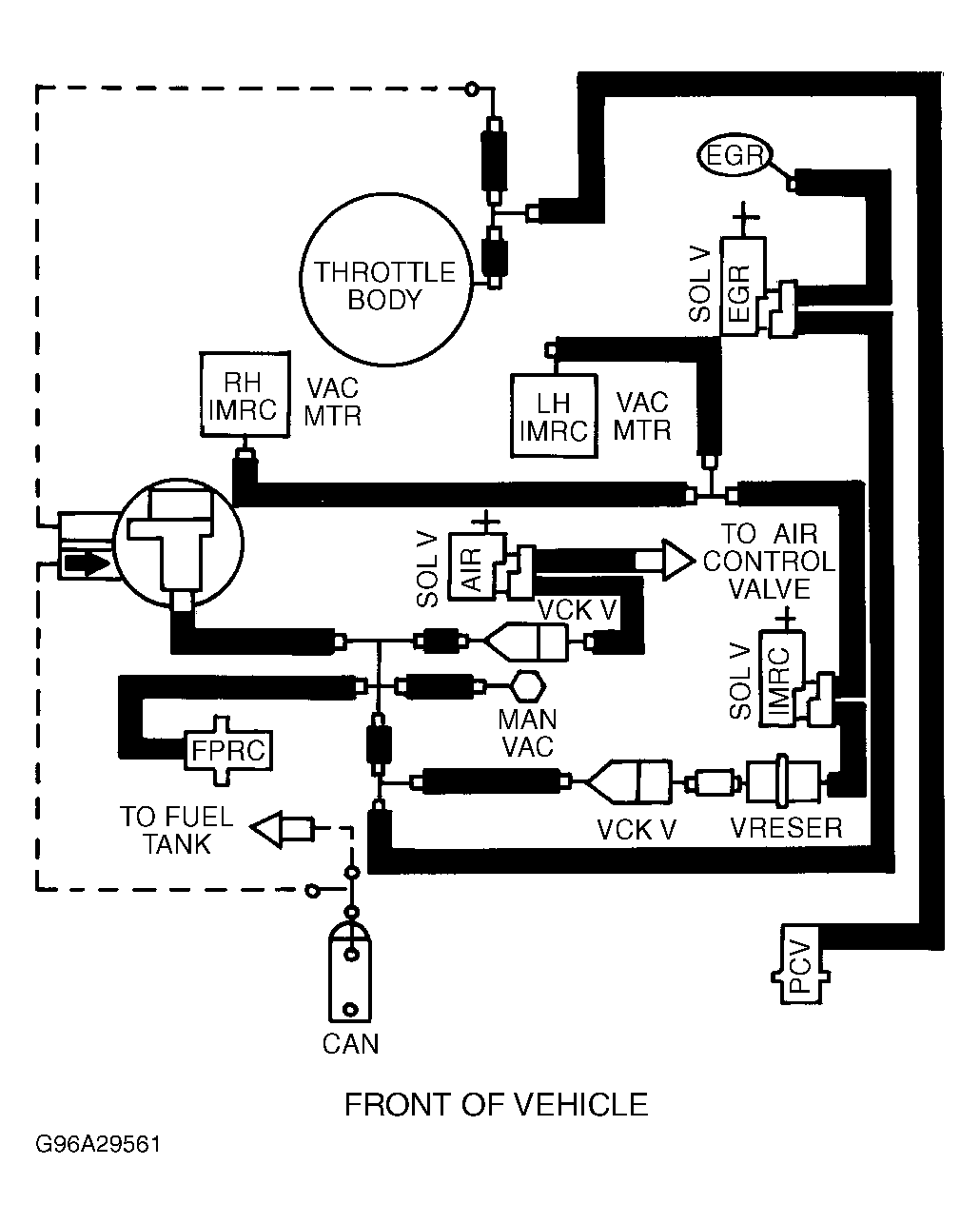

Fig 2: Vacuum Diagram (Continental - 4.6L)

Courtesy of FORD MOTOR CO.

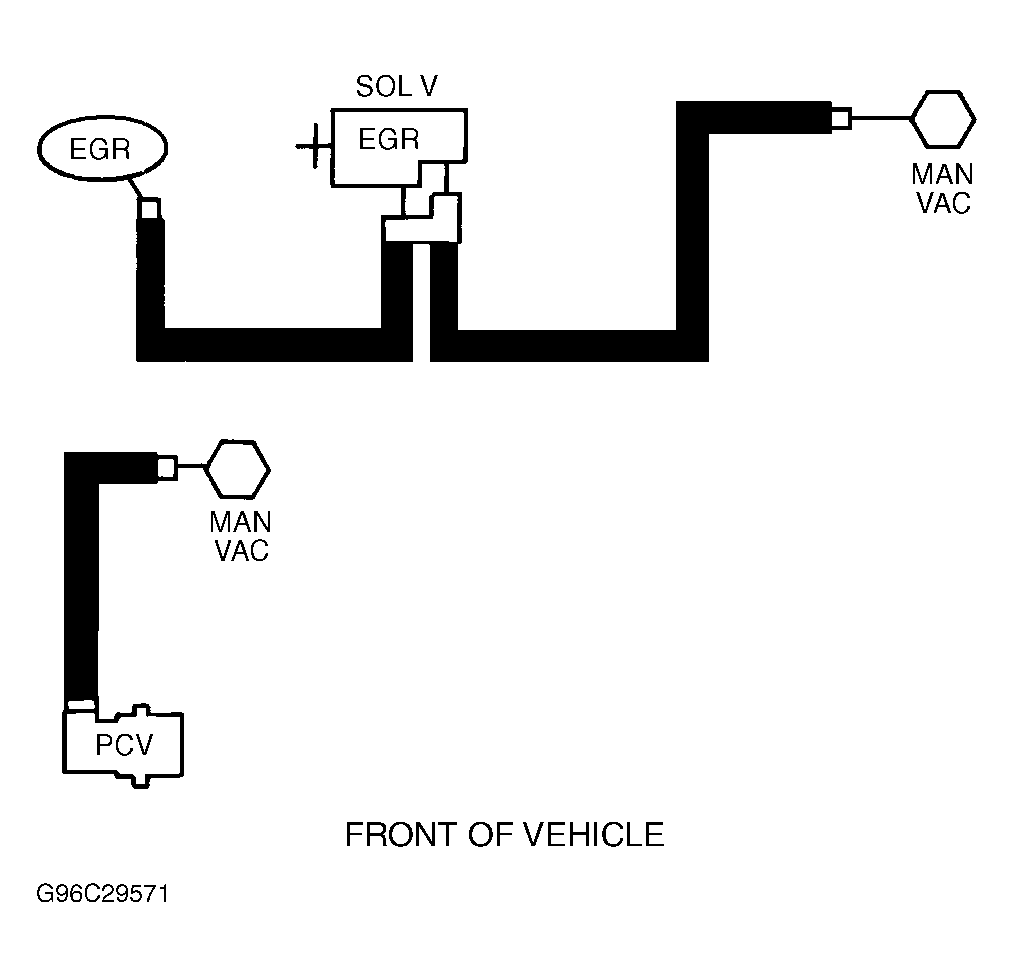

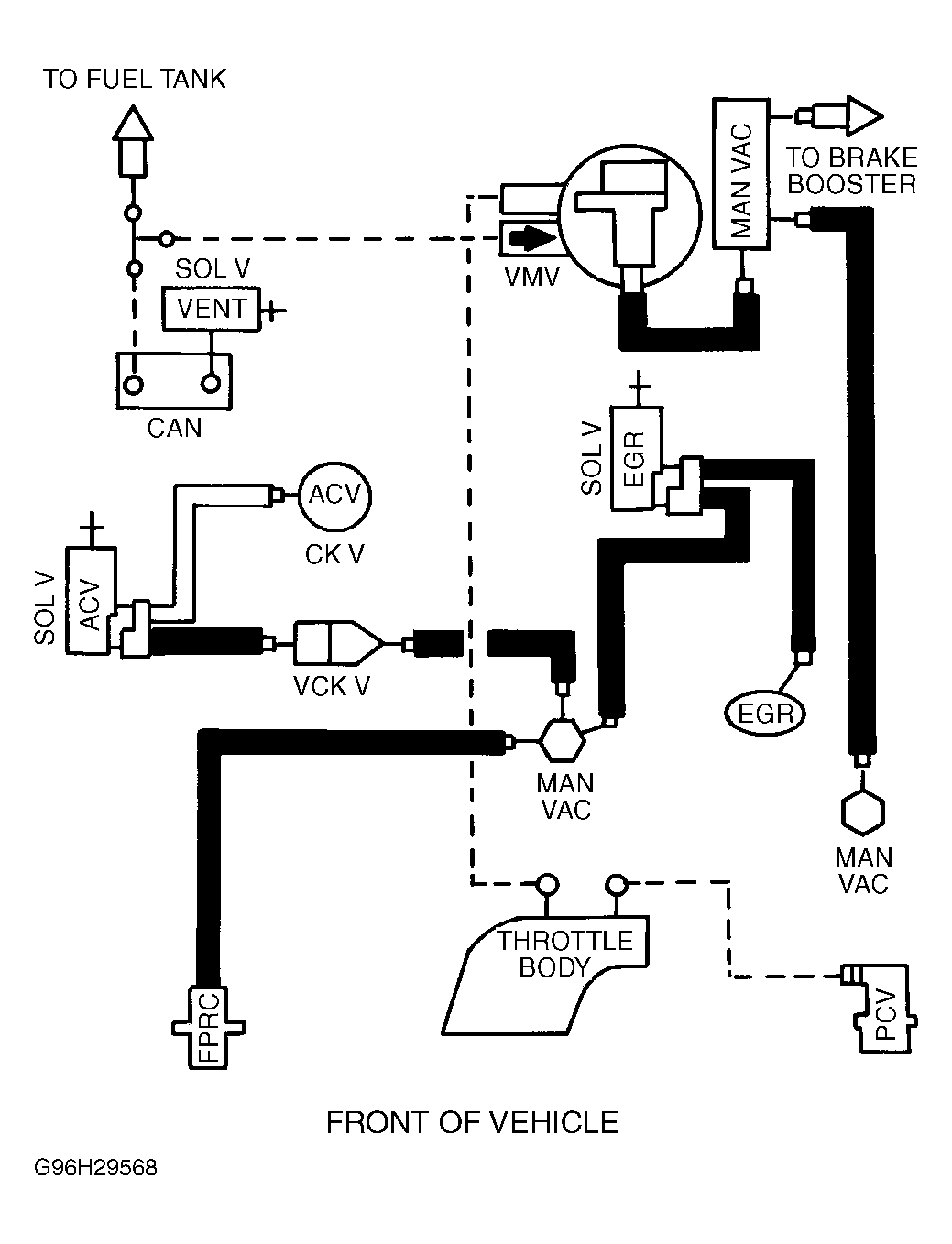

Fig 3: Vacuum Diagram (Contour & Mystique - 2.0L)

Courtesy of FORD MOTOR CO.

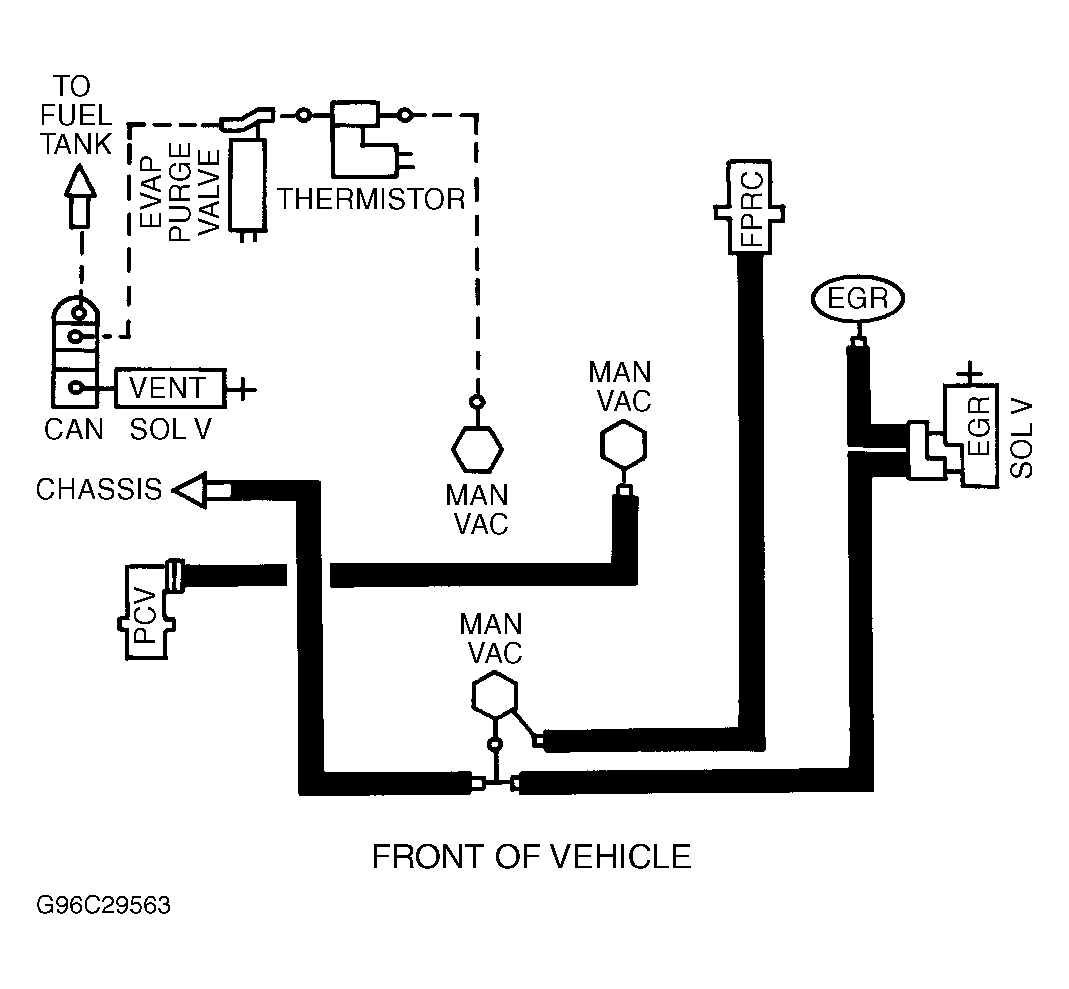

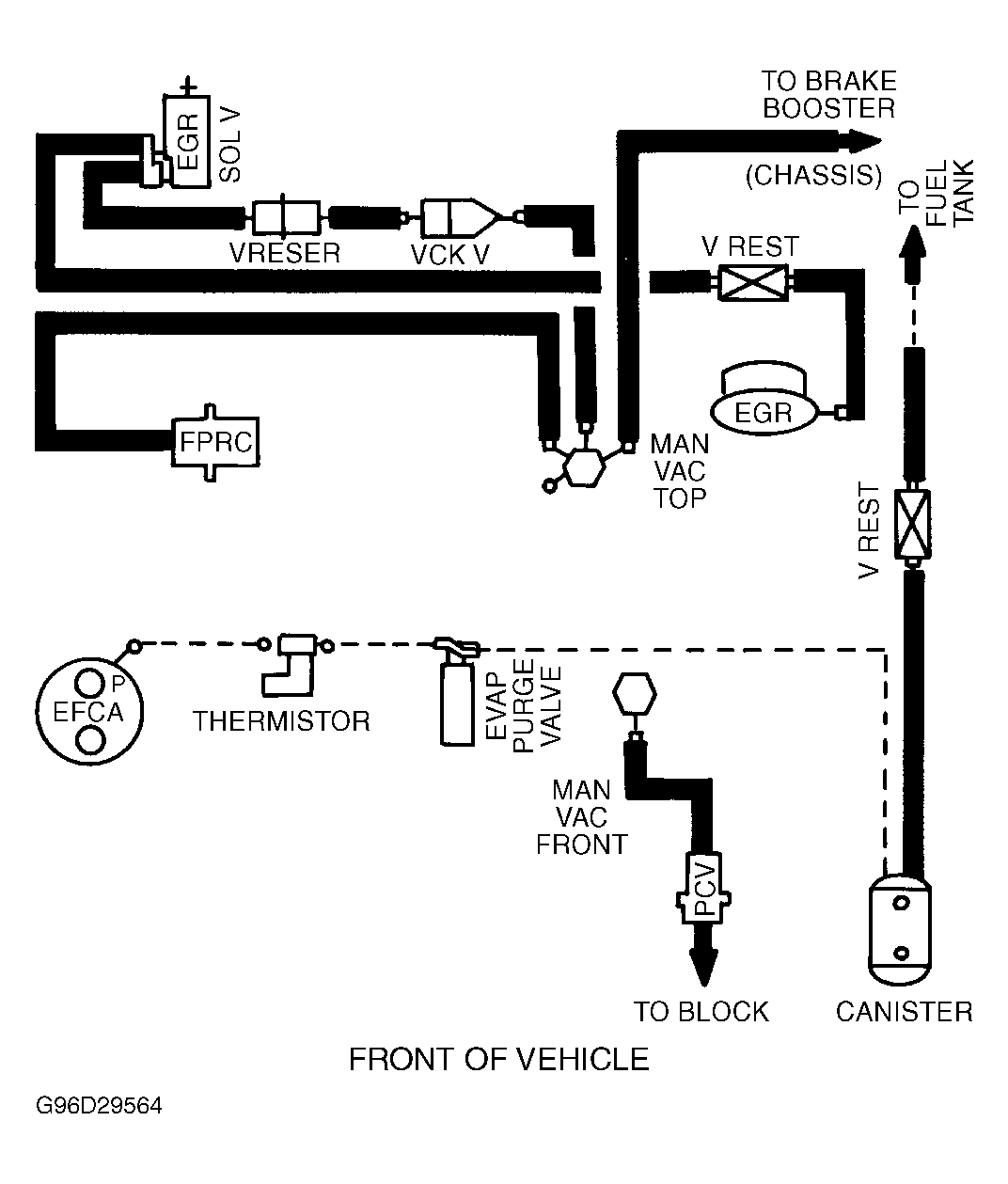

Fig 4: Vacuum Diagram (Contour & Mystique - 2.5L)

Courtesy of FORD MOTOR CO.

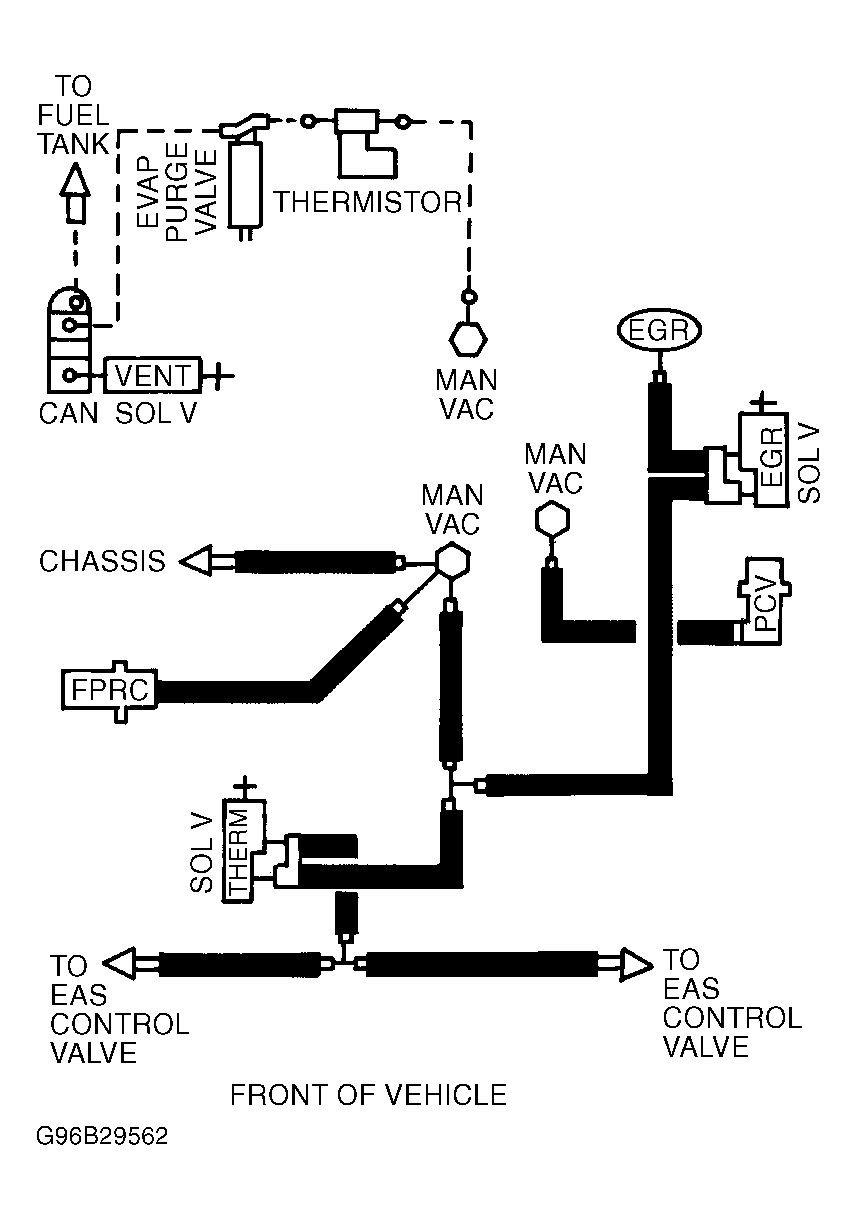

Fig 5: Vacuum Diagram (Cougar & Thunderbird - 3.8L)

Courtesy of FORD MOTOR CO.

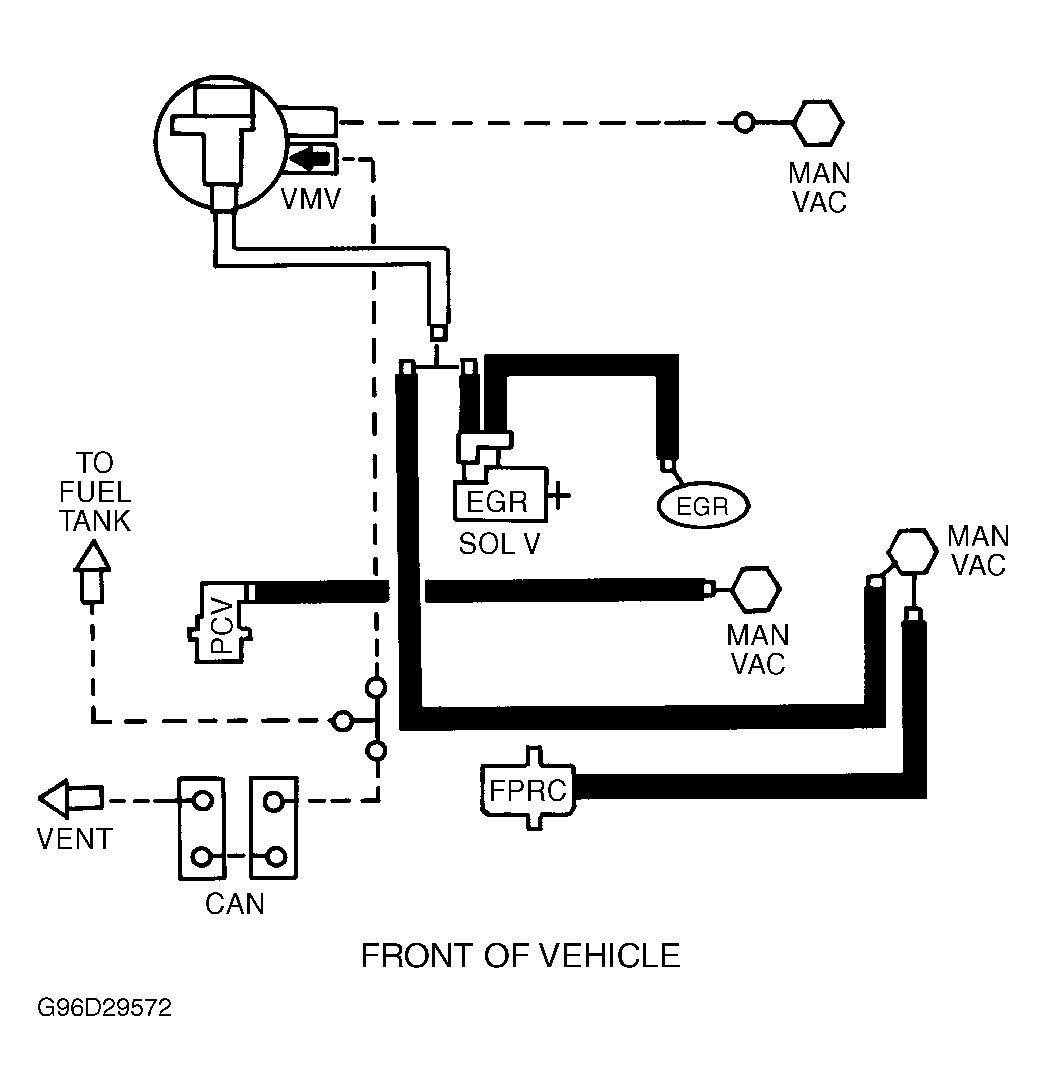

Fig 6: Vacuum Diagram (Cougar & Thunderbird - 4.6L)

Courtesy of FORD MOTOR CO.

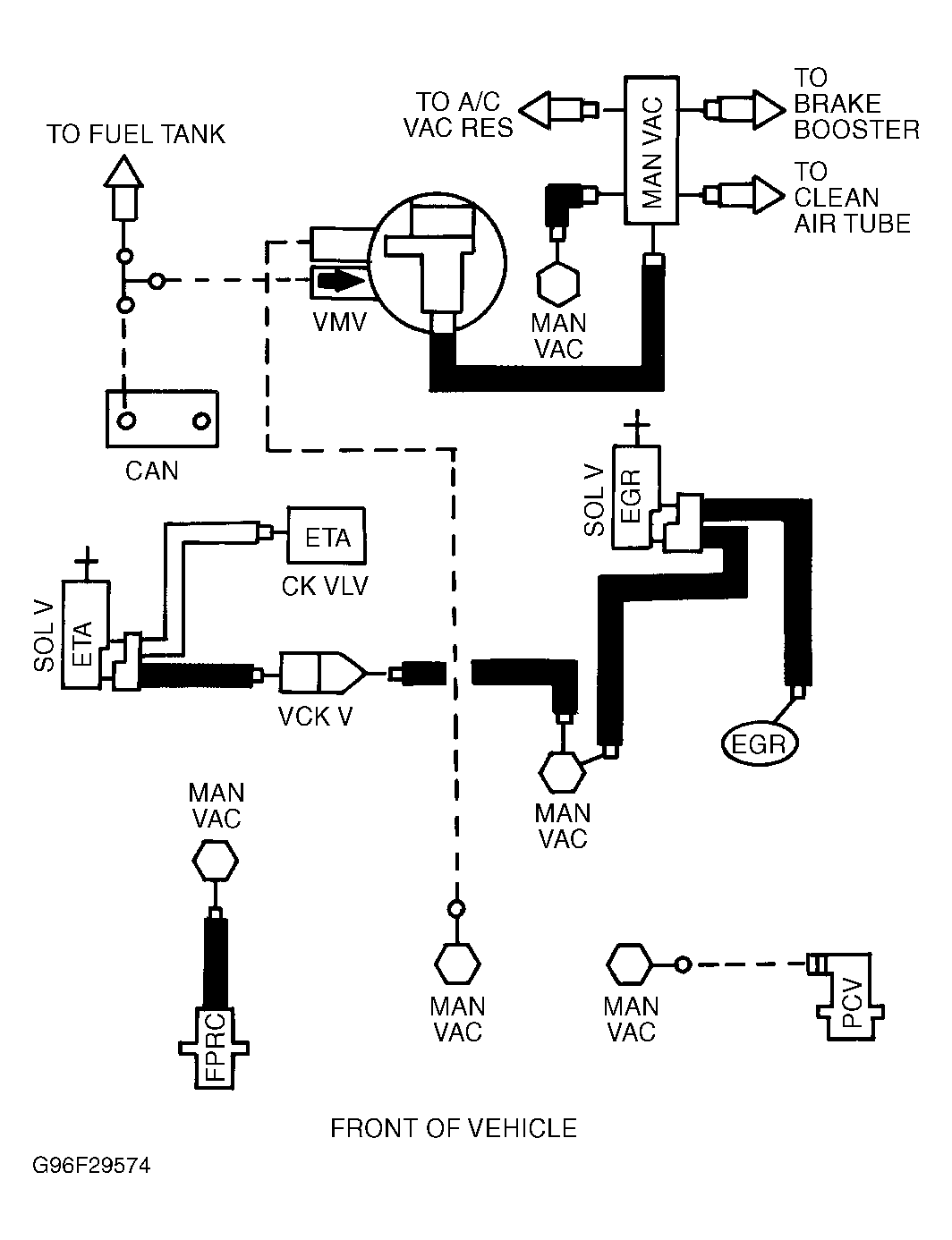

Fig 7: Vacuum Diagram (Crown Victoria, Grand Marquis & Town Car - 4.6L)

Courtesy of FORD MOTOR CO.

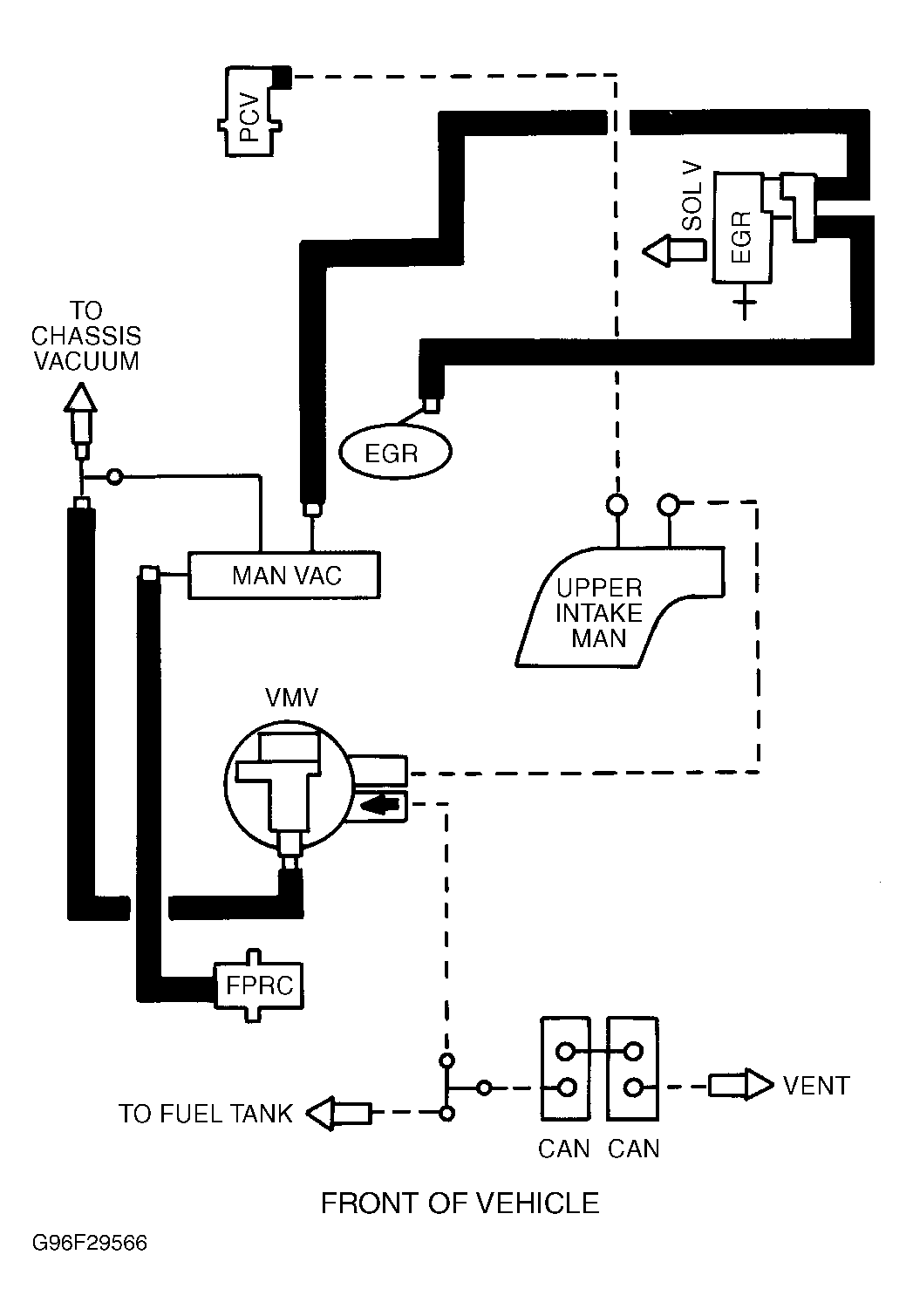

Fig 8: Vacuum Diagram (Crown Victoria - 4.6L Natural Gas)

Courtesy of FORD MOTOR CO.

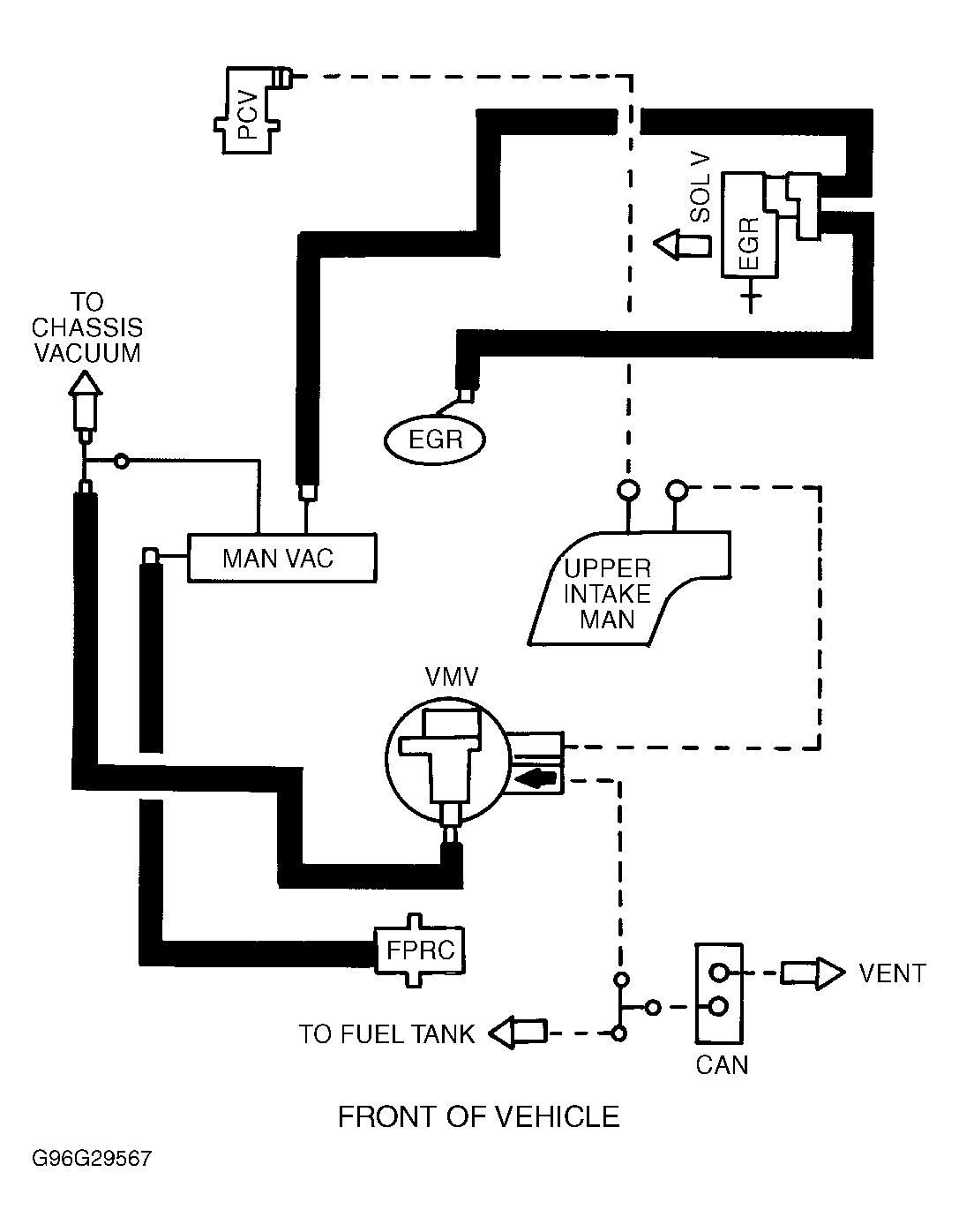

Fig 9: Vacuum Diagram (Escort & Tracer - 1.9L)

Courtesy of FORD MOTOR CO.

Fig 10: Vacuum Diagram (Mark VIII - 4.6L)

Courtesy of FORD MOTOR CO.

Fig 11: Vacuum Diagram (Mustang - 3.8L)

Courtesy of FORD MOTOR CO.

Fig 12: Vacuum Diagram (Mustang - 4.6L - Except Cobra)

Courtesy of FORD MOTOR CO.

Fig 13: Vacuum Diagram (Mustang - 4.6L Cobra)

Courtesy of FORD MOTOR CO.

Fig 14: Vacuum Diagram (Sable & Taurus - 3.0L OHV - Except Flex-Fuel)

Courtesy of FORD MOTOR CO.

Fig 15: Vacuum Diagram (Sable & Taurus - 3.0L DOHC - Except Flex-Fuel)

Courtesy of FORD MOTOR CO.

Fig 16: Vacuum Diagram (Taurus - 3.0L Flex-Fuel)

Courtesy of FORD MOTOR CO.

Fig 17: Vacuum Diagram (Taurus - 3.4L SHO)

Courtesy of FORD MOTOR CO.
