Lock Cylinder: Installation

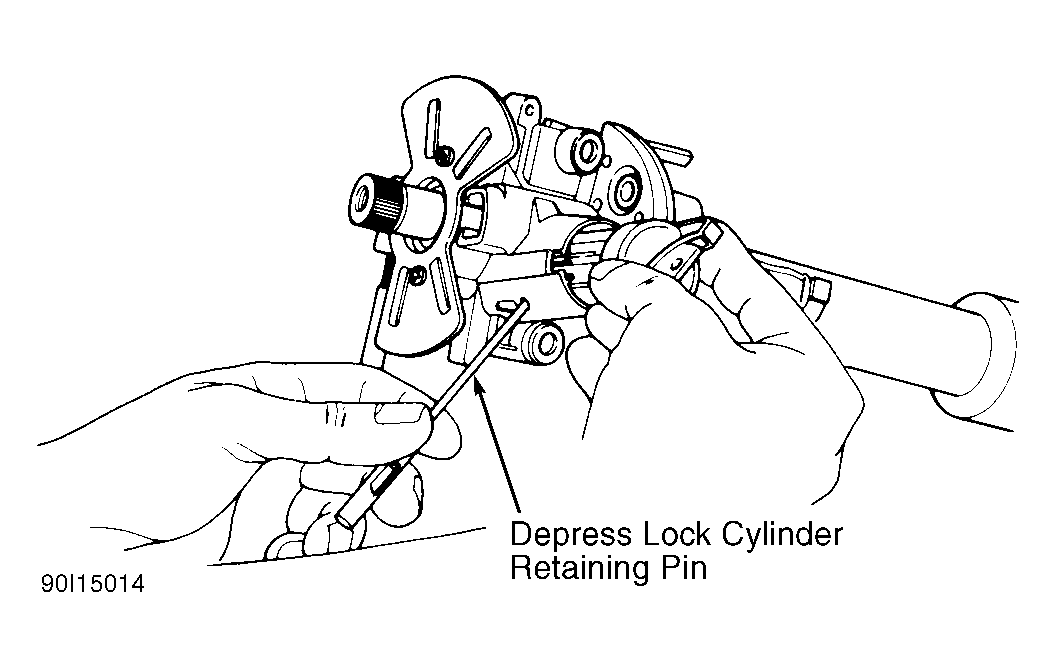

- Turn lock cylinder to RUN position. Depress retaining pin. Insert lock cylinder into housing. Ensure tab on end of lock cylinder aligns with slot in ignition drive gear and lock cylinder is fully engaged in housing.
- Using key, turn lock cylinder to OFF position. To complete installation, reverse removal procedure. Check lock cylinder and ignition switch functions. Ensure column locks when switch is in LOCK position.
Courtesy of FORD MOTOR CO.
- Install ignition drive gear, bearing and bearing retainer. Lubricate cylinder cavity with lock cylinder lubricant. Turn ignition switch to RUN position. Depress retaining pin, and insert NEW lock cylinder into housing.
- Ensure tab on end of lock cylinder aligns with slot in ignition drive gear. Using key, turn lock cylinder to OFF position to engage cylinder retaining pin into cylinder housing hole. To complete installation, reverse removal procedure. Check lock cylinder functions. Ensure column locks when switch is in LOCK position.
