Rear Thrust Angle

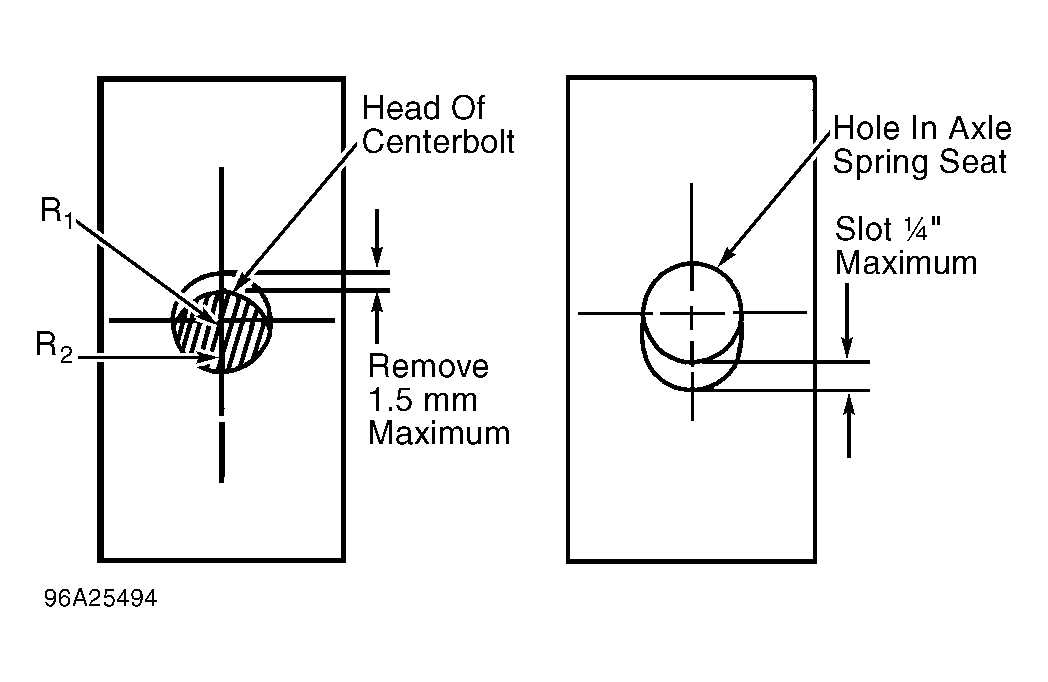

- If thrust angle is 0-.3 degrees, modify spring center bolt on side which axle must be moved. Grind and radius head of center bolt to match radius of hole in spring seat. See Fig 1 .
- If thrust angle is .3 degrees or greater grind and radius head of center bolt and elongate hole in spring mounting bracket.
