Generic Electronic Module

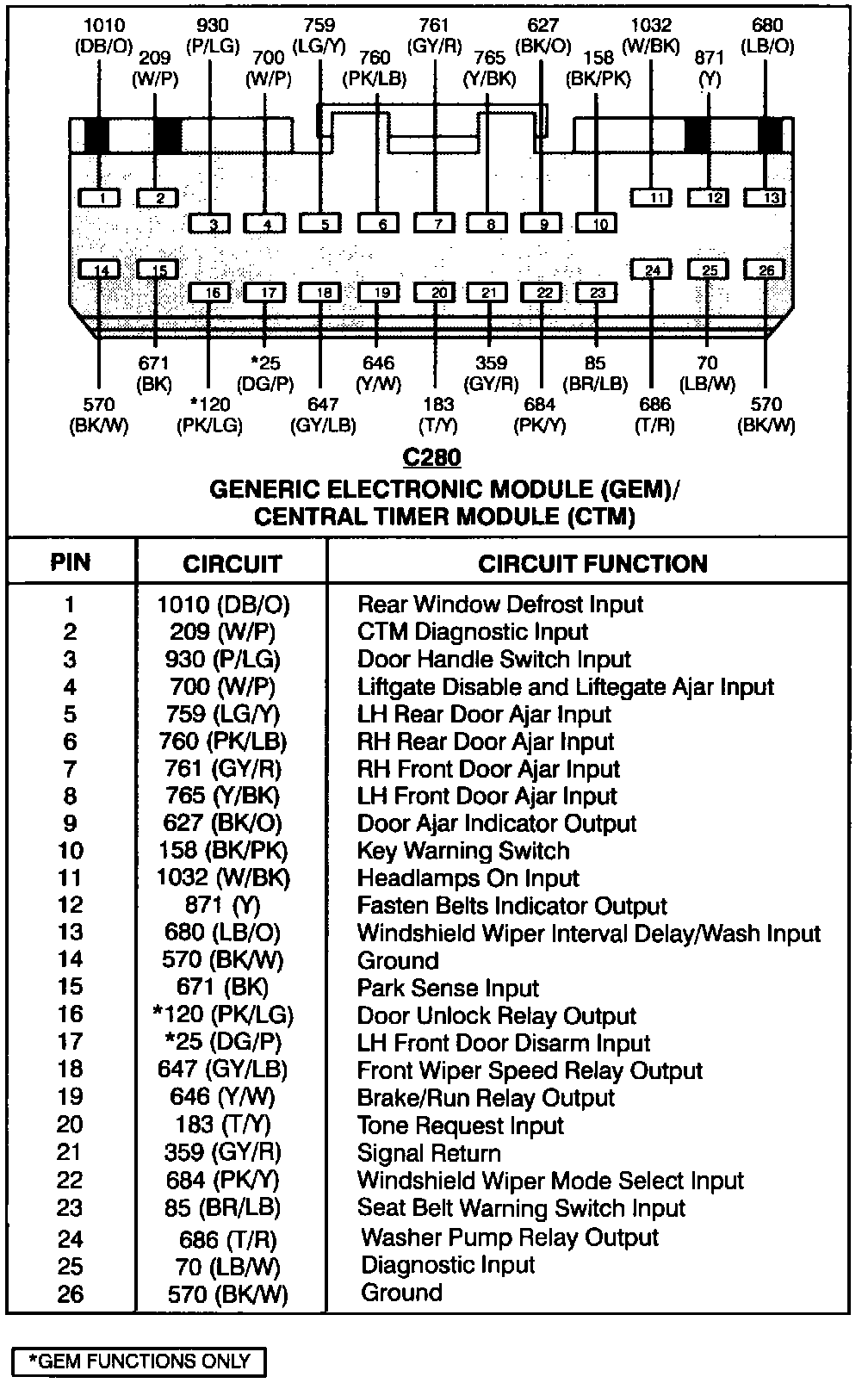

Generic Electronic Module/Central Timer Module (C280):

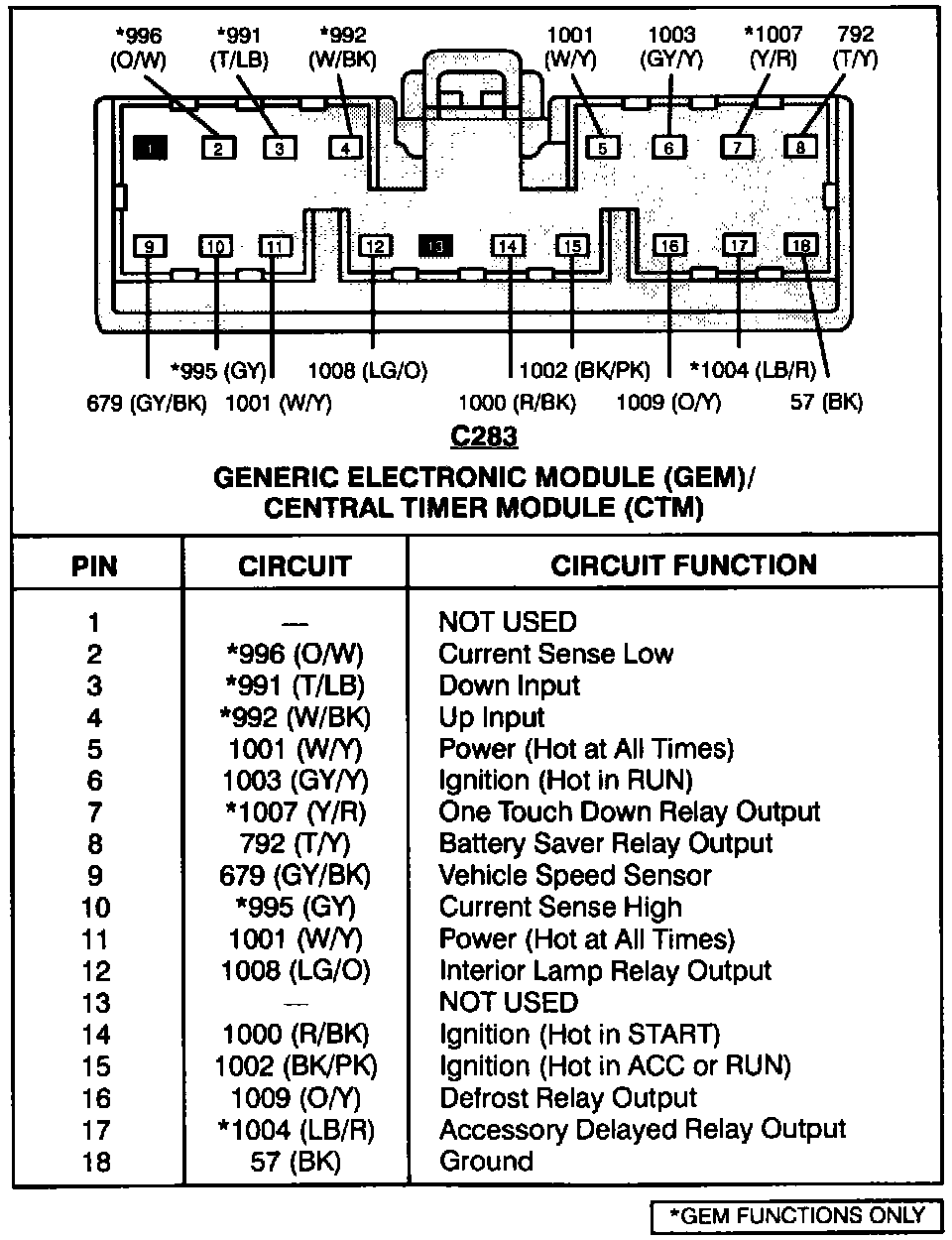

Generic Electronic Module/Central Timer Module (C283):

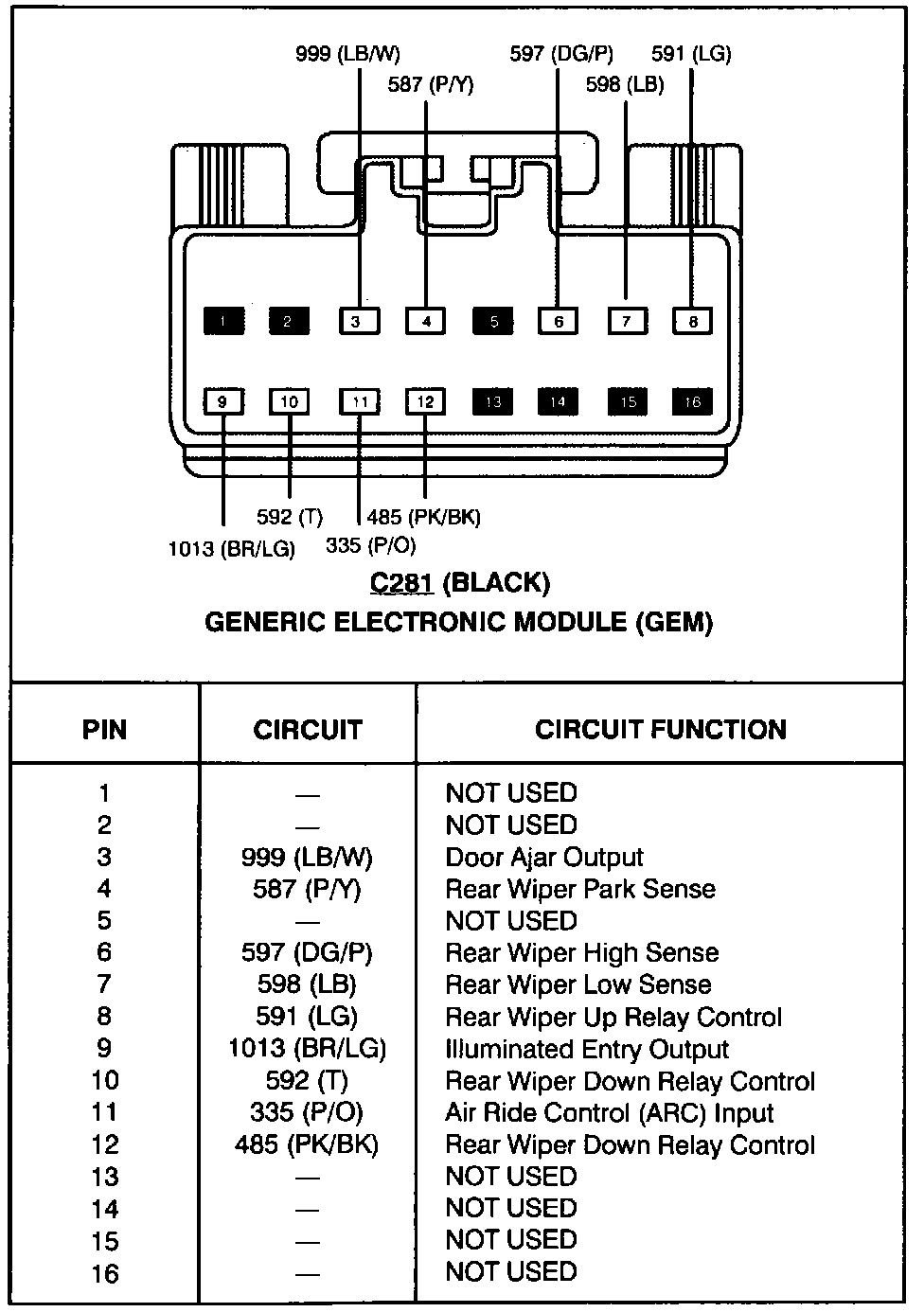

Generic Electronic Module (C281):

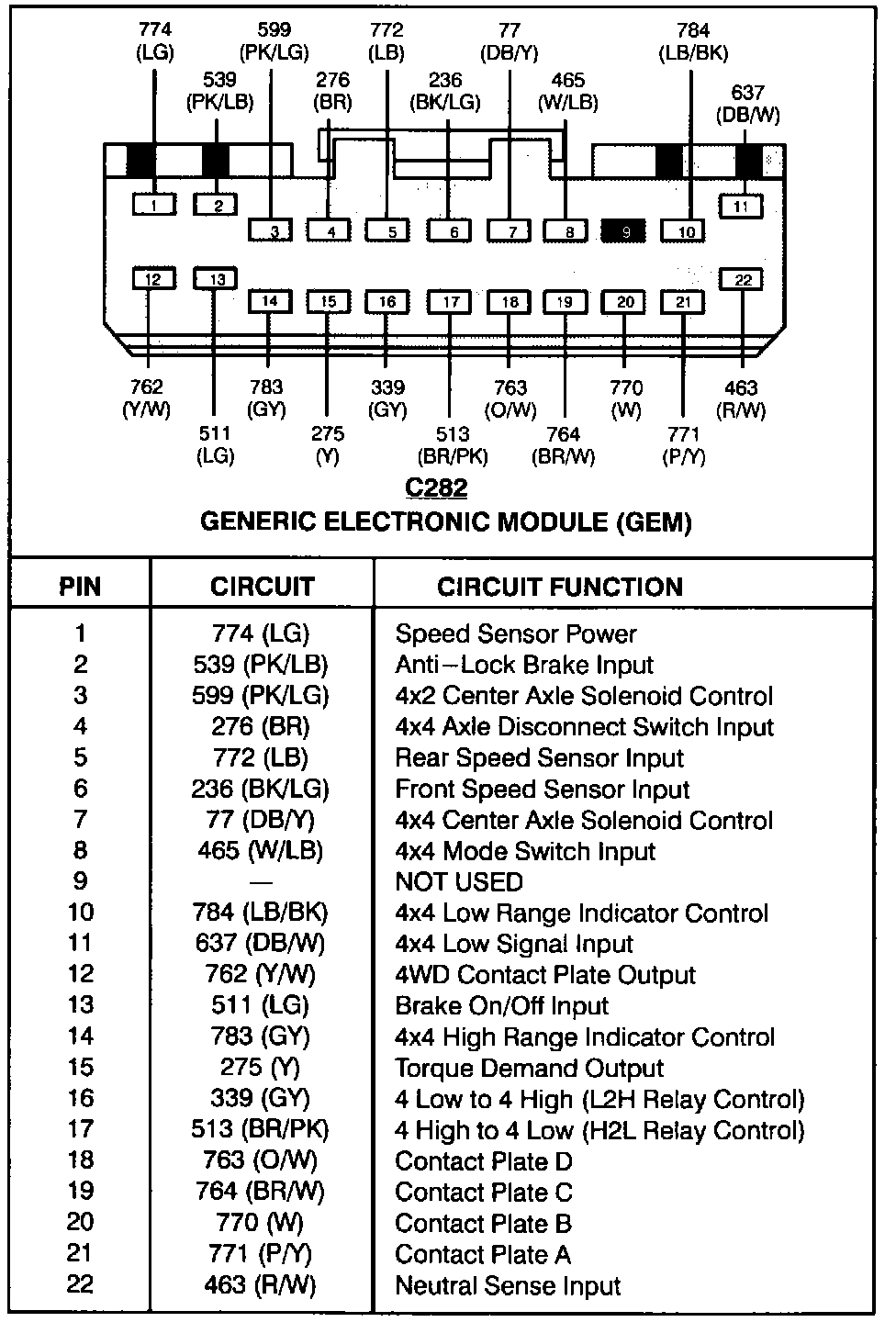

Generic Electronic Module (C282):
