Master Window Control Switch

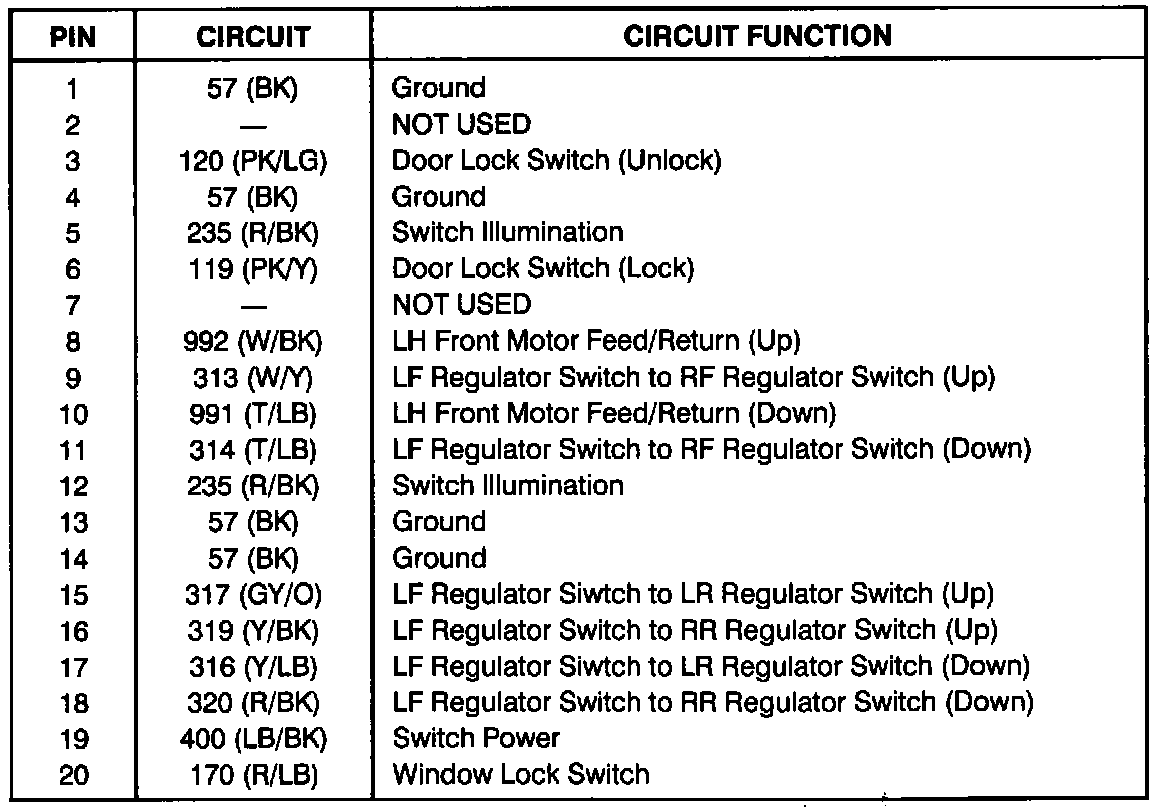

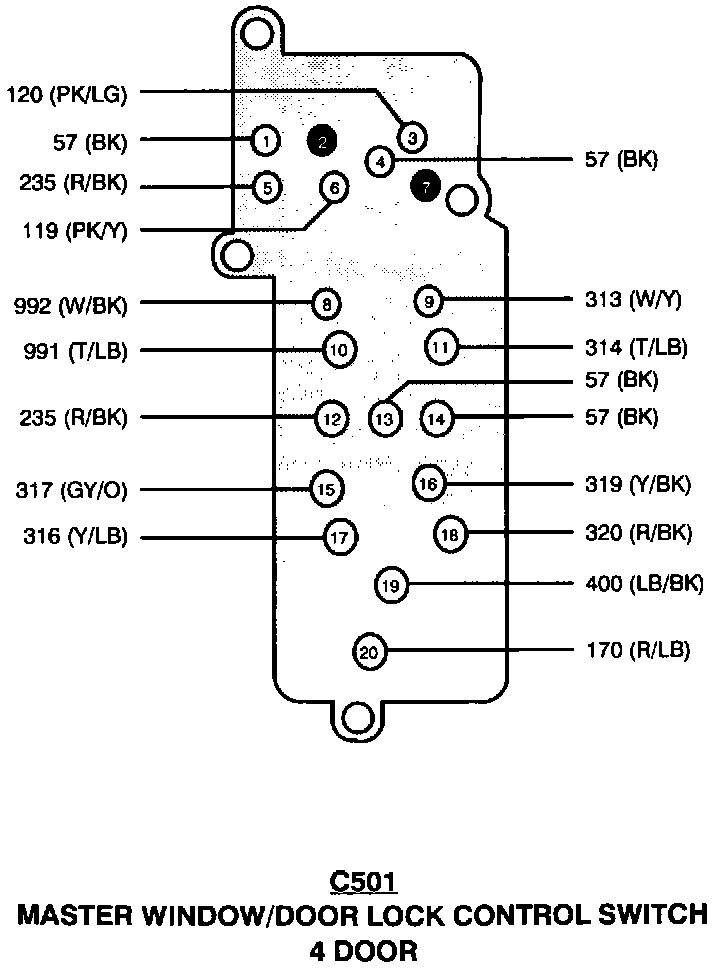

Master Window Control Switch - 4 Door (Part 1 Of 2):



Master Window Control Switch - 4 Door (Part 2 Of 2):
