Cylinder Head

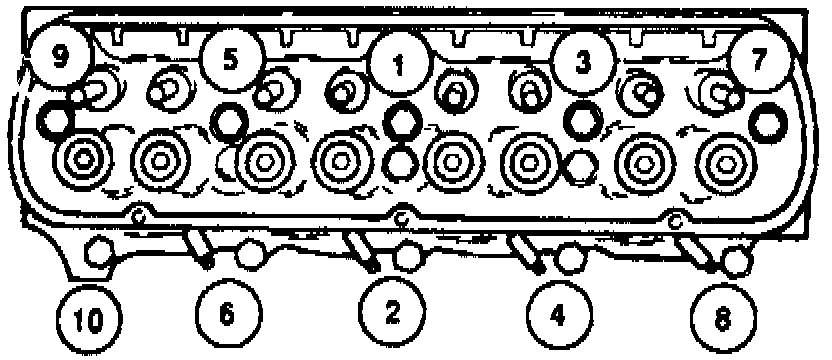

Fig. 5 Cylinder Head Bolt Tightening Sequence.:

Torque cylinder head bolts in sequence, in three steps:
- First to 25 - 35 ft. lbs.
- Then to 45 - 55 ft. lbs.,
- Then one additional 1/4 turn.
