Alarm Module, (Vehicle Antitheft)

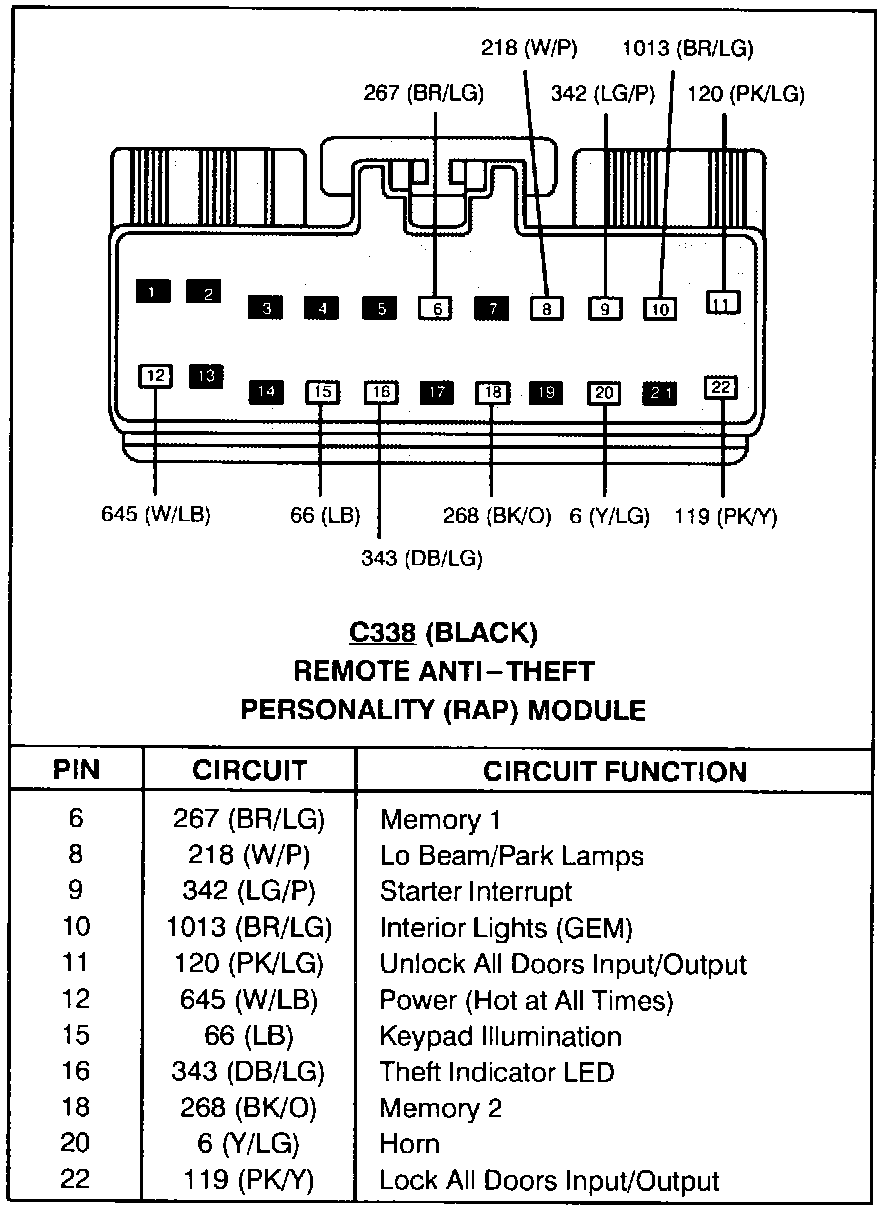

Remote Anti-Theft Personality Module (C338):

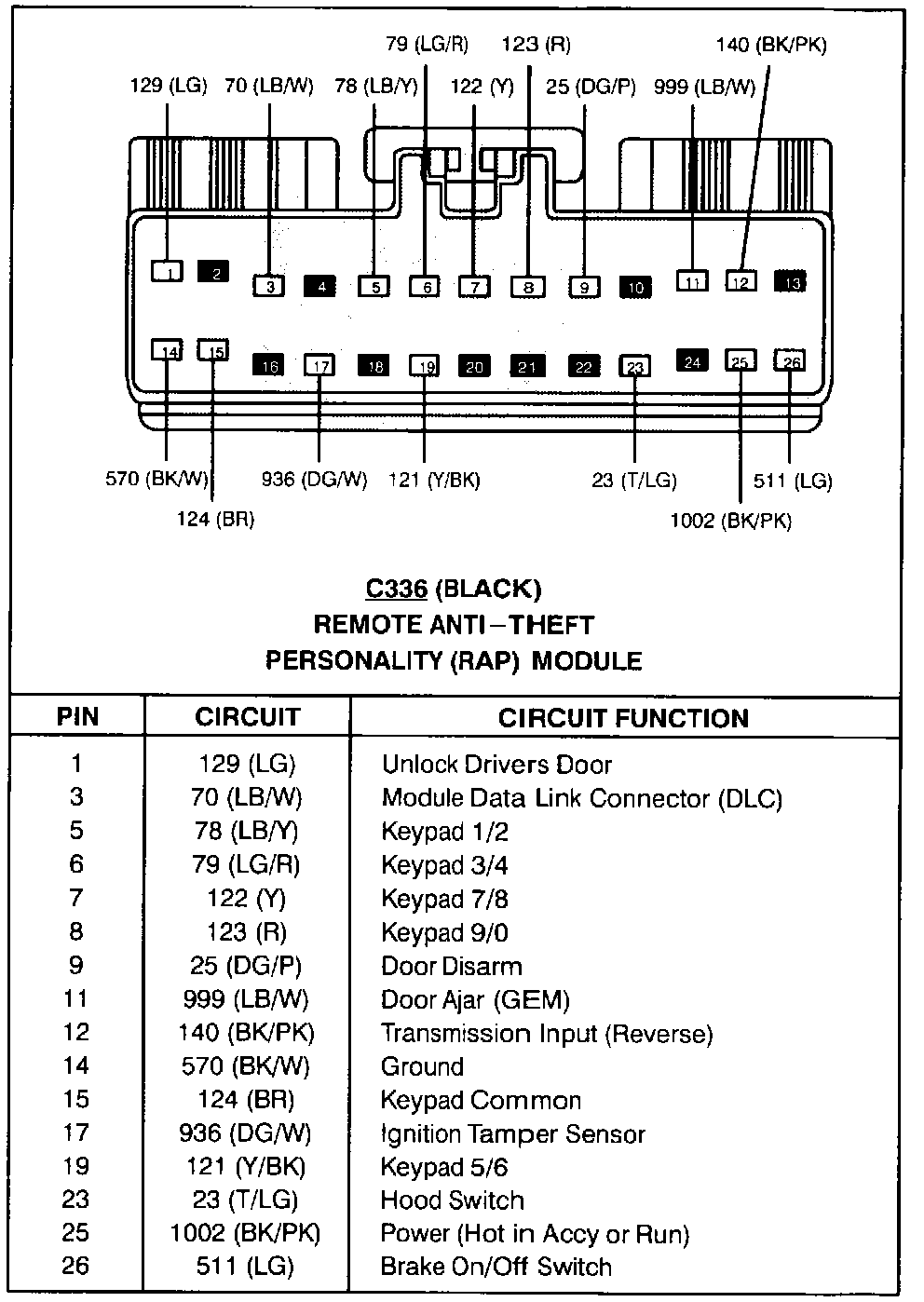

Remote Anti-Theft Personality Module (C336):
