Anti-Theft Controller Module

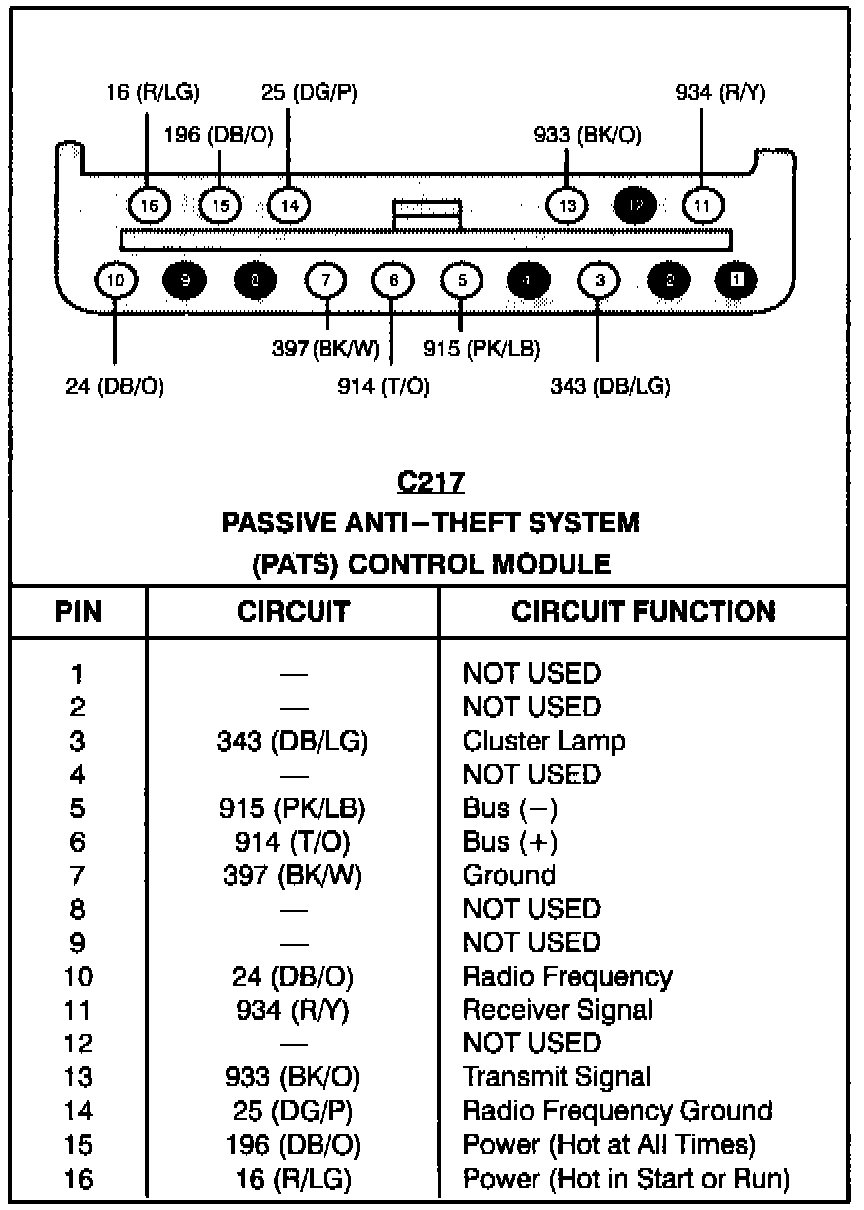

Passive Anti-Theft System Control Module:

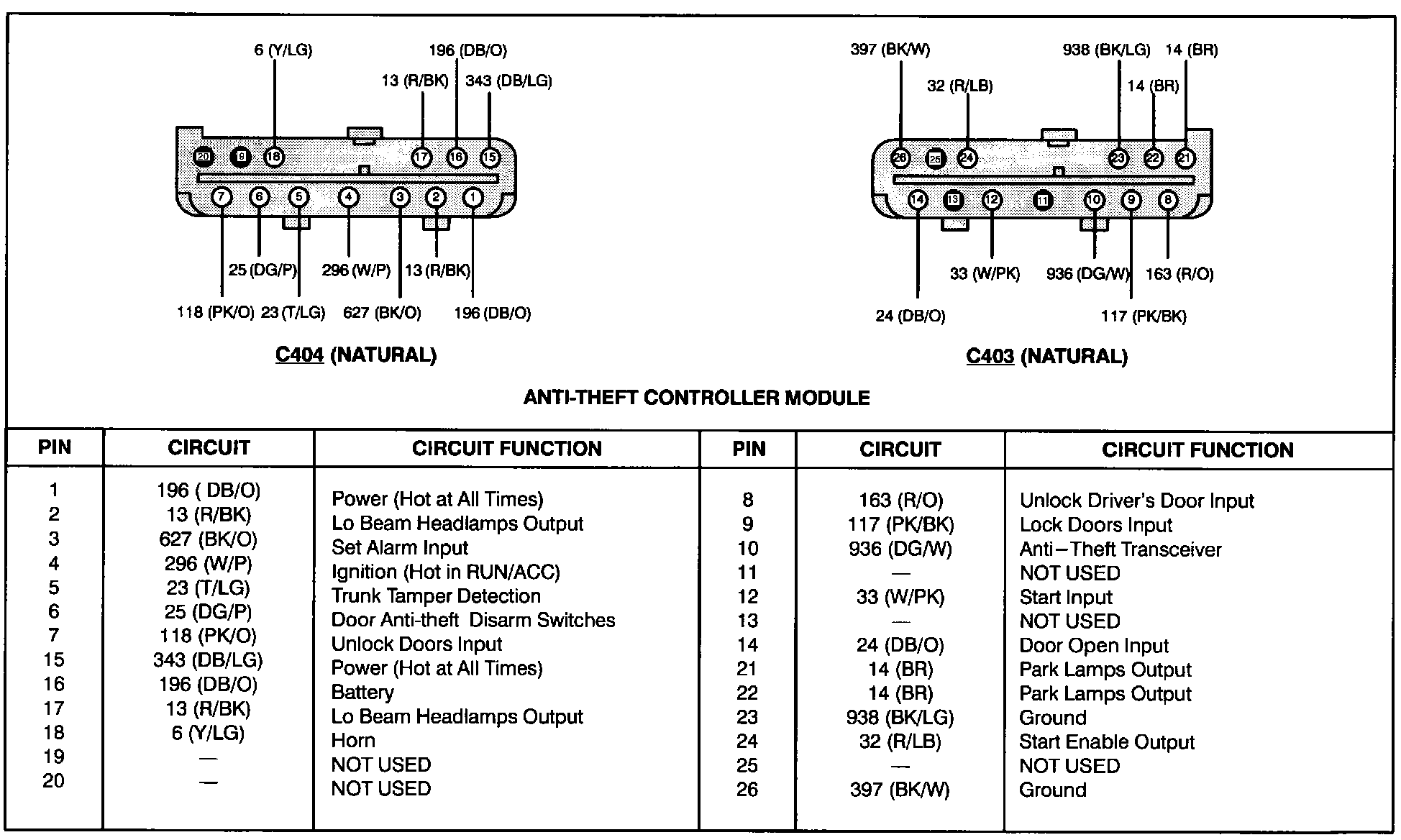

Anti-Theft Controller Module:
