A/C Heater Control Assembly

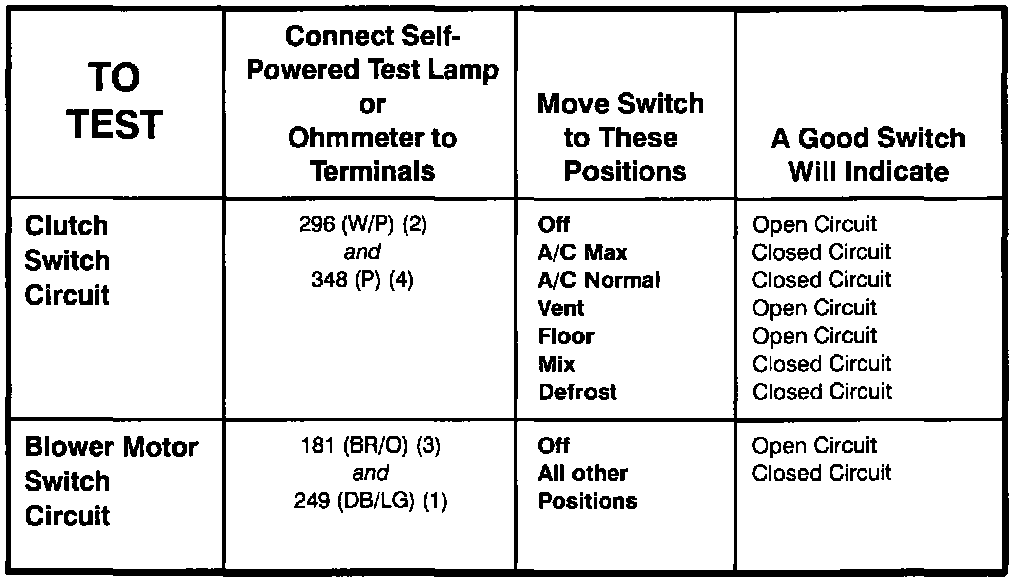

A/C Heater Control Assembly-Component Testing Procedure:

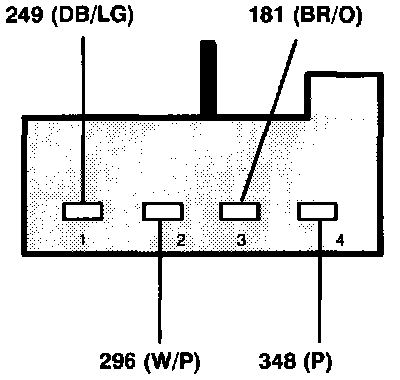

A/C Heater Control Assembly-Terminal Locations:

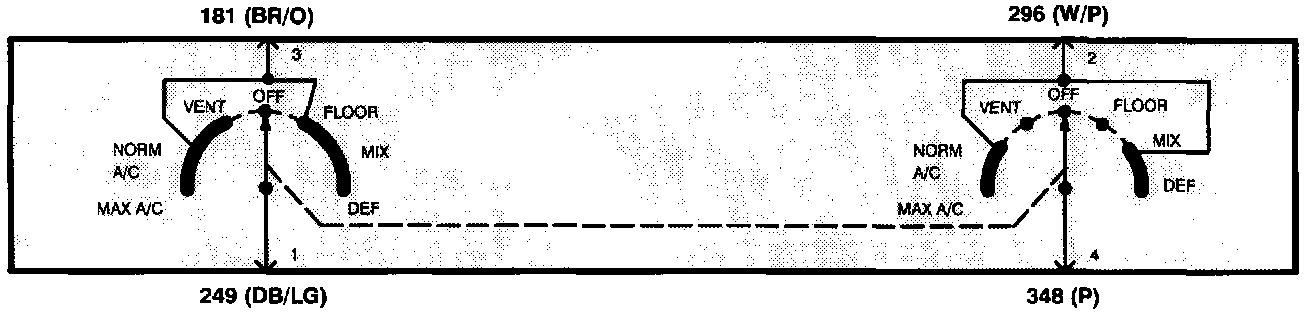

A/C Heater Control Assembly-Schematic:
