Heater Control Assembly

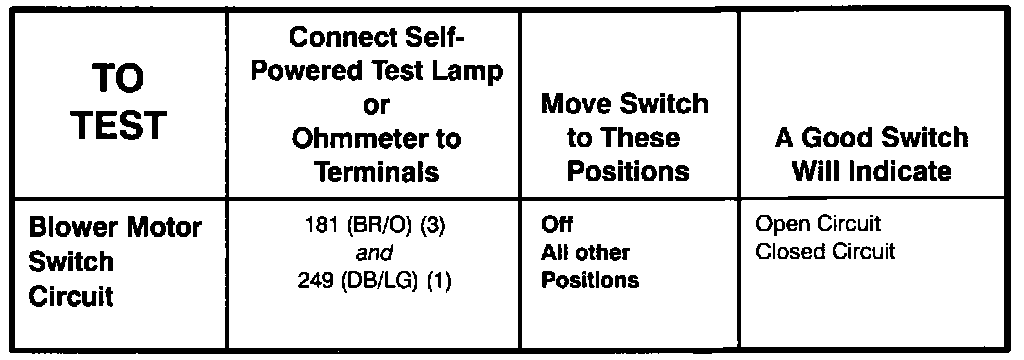

Heater Control Assembly-Component Testing Procedure:

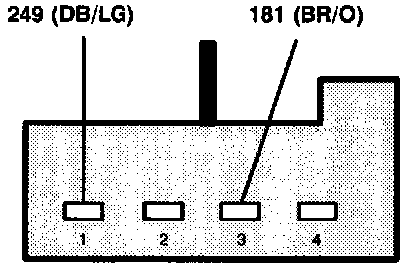

Heater Control Assembly-Terminal Locations:

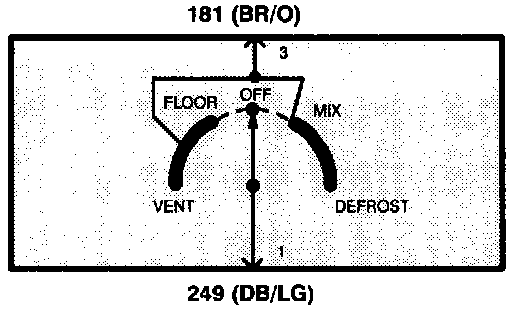

Heater Control Assembly-Schematic:
