Throttle Position Sensor: Locations

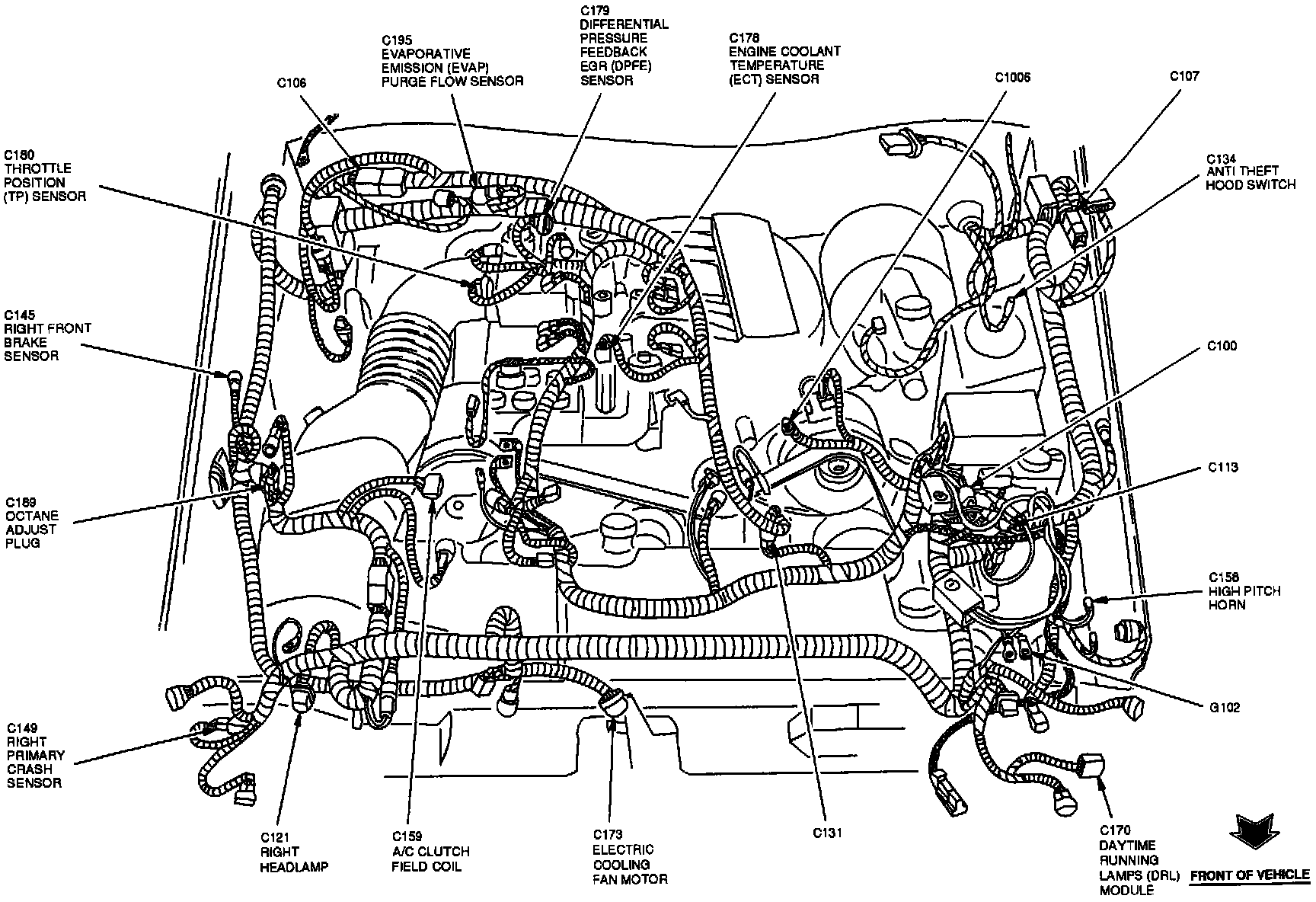

Engine View:





The Throttle Position Sensor is located at the top rear of the engine, on throttle body.
