Transmission Position Sensor/Switch: Locations

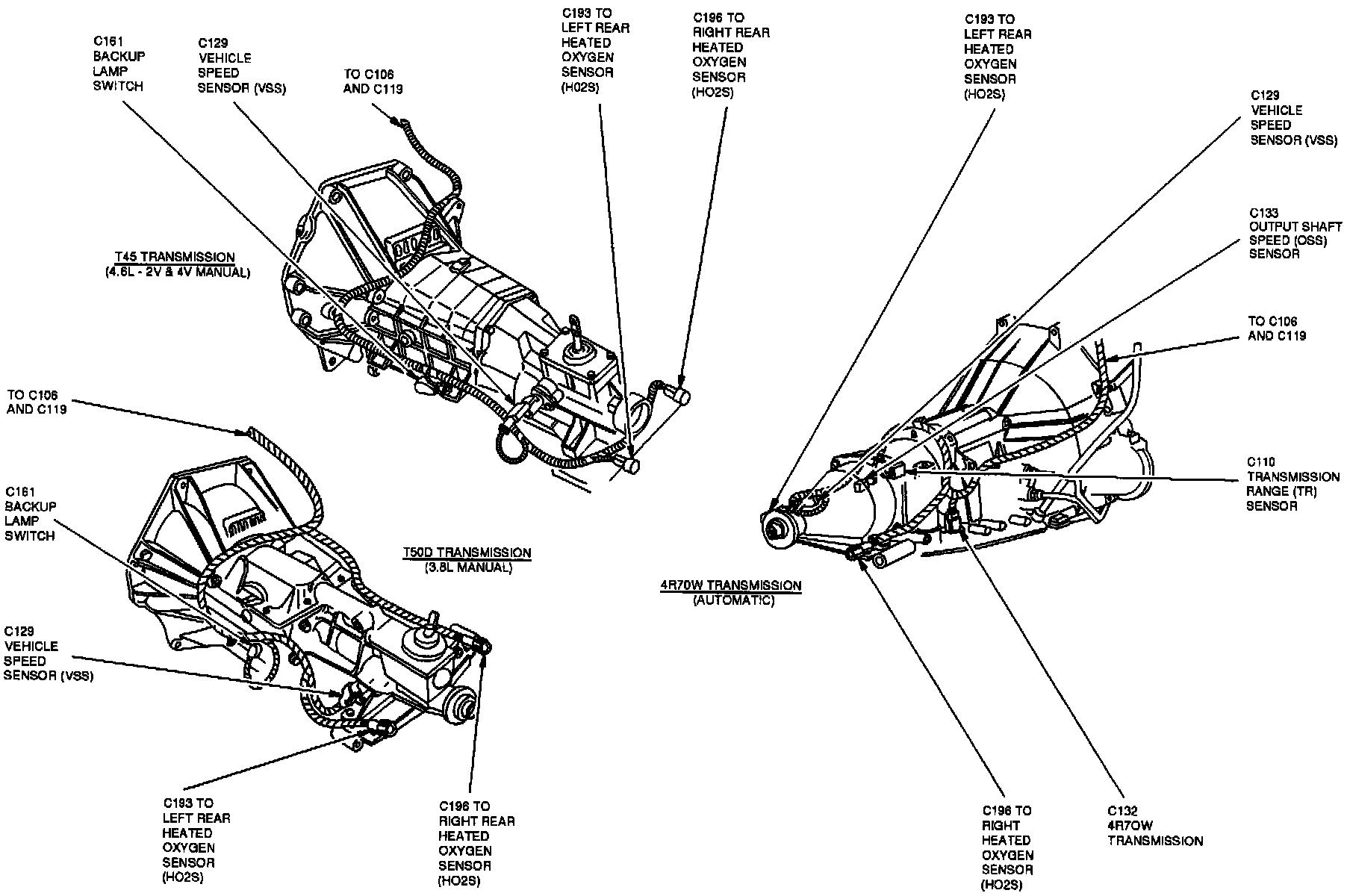

Transmission View:





The Transmission Range Sensor is located at rear LH side of transmission.
