Intake Manifold

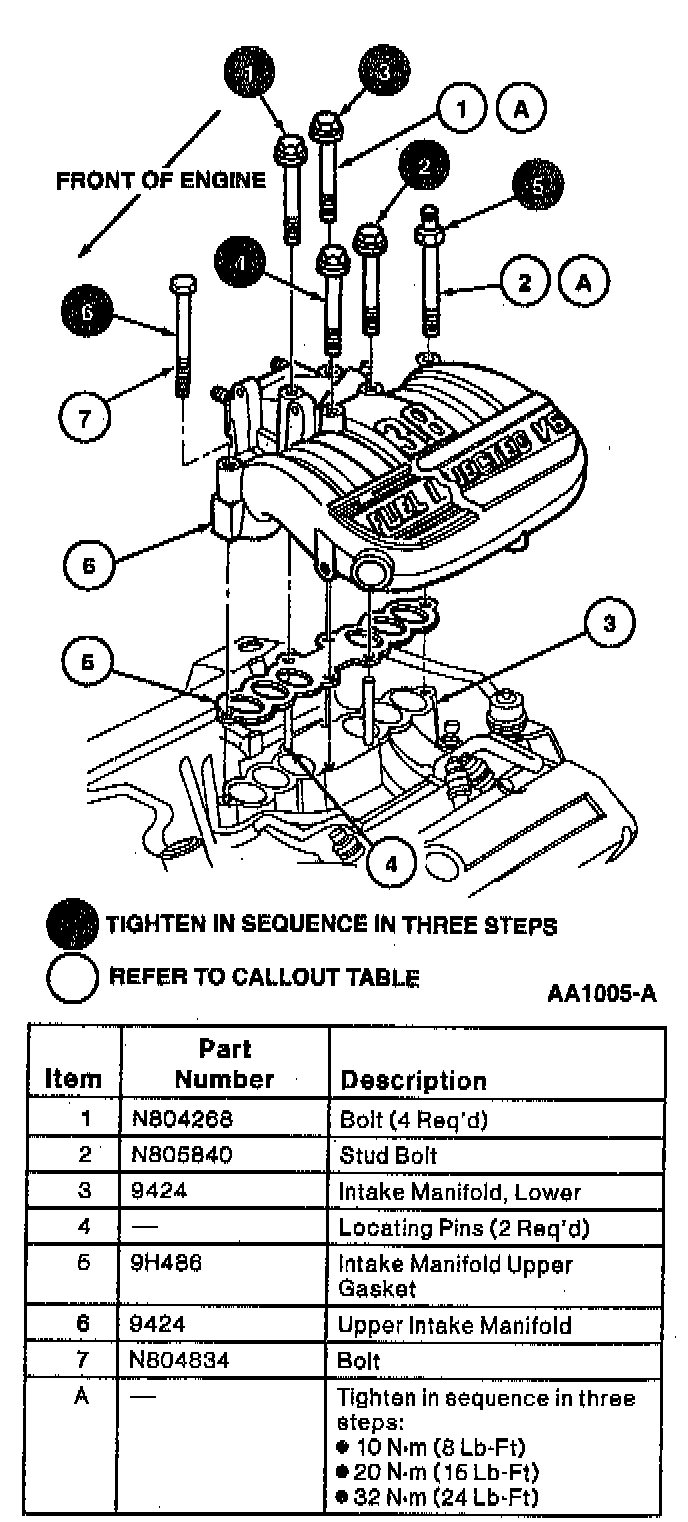

UPPER





Tighten in sequence shown in three steps:
Step 1 ... 10 Nm (8 ft. lbs.)
Step 1 ... 20 Nm (15 ft. lbs.)
Step 1 ... 32 Nm (23 ft. lbs.)

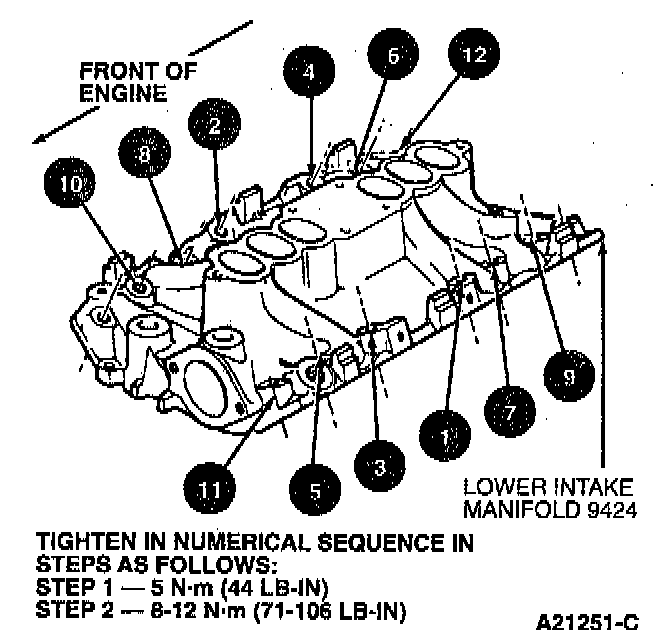

LOWER





Step 1 ... 5 Nm (71 inch lbs.)
Step 2 ... 8-12 Nm (106 inch lbs.)
