Wiper Control Module: Locations

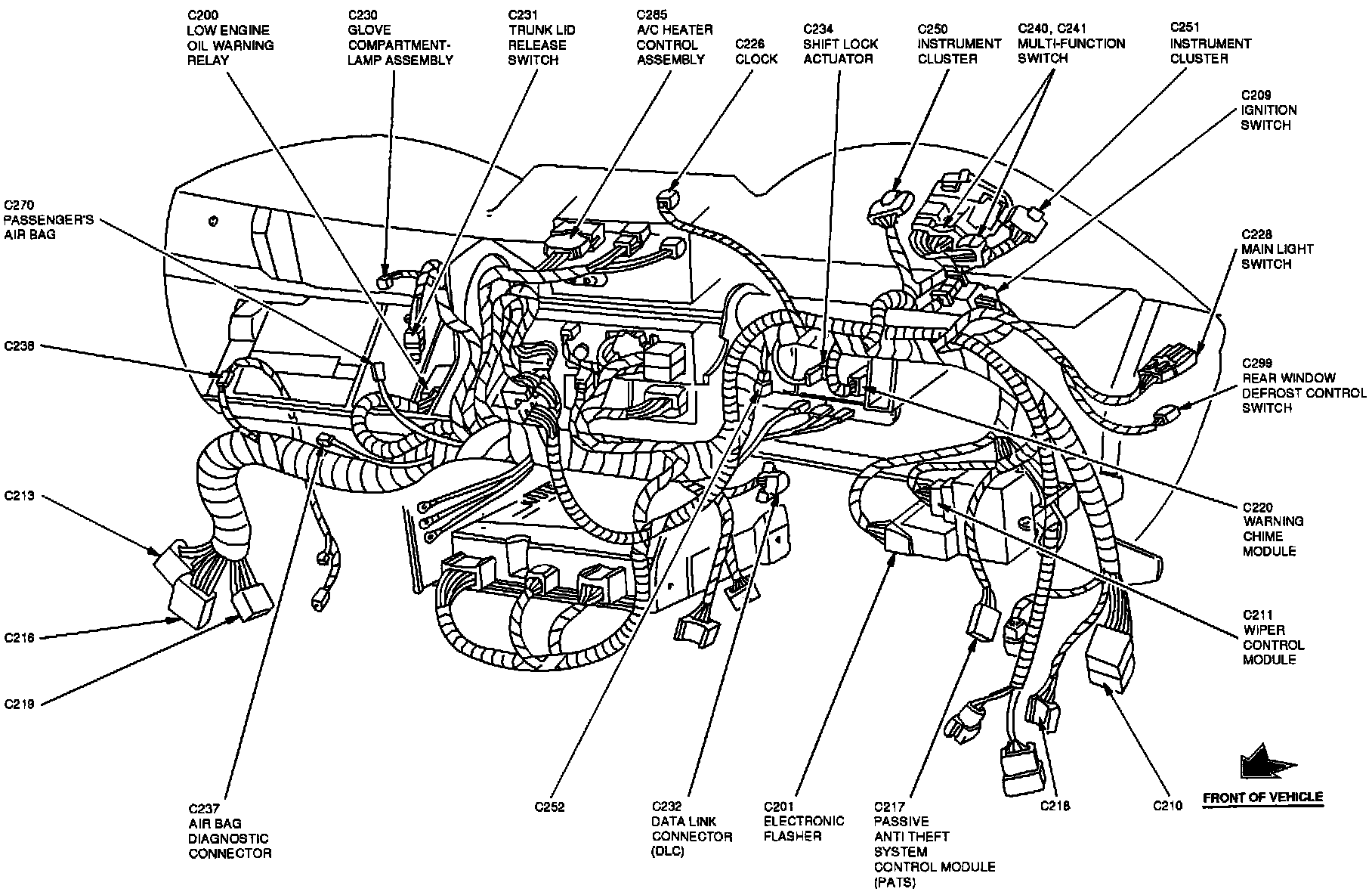

Instrument Panel View:





The Wiper Control Module is located behind instrument panel, near top of LH cowl panel.
