Passenger-Side Air Bag Module: Installation
WARNING: This page is about a different car, the 1997 Ford Probe. However, it is still accessible from the selected car via links, so may be relevant.

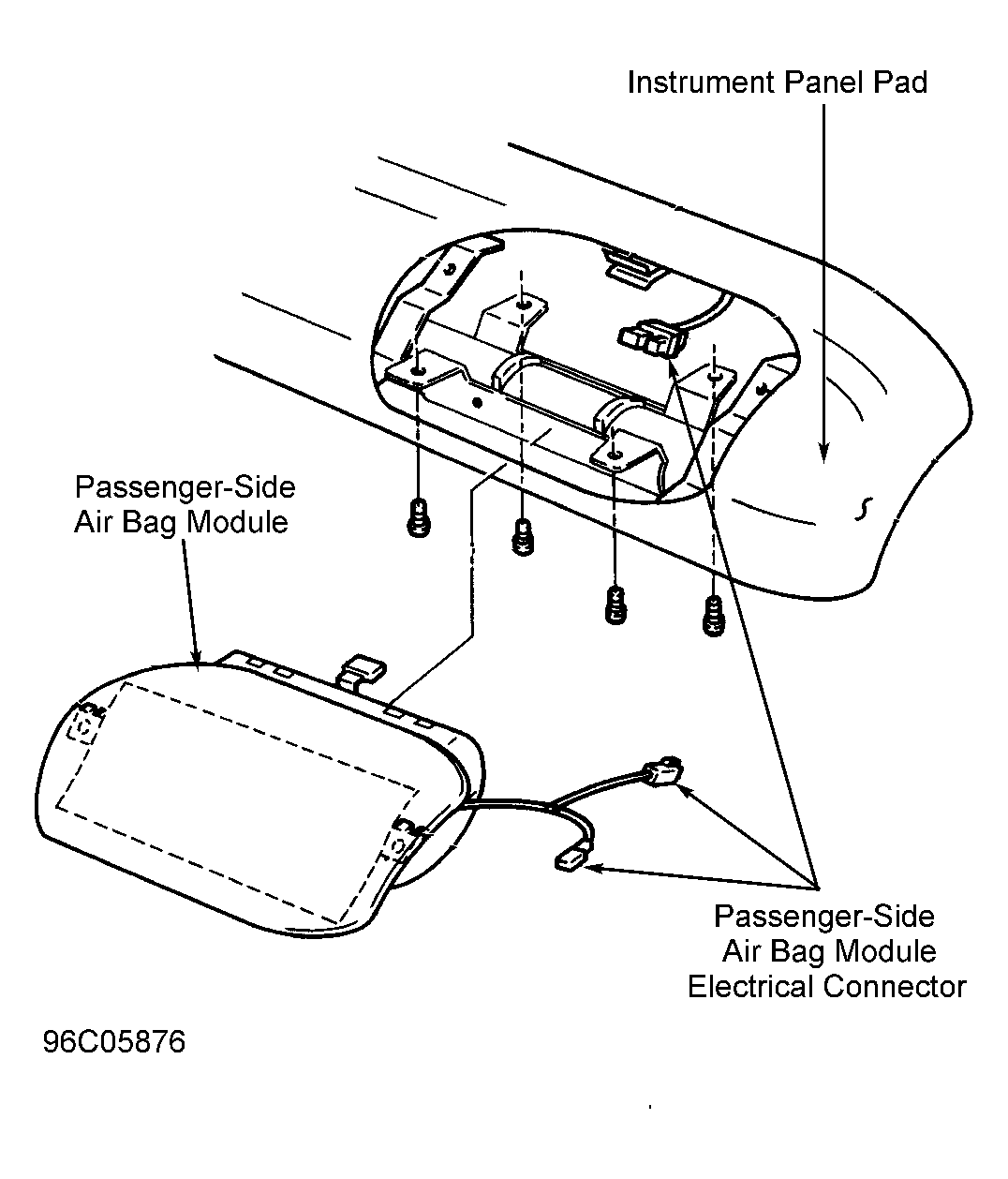

- Insert passenger-side air bag monitor into instrument panel. Ensure guide pins insert into guide holes and tab on air bag module must insert in instrument panel clip. Secure air bag module with four bolts and connect electrical connectors. Tighten bolts to specification. See TORQUE SPECIFICATIONS .
- Install upper cover and glove box. Connect two diagnostic module connectors. Activate SRS. Check AIR BAG warning light for proper system function. See SYSTEM OPERATION CHECK .
