Taurus V6-182 3.0L FF
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antitheft and Alarm Systems
>>
Passive Anti-Theft System Connectors
>>
Passive Anti-Theft System Module Connector
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

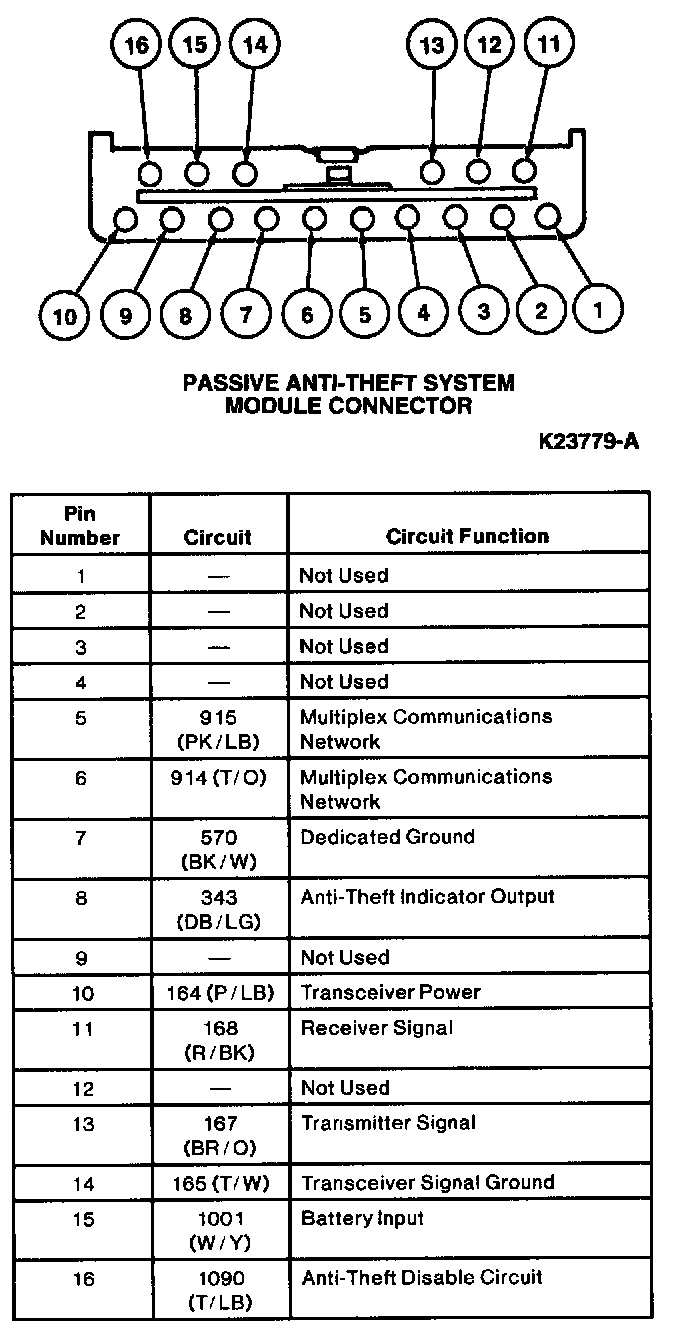

Passive Anti-Theft System Module Connector
