Steering Control Module

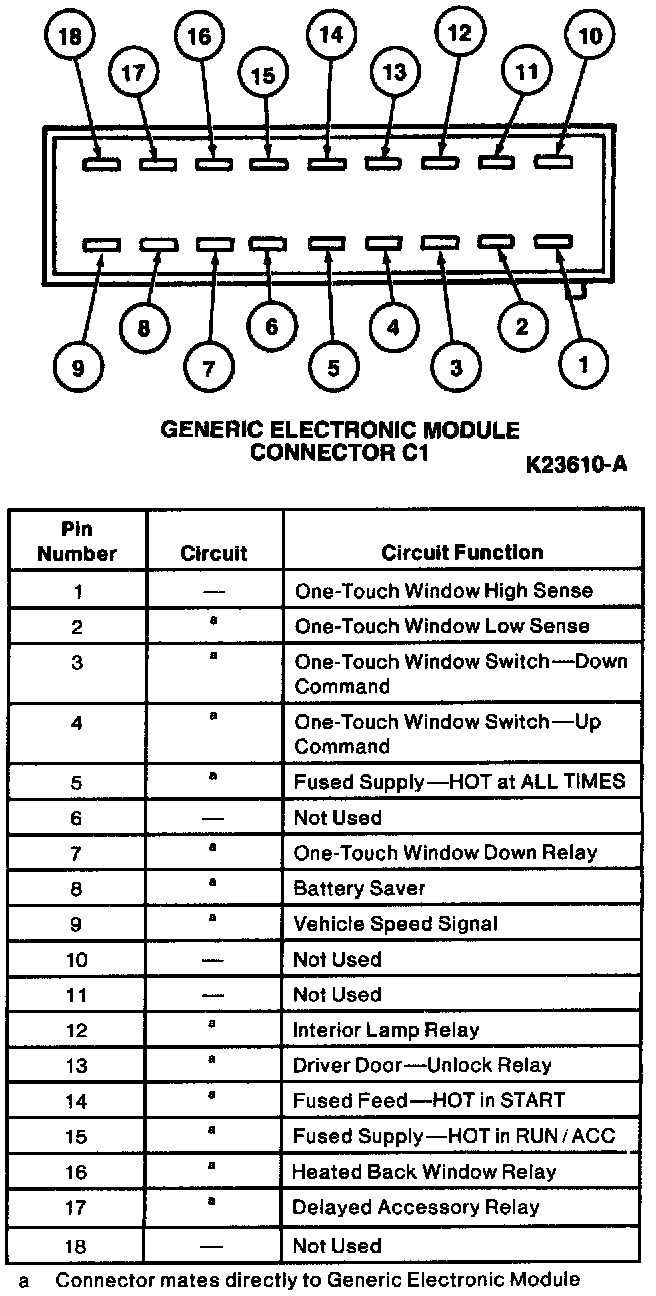

The Generic Electronic Module (GEM) Connector C1
(This is the male connector C201)

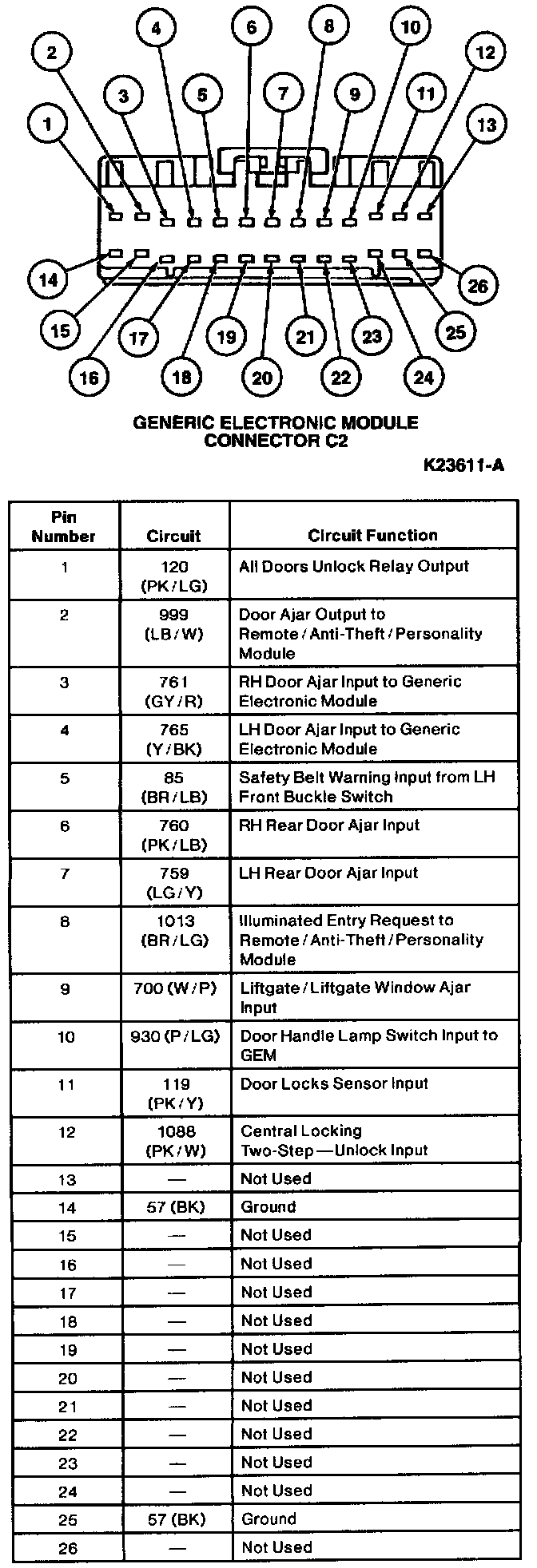

The Generic Electronic Module (GEM) Connector C2
(This is also referred to as C248)

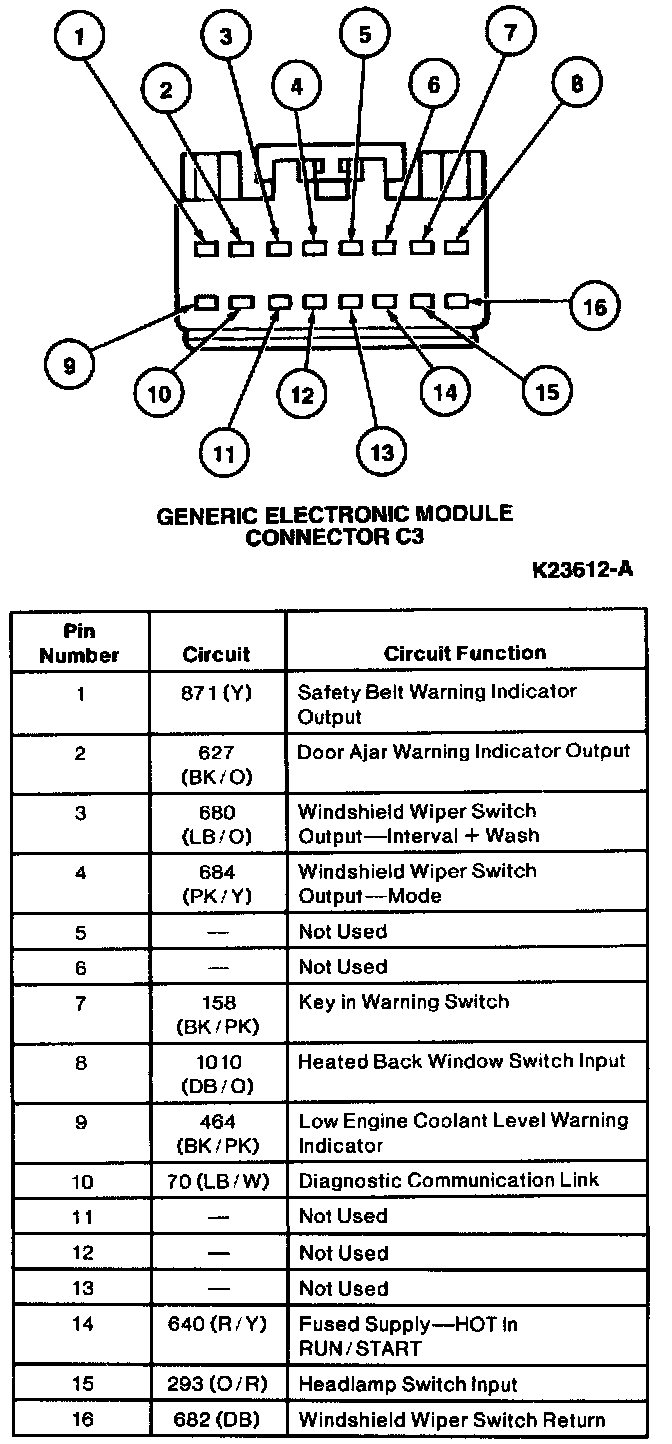

The Generic Electronic Module (GEM) Connector C3
(This is also referred to as C236)

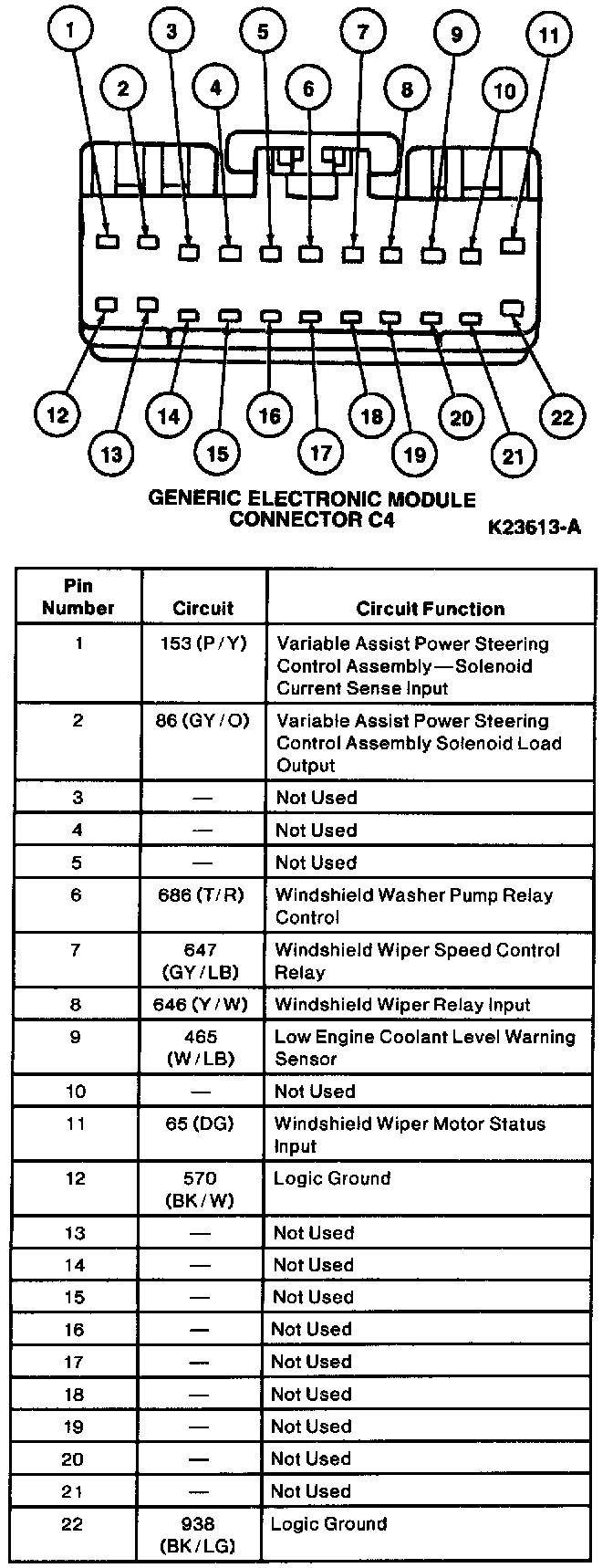

The Generic Electronic Module (GEM) Connector C4
(This is also referred to as C223)
