Integrated Control Relay Module: Locations

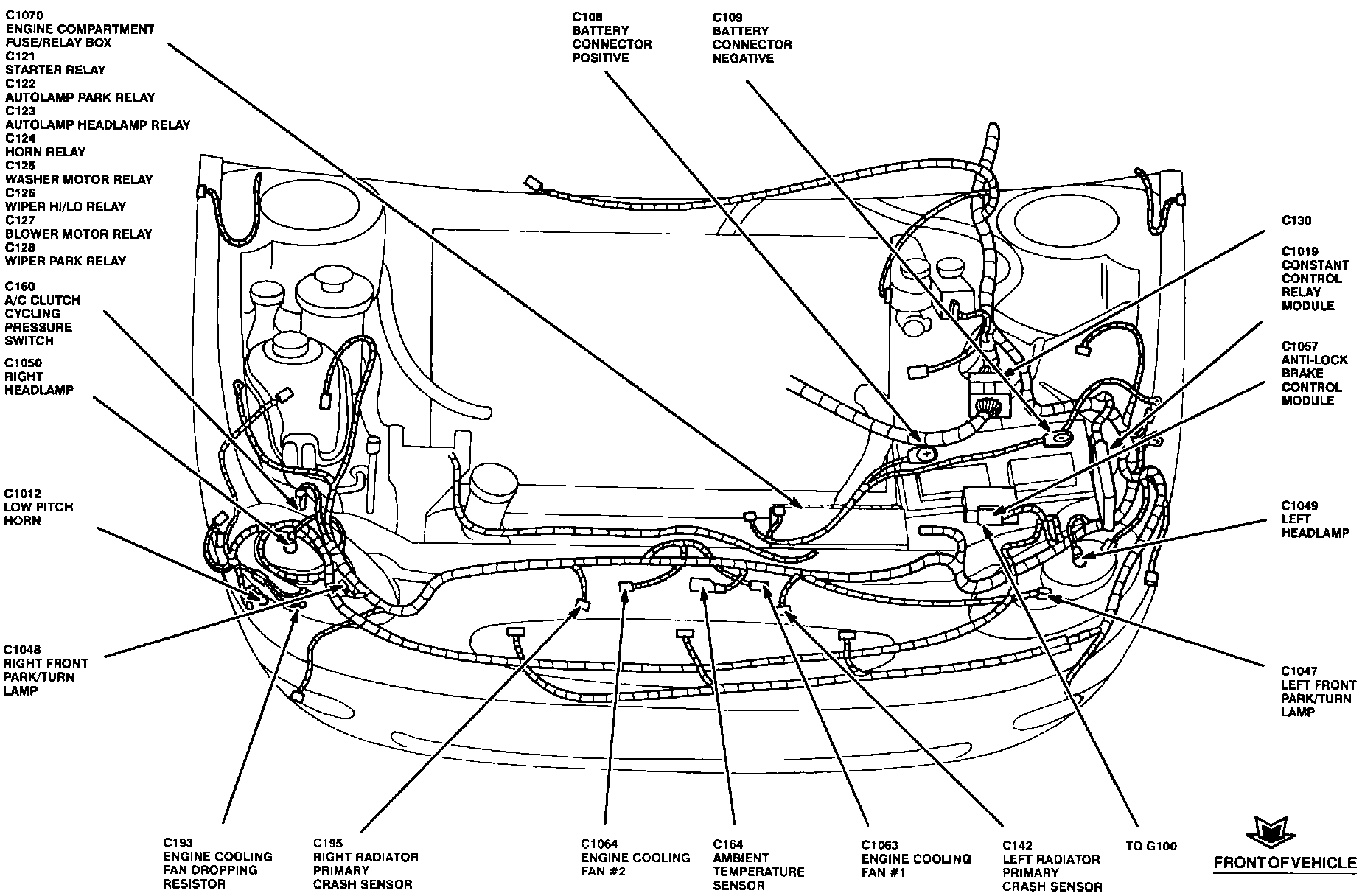

Engine Compartment View:










The Constant Control Relay Module is located on the left side of the battery, behind headlamp.
