Pinpoint Test Schematic

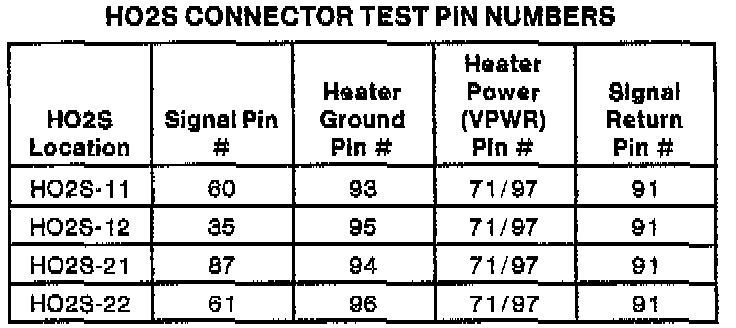

HO2S Connector Test Pin Numbers:

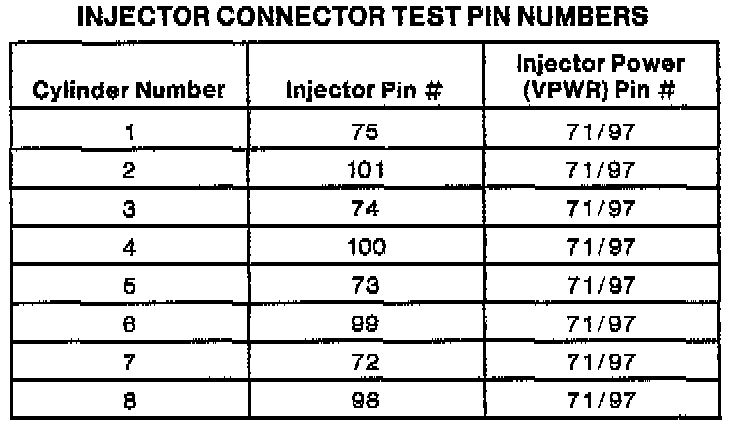

Injector Connector Test Pin Numbers:

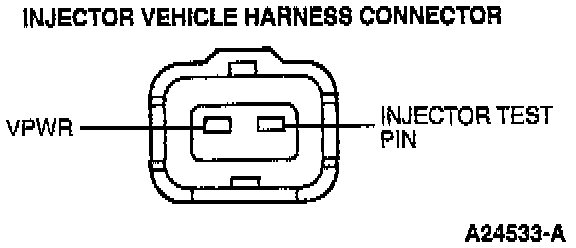

Injector Vehicle Harness Connector:
