Cruise Control Module: Locations

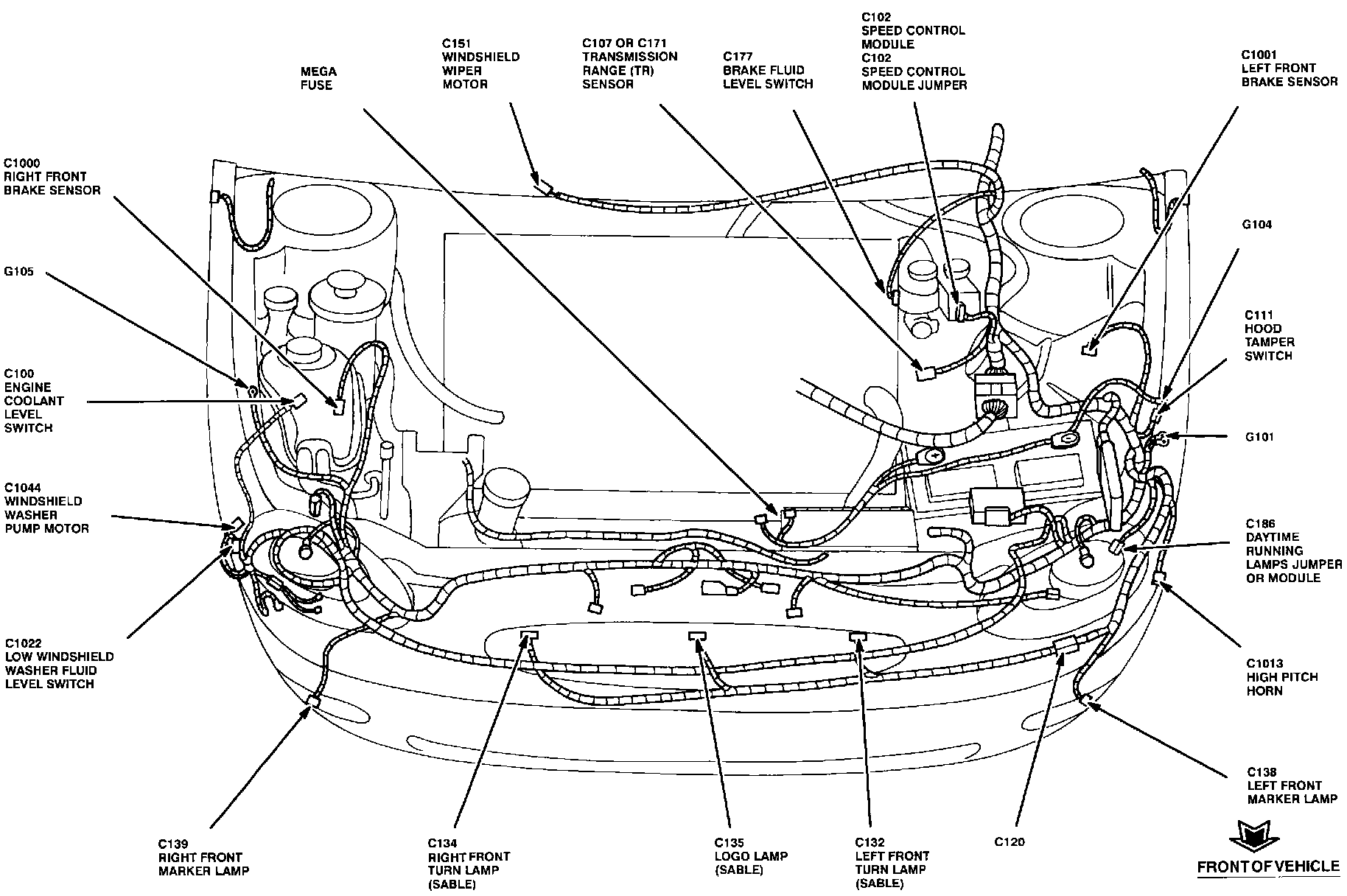

Engine Compartment View:





The Speed Control Module is mounted on the left front strut, to the left of the master cylinder.
