Amplifier, Sound System

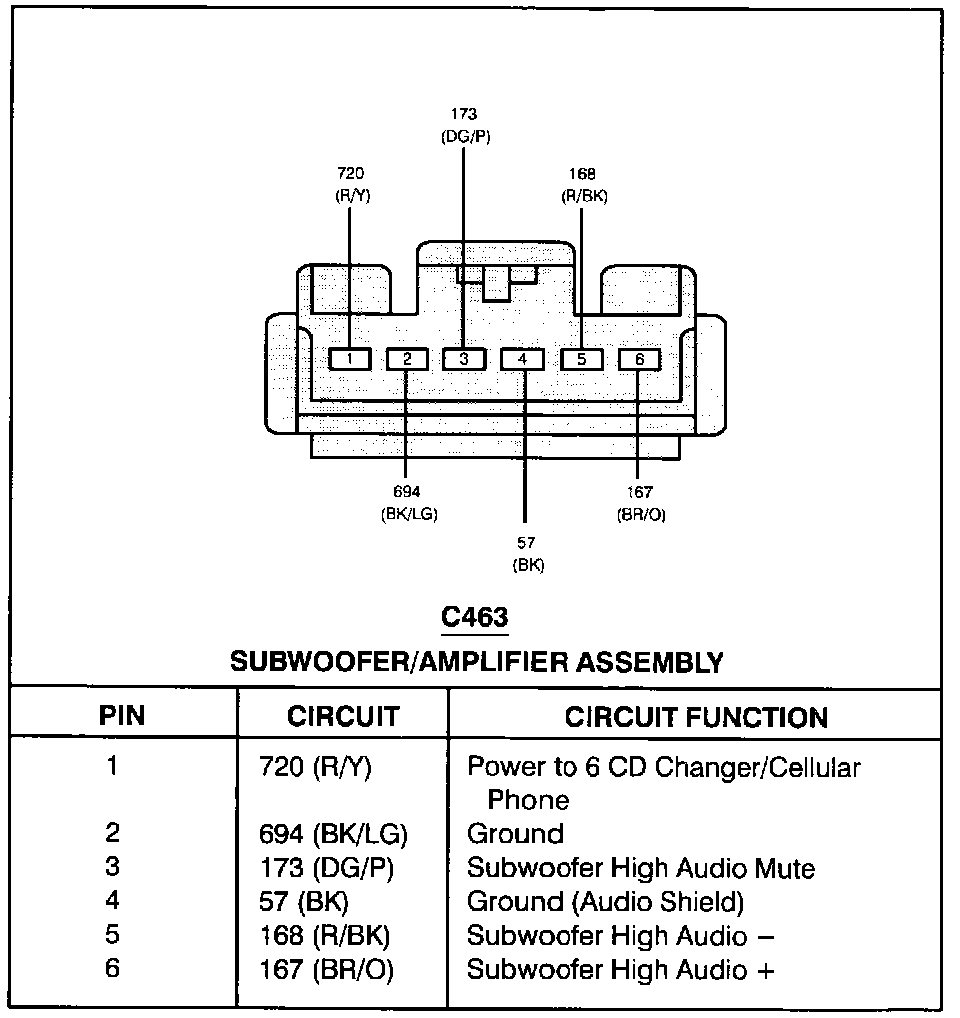

Subwoofer/amplifier Assembly:
Radio Amplifier Connector C1:
Radio Amplifier Connector C2:
