Solar Sensor: Service and Repair

REMOVAL

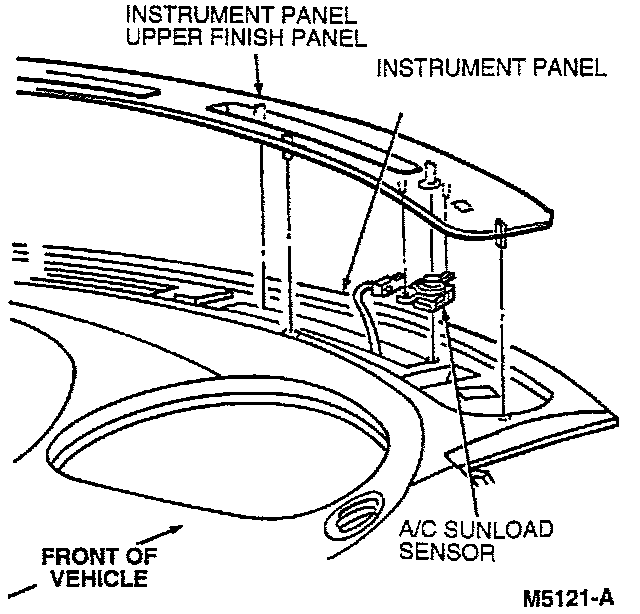

1. Lift the instrument panel upper finish panel from the instrument panel.
2. Disconnect the wiring harness connector from the A/C sunload sensor.
3. Pull the A/C sunload sensor from the studs on the instrument panel upper finish panel.

INSTALLATION
1. Push the A/C sunload sensor onto the studs on the instrument panel upper finish panel.
2. Connect the wiring harness connector to the A/C sunload sensor.
3. Install the instrument panel upper finish panel to the instrument panel.
