Data Link Connector: Description and Operation

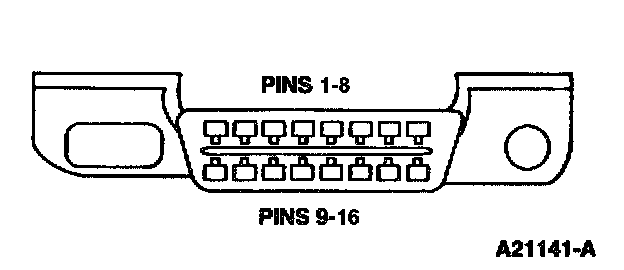

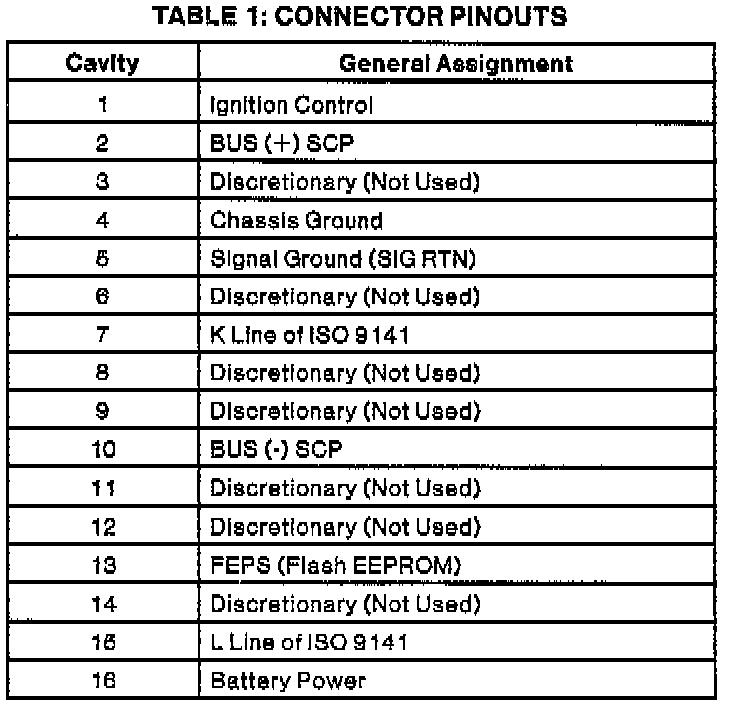

OBD II Data Link Connector (View From Vehicle Side):

DESCRIPTION
The OBD II Data Link Connector (DLC) is rectangular in design and capable of accommodating up to 16 terminals. The connector has keying features to allow easy connection. The vehicle connector and the test equipment connector have latching features that ensure the test equipment connector will remain mated when properly connected.
