Data Link Connector: Locations

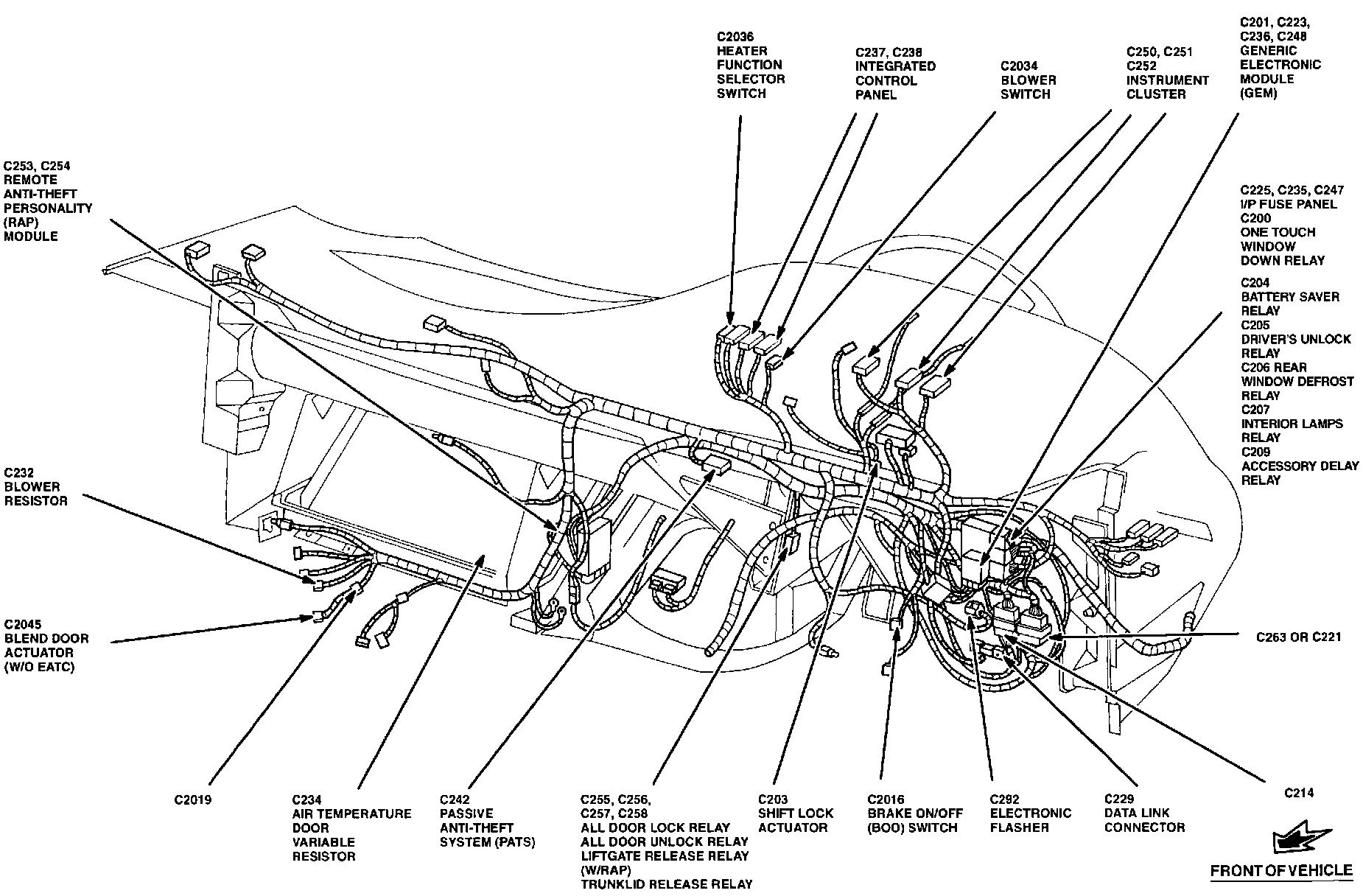

Instrument Panel View:





The Data Link Connector is mounted on the instrument panel, below steering column.
