Test Notes

You should enter this Pinpoint Test only when directed here.

This Pinpoint Test is intended to diagnose the following:
- Ignition System
- Fuel Injectors
- Fuel Pressure
- Vacuum System
- Evaporative Emission (EVAP) System
- EVAP Canister Purge Solenoid
- Base Engine

DESCRIPTION
For additional information on the Misfire Detection Monitor, refer to Description and Operation / On Board Diagnostics II System Monitors.

RELATED COMPONENTS

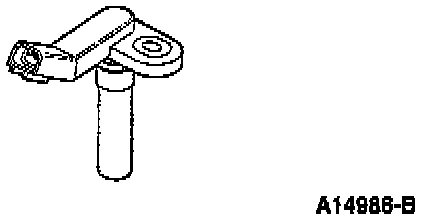

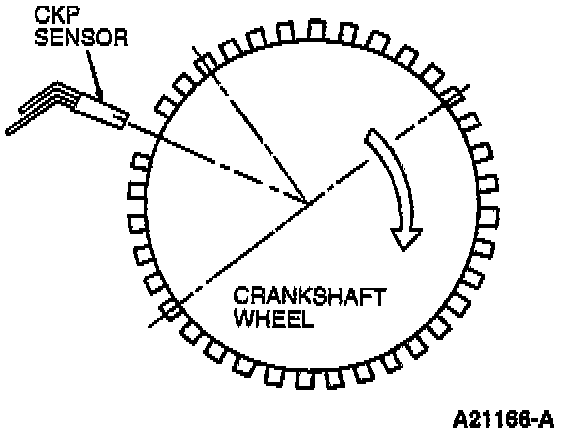

1. Crankshaft Position (CKP) Sensor (Variable Resistance)

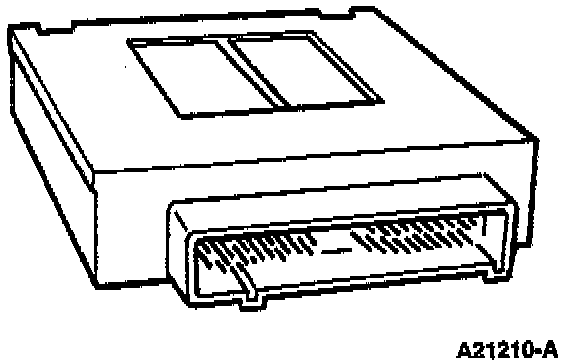

2. Powertrain Control Module (PCM)

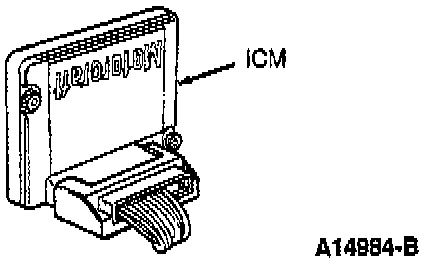

3. Ignition Control Module (ICM)
