Trouble Code Descriptions

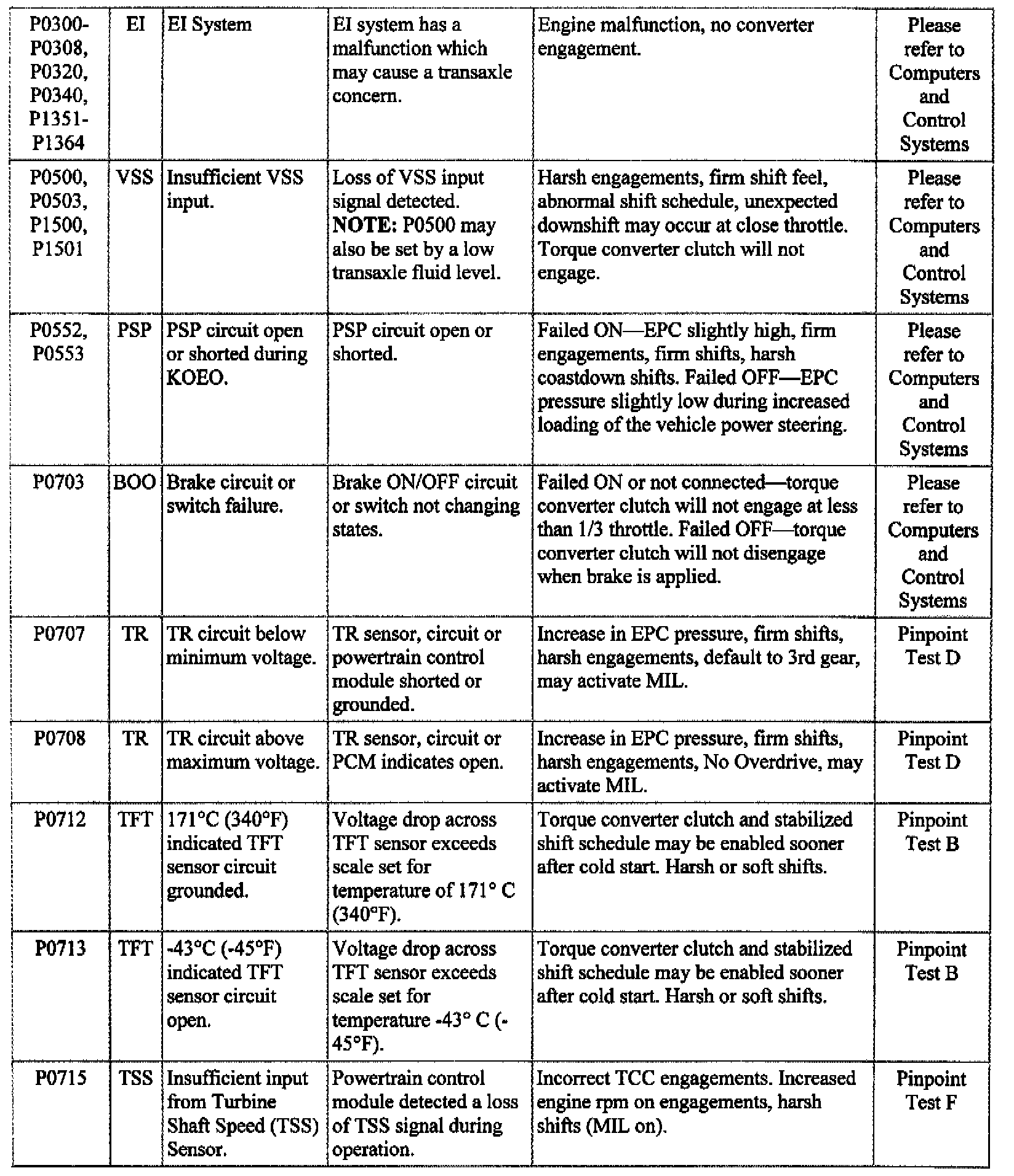

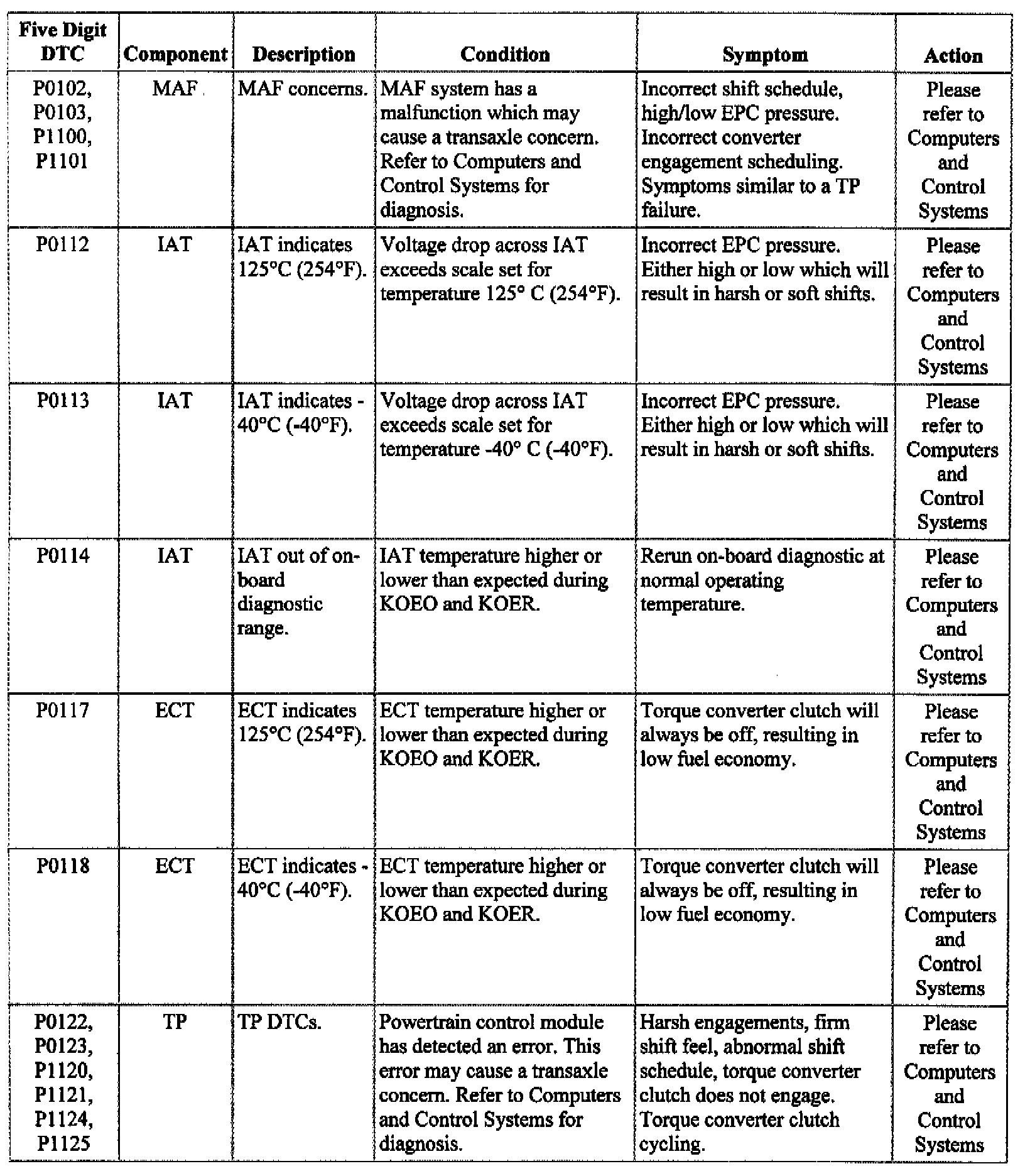

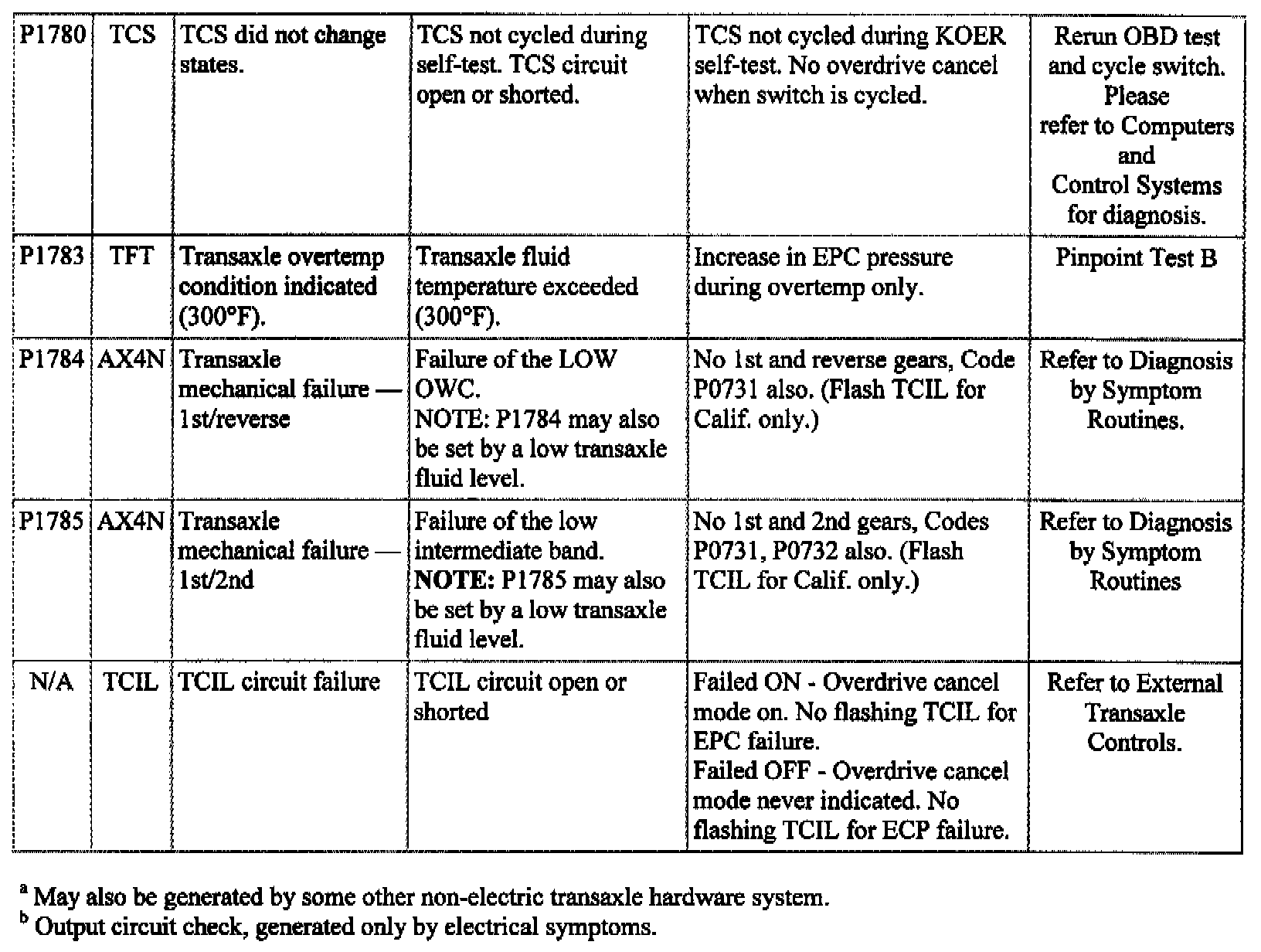

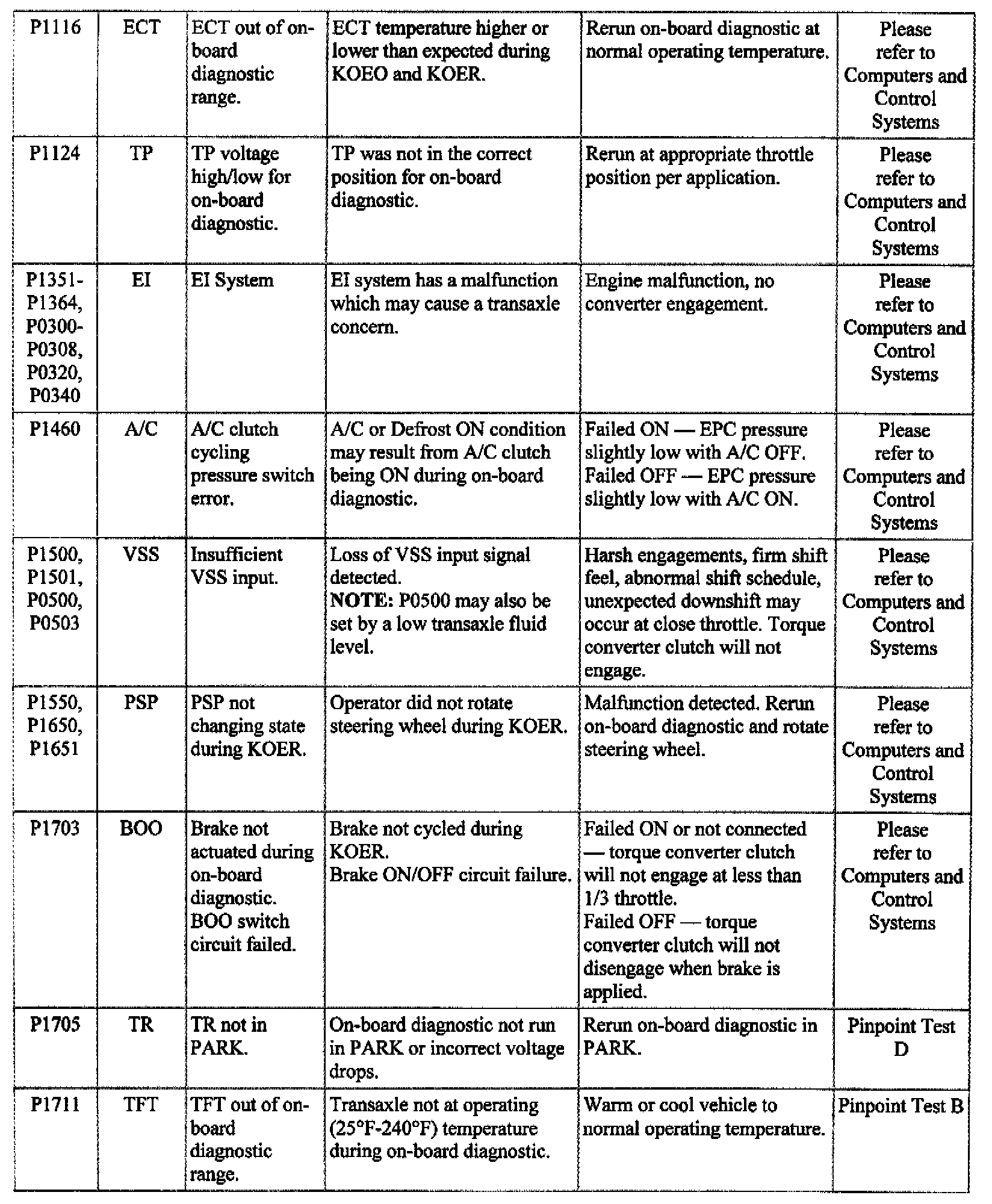

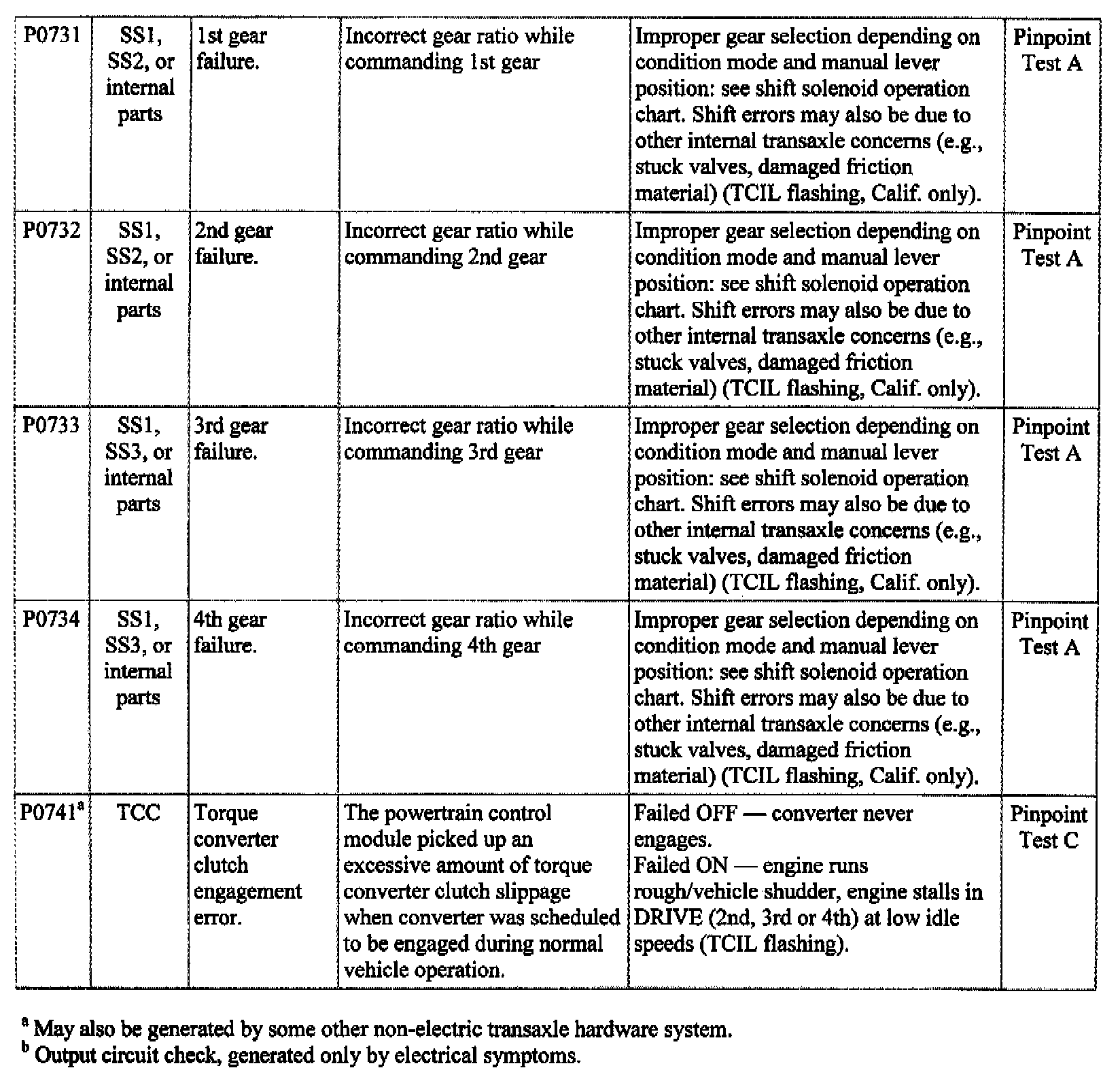

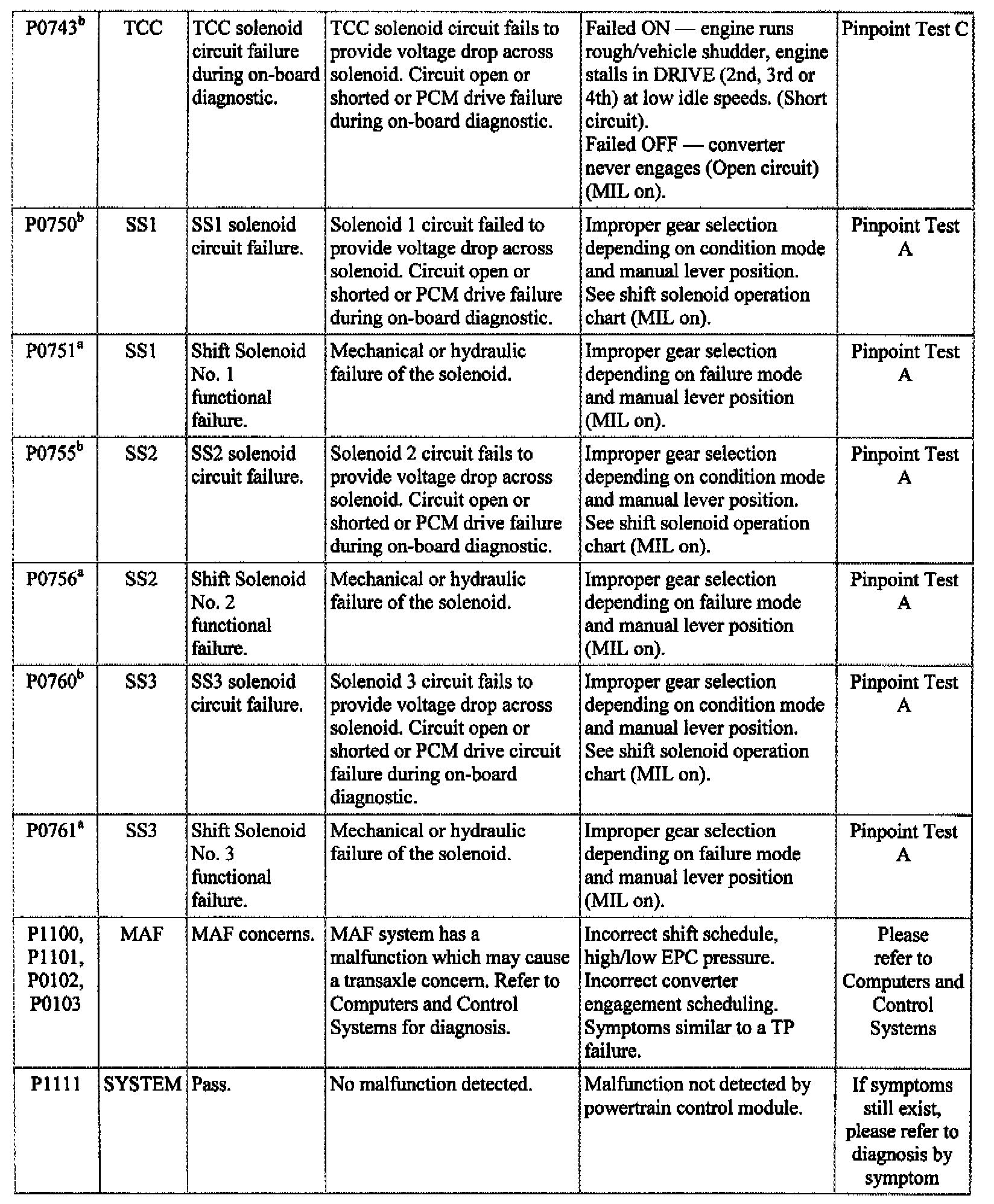

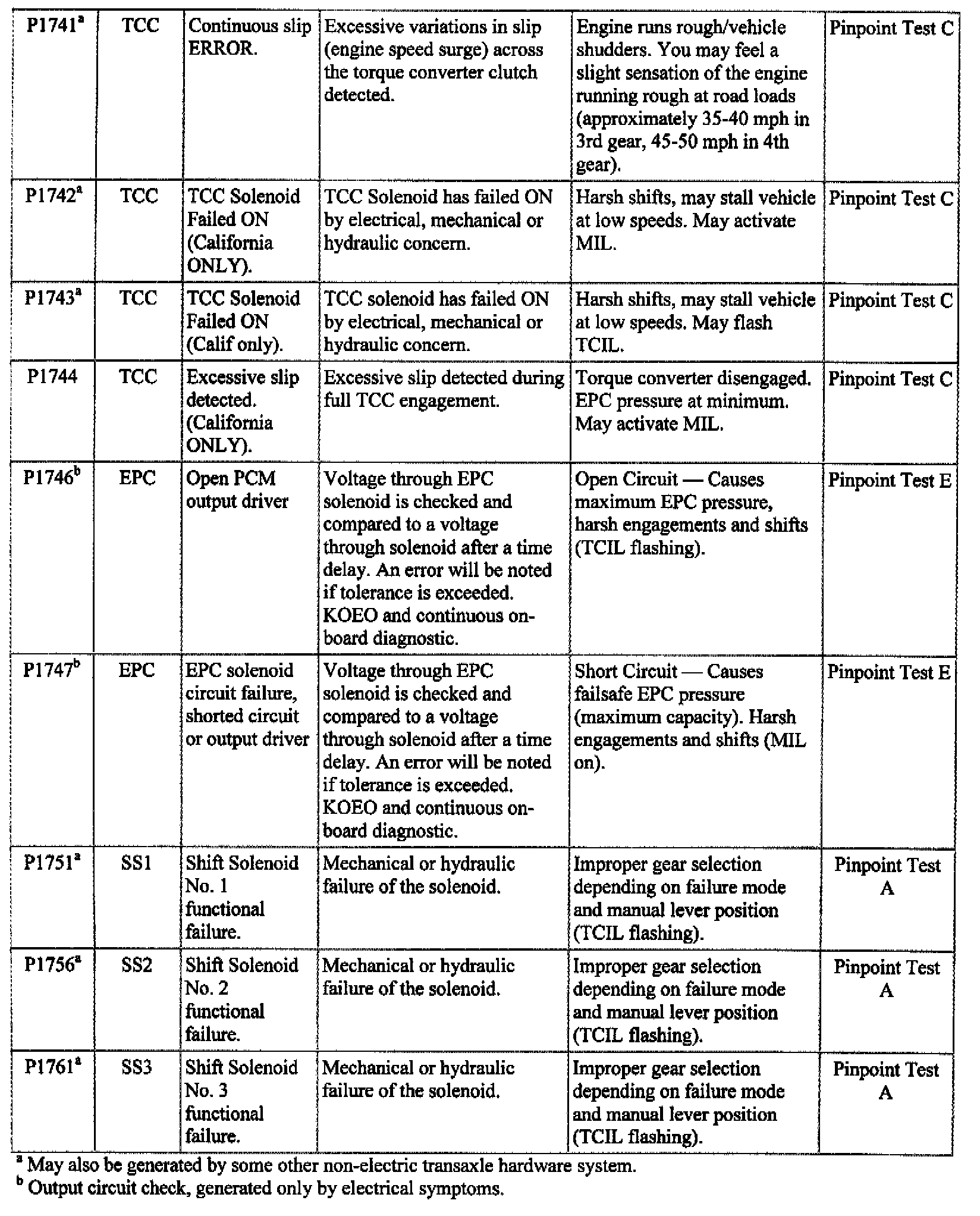

On-Board Diagnostic Trouble Code Description Chart, (Part 1 Of 7):





On-Board Diagnostic Trouble Code Description Chart, (Part 2 Of 7):





On-Board Diagnostic Trouble Code Description Chart, (Part 3 Of 7):





On-Board Diagnostic Trouble Code Description Chart, (Part 4 Of 7):





On-Board Diagnostic Trouble Code Description Chart, (Part 5 Of 7):





On-Board Diagnostic Trouble Code Description Chart, (Part 6 Of 7):





On-Board Diagnostic Trouble Code Description Chart, (Part 7 Of 7):
