AX4N

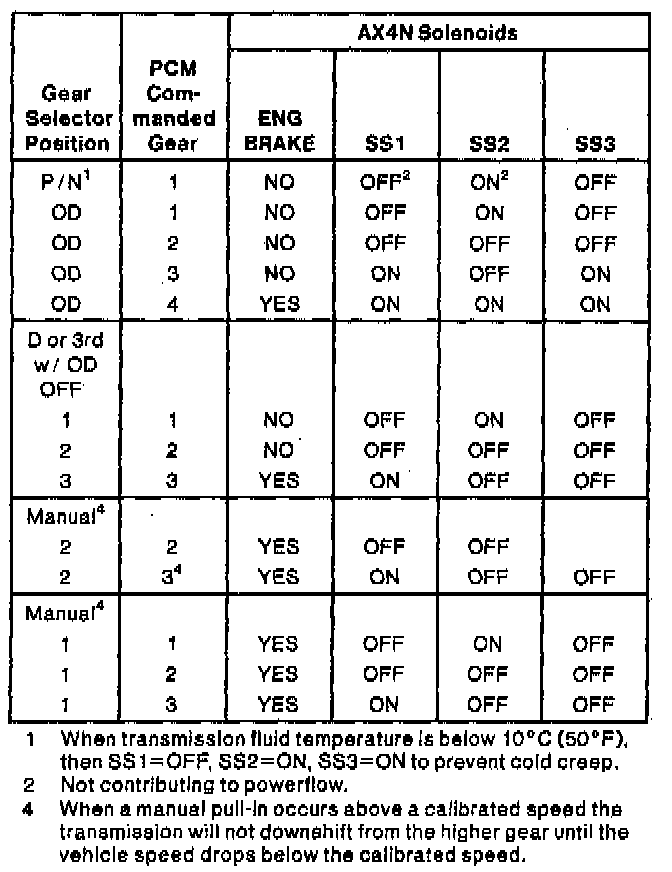

Solenoid Application Chart:

SHIFT SOLENOID FAILURE MODE CHARTS

Shift Solenoid Failure "Always OFF"

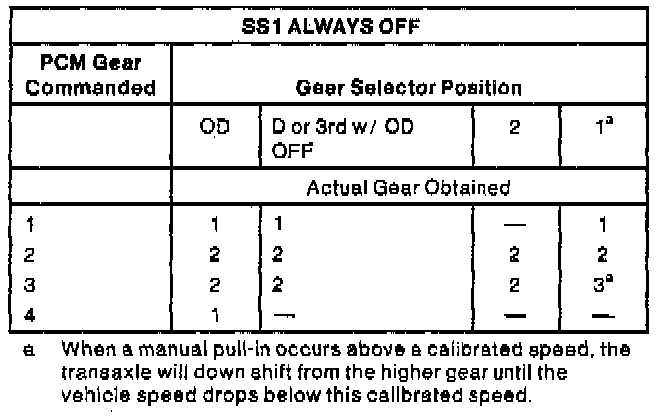

SS1 Always Off:

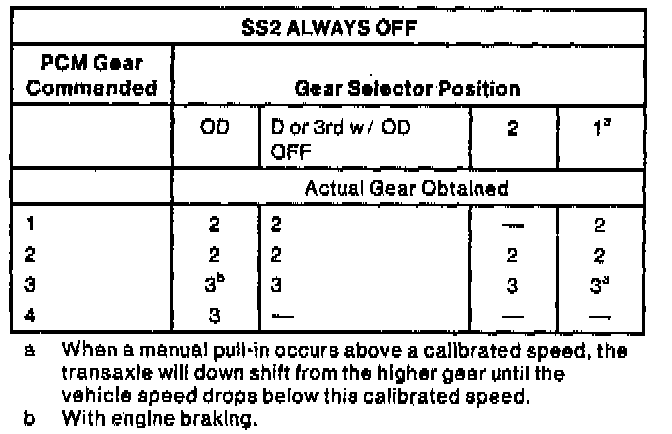

SS2 Always Off:

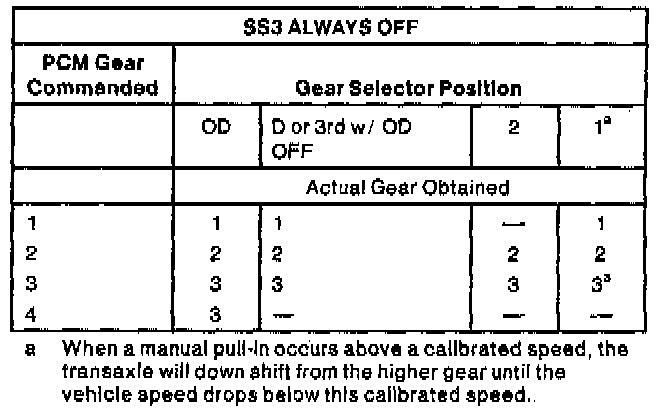

SS3 Always Off:

Failed OFF due to powertrain Control Module and/or vehicle wiring concerns, and/or solenoid electrically stuck off and/or hydraulically stuck OFF.

Shift Solenoid Failure "Always ON"

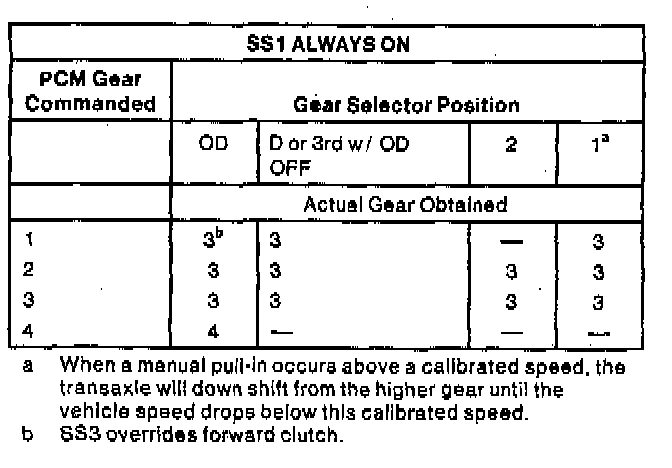

SS1 Always On:

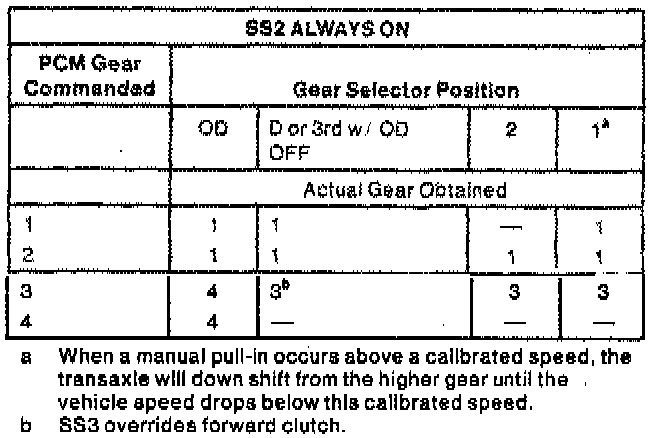

SS2 Always On:

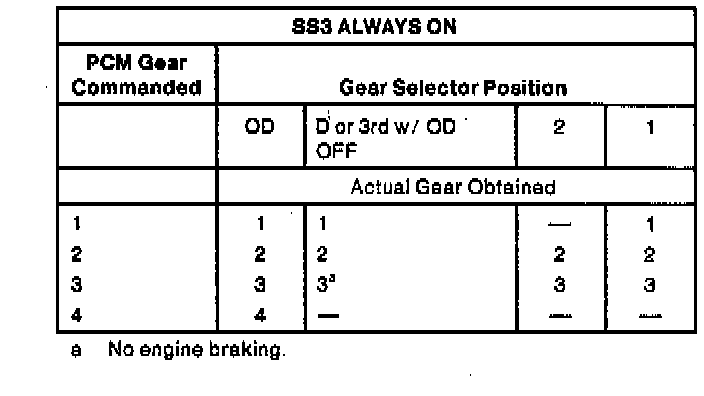

SS3 Always On:

Failed ON due to powertrain Control Module and/or vehicle wiring concerns; and/or solenoid electrically stuck off and/or hydraulically stuck ON.
