Test L : Keyless Entry Keypad Does Not Work Properly

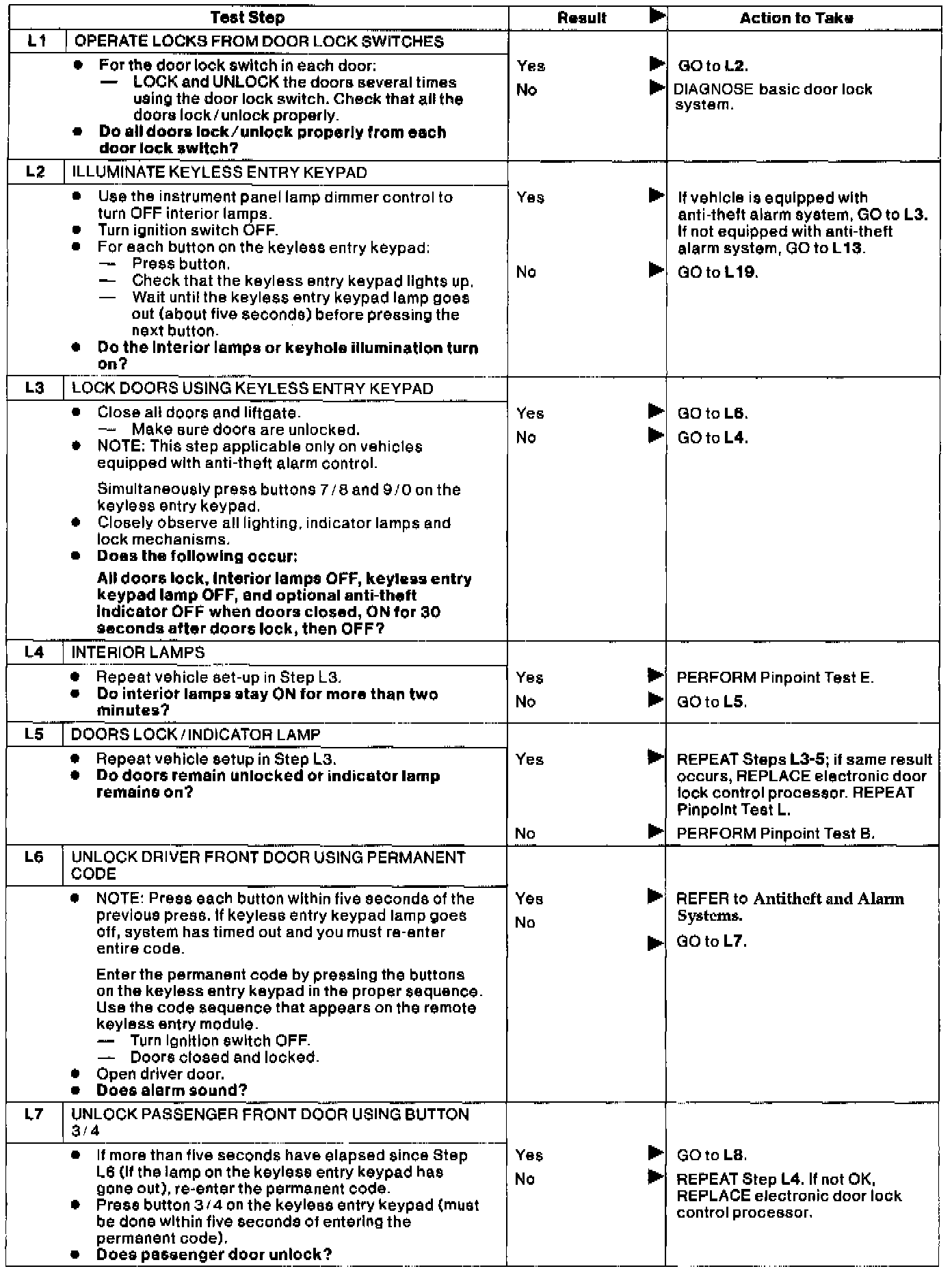

L1 - L7:

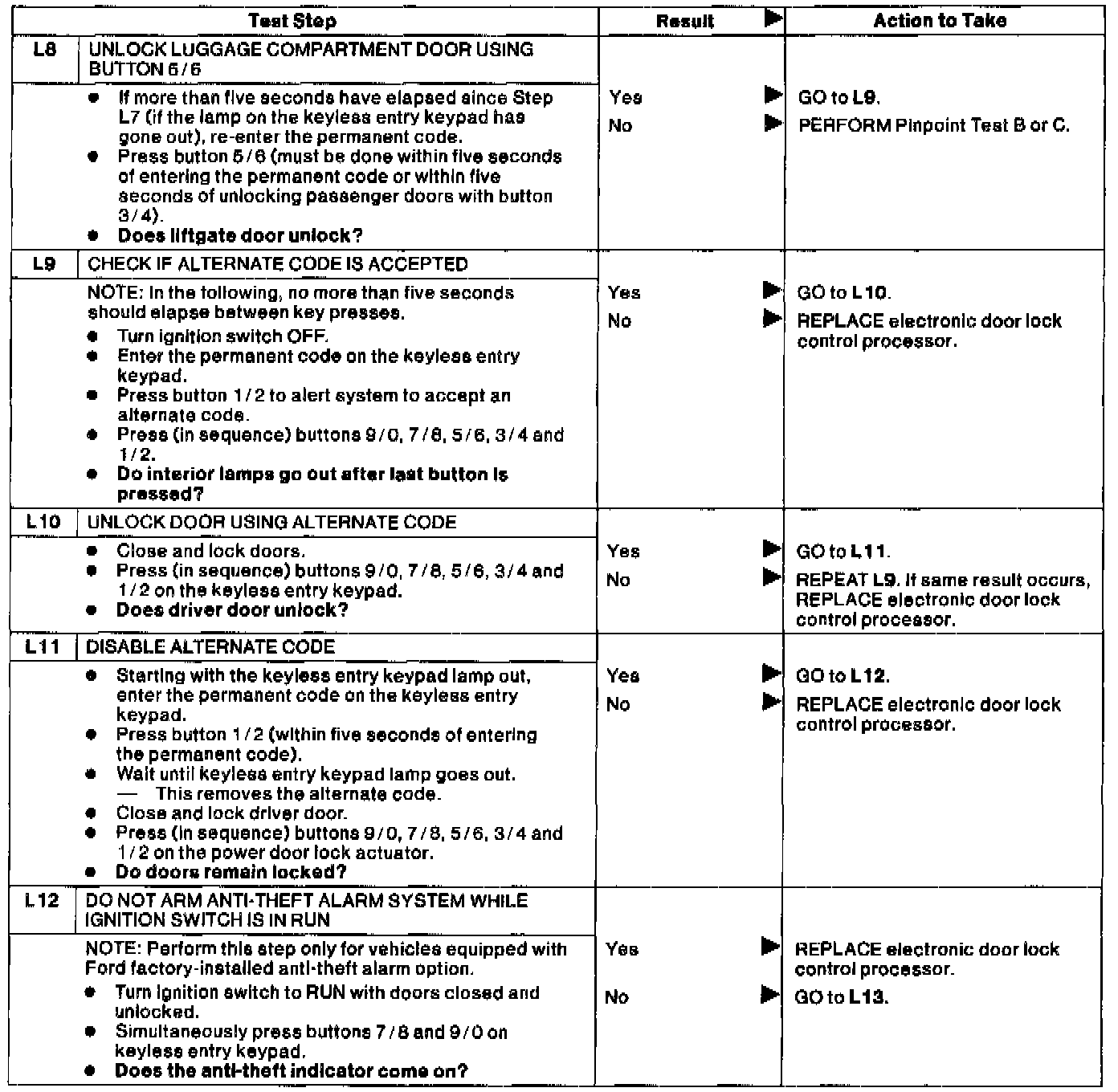

L8 - L12:

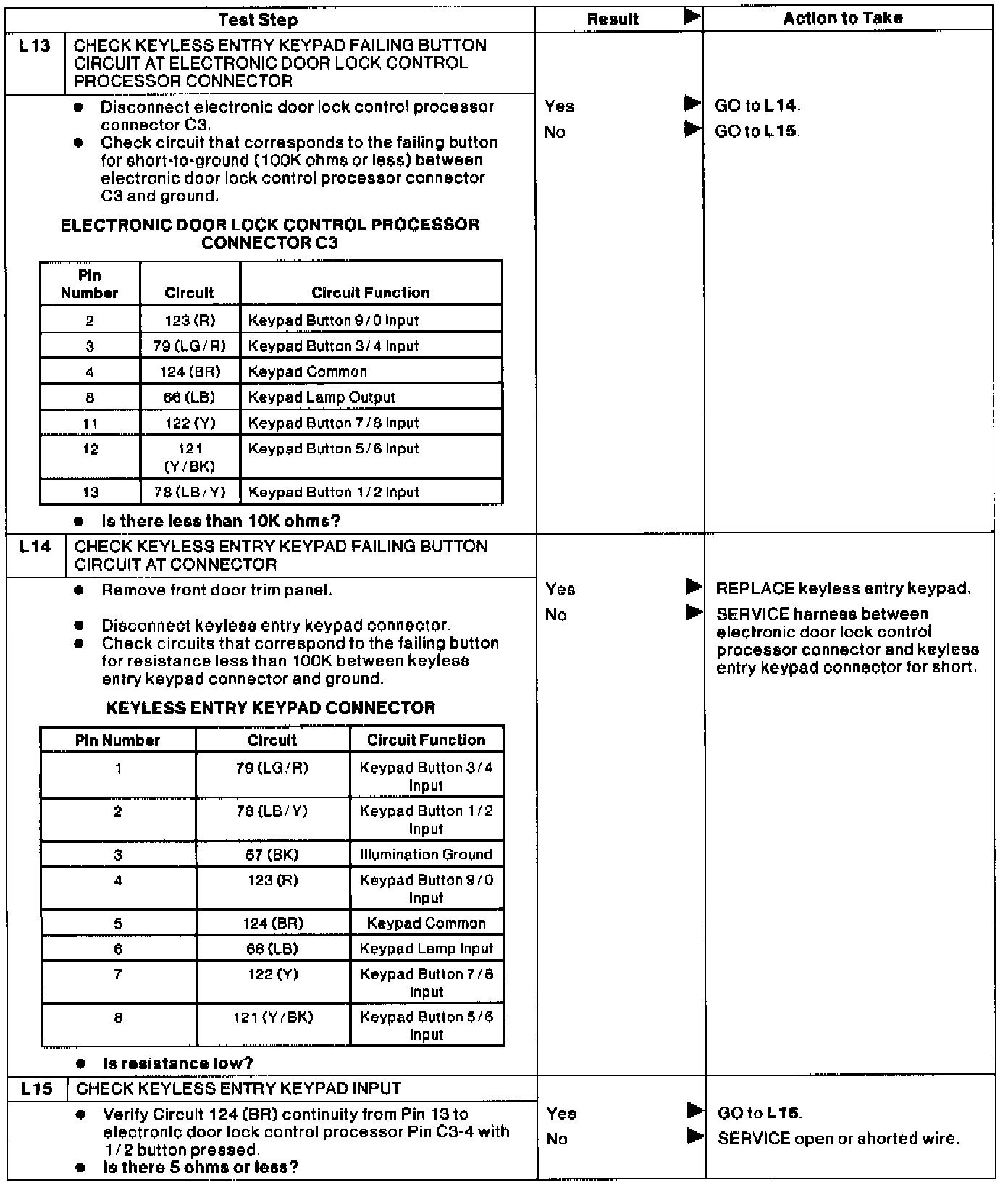

L13 - L15:

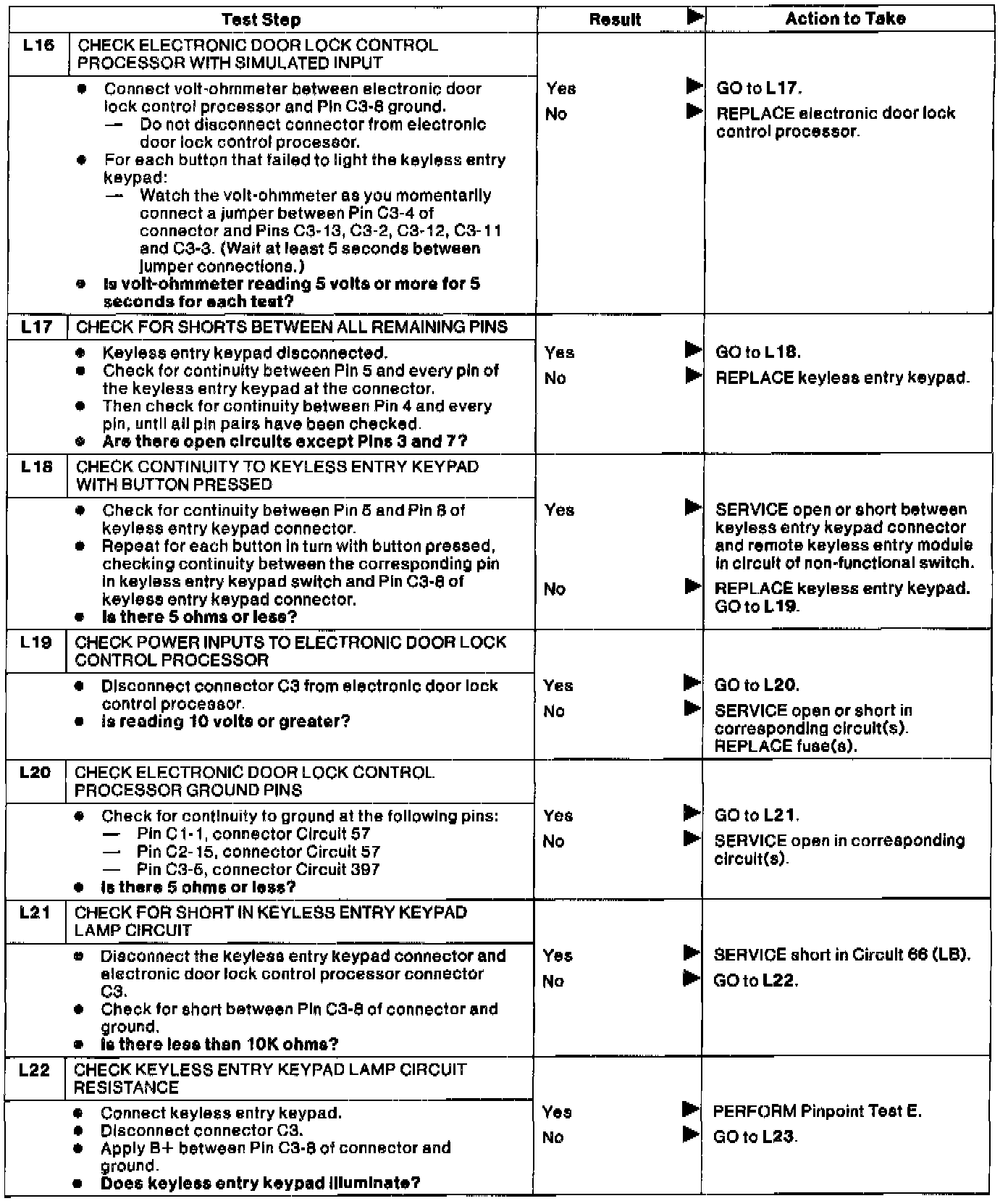

L15 - L22:

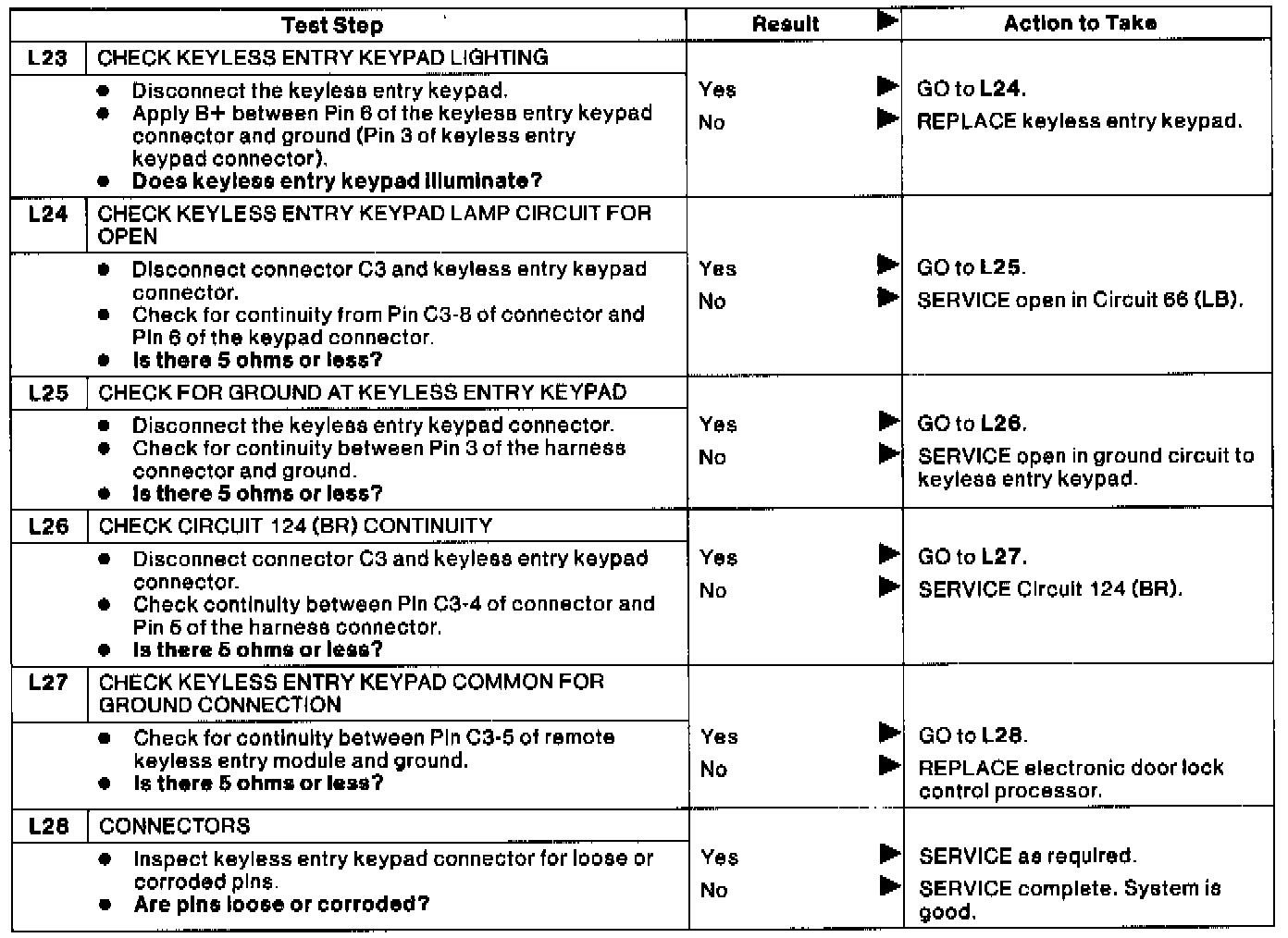

L23 - L28:
