Anti-Lock Brake Control Module Connector

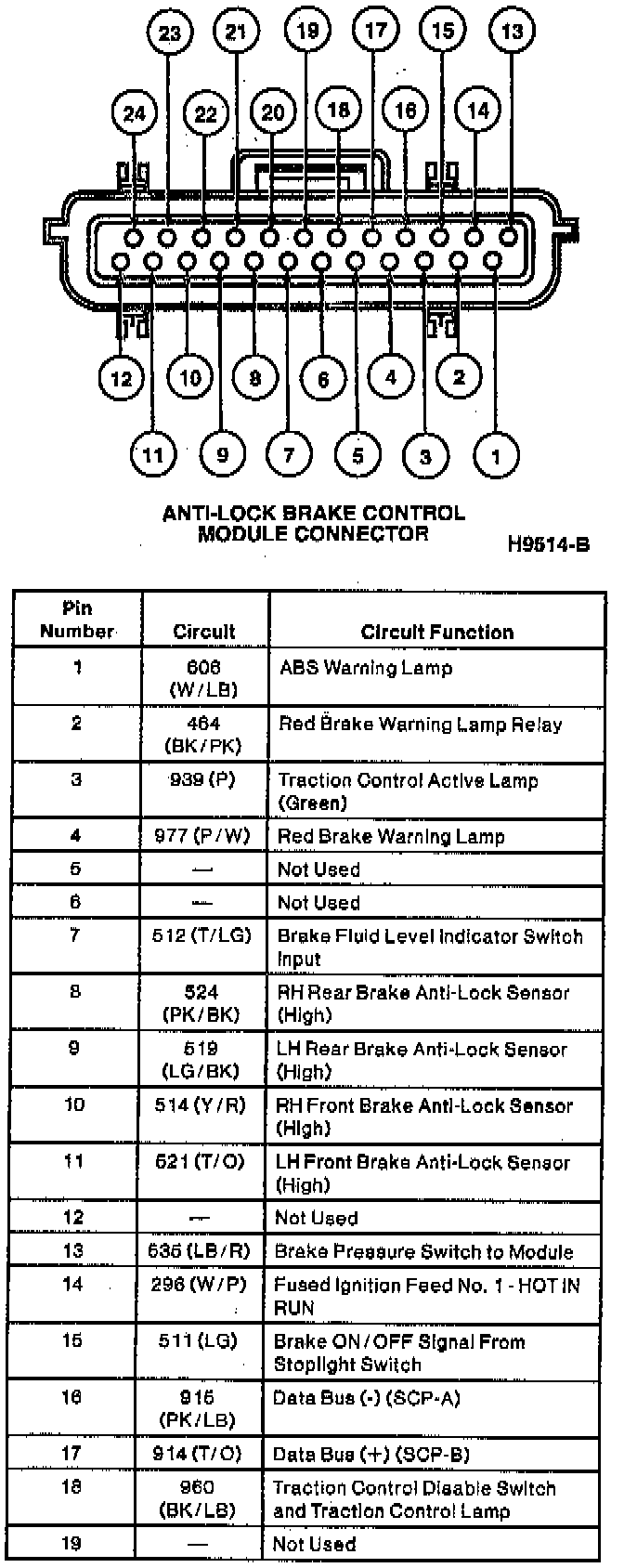

Anti-Lock Brake Control Module Connector (Part 1 Of 2):

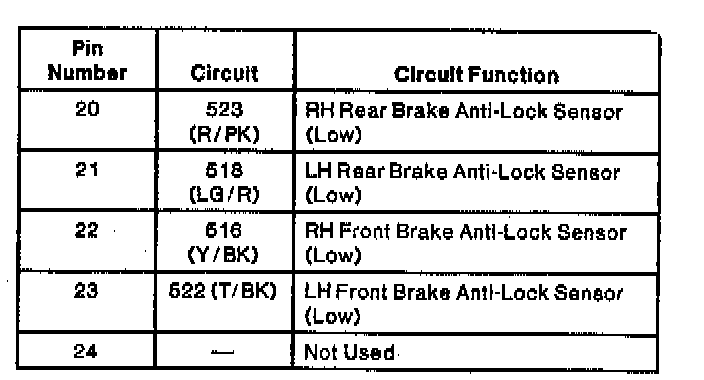

Anti-Lock Brake Control Module Connector (Part 2 Of 2):
